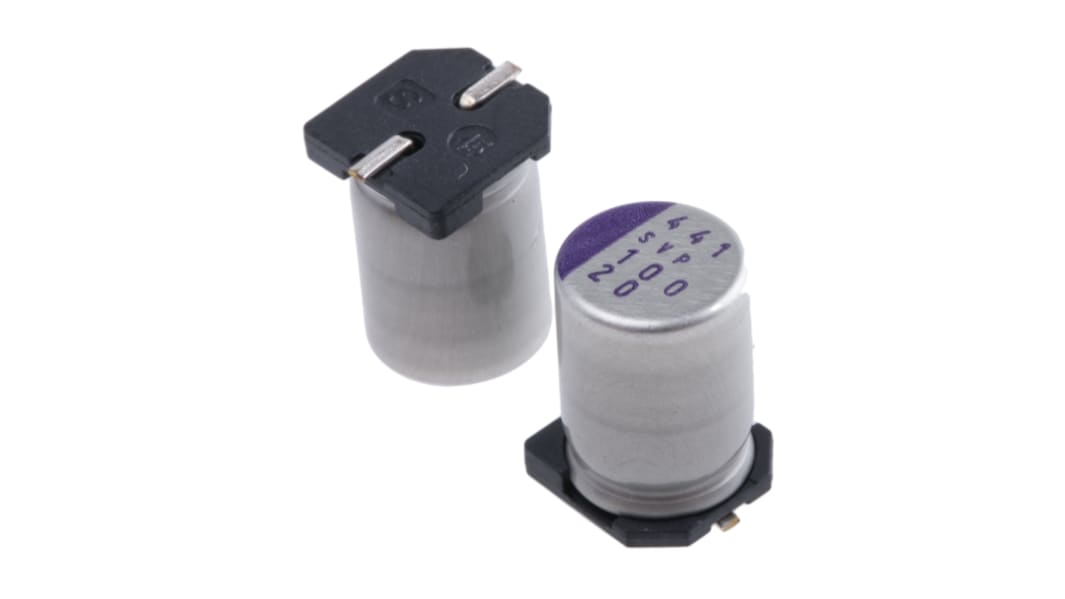

Panasonic 100 μF Surface Mount Polymer Capacitor, 20V dc
- RS stock no.:
- 788-7554
- Distrelec Article No.:
- 304-36-490
- Mfr. Part No.:
- 20SVP100M
- Manufacturer:
- Panasonic
Image representative of range
Bulk discount available
Subtotal (1 pack of 2 units)*
R 72,12
(exc. VAT)
R 82,94
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 70 unit(s) shipping from 27 April 2026
- Plus 180 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 48 | R 36.06 | R 72.12 |
| 50 - 98 | R 35.16 | R 70.32 |
| 100 - 198 | R 34.105 | R 68.21 |
| 200 - 398 | R 32.74 | R 65.48 |
| 400 + | R 31.43 | R 62.86 |
*price indicative
- RS stock no.:
- 788-7554
- Distrelec Article No.:
- 304-36-490
- Mfr. Part No.:
- 20SVP100M
- Manufacturer:
- Panasonic
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Panasonic | |
| Product Type | Polymer Capacitor | |
| Technology | Polymer | |
| Capacitance | 100μF | |
| Voltage | 20V dc | |
| Mount Type | Surface Mount | |
| Package/Case | 400 | |
| Polarity | Polar | |
| Lead Pitch | 3.2mm | |
| Tolerance | ±20 % | |
| Maximum Operating Temperature | 105°C | |
| Dimensions | 8 (Dia) x 11.9 mm | |
| Series | SVP | |
| Depth | 8.3mm | |
| Height | 11.9mm | |
| Length | 11.9mm | |
| Electrolyte Type | Solid | |
| Lifetime | 2000 h | |
| Diameter | 8mm | |
| Automotive Standard | No | |
| Dissipation Factor | 15% | |
| Leakage Current | 400μA | |
| Ripple Current | 3320mA | |
| Minimum Operating Temperature | -55°C | |
| Select all | ||
|---|---|---|
Brand Panasonic | ||
Product Type Polymer Capacitor | ||
Technology Polymer | ||
Capacitance 100μF | ||
Voltage 20V dc | ||
Mount Type Surface Mount | ||
Package/Case 400 | ||
Polarity Polar | ||
Lead Pitch 3.2mm | ||
Tolerance ±20 % | ||
Maximum Operating Temperature 105°C | ||
Dimensions 8 (Dia) x 11.9 mm | ||
Series SVP | ||
Depth 8.3mm | ||
Height 11.9mm | ||
Length 11.9mm | ||
Electrolyte Type Solid | ||
Lifetime 2000 h | ||
Diameter 8mm | ||
Automotive Standard No | ||
Dissipation Factor 15% | ||
Leakage Current 400μA | ||
Ripple Current 3320mA | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- JP
OSCON Solid Electrolytic SVP series
Panasonic OS-CON SVP electrolytic capacitors feature a solid, aluminium construction with a high conductive polymer.
Surface mount
2000 h guarantee at +105°C
Excellent noise reduction capability
Long life span
High voltage
High reliability
Low ESR and high ripple current
Halogen free
Wealth models
Applications
These aluminium capacitors are recommended for use in industrial infrastructure in industrial PCs, motor drivers, measuring instruments, power supplies, security cameras and inverters. Suitable uses for these electrolytic capacitors include infotainment and comfort accessories within automotive applications and ICT applications such as PCs, base stations, SSD and data centres. SVP series aluminium capacitors are also suitable for home appliances such as Air conditioners and home information appliances.
