Festo VPPM-6L-L-1-G18-0L6H-V1P-S1 Series Pneumatic Regulator G 1/8 G G

View this category

Subtotal (1 unit)*

R 13 851,89

(exc. VAT)

R 15 929,67

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 13,851.89

*price indicative

RS stock no.:
202-2126
Mfr. Part No.:
VPPM-6L-L-1-G18-0L6H-V1P-S1
Manufacturer:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Product Type

Pneumatic Regulator

Inlet Connection Type

Pneumatic

Inlet Connection Size

G 1/8

Series

VPPM-6L-L-1-G18-0L6H-V1P-S1

Outlet Connection Size

G 1/8

Inlet Thread Standard

G

Maximum Operating Pressure

8 bar

Material

Anodised wrought Aluminium Alloy

Minimum Operating Temperature

10°C

Outlet Thread Standard

G

Maximum Operating Temperature

50°C

Standards/Approvals

CE to EU for EMC, KC-EMV, RCM c UL us (OL)

COO (Country of Origin):
BG

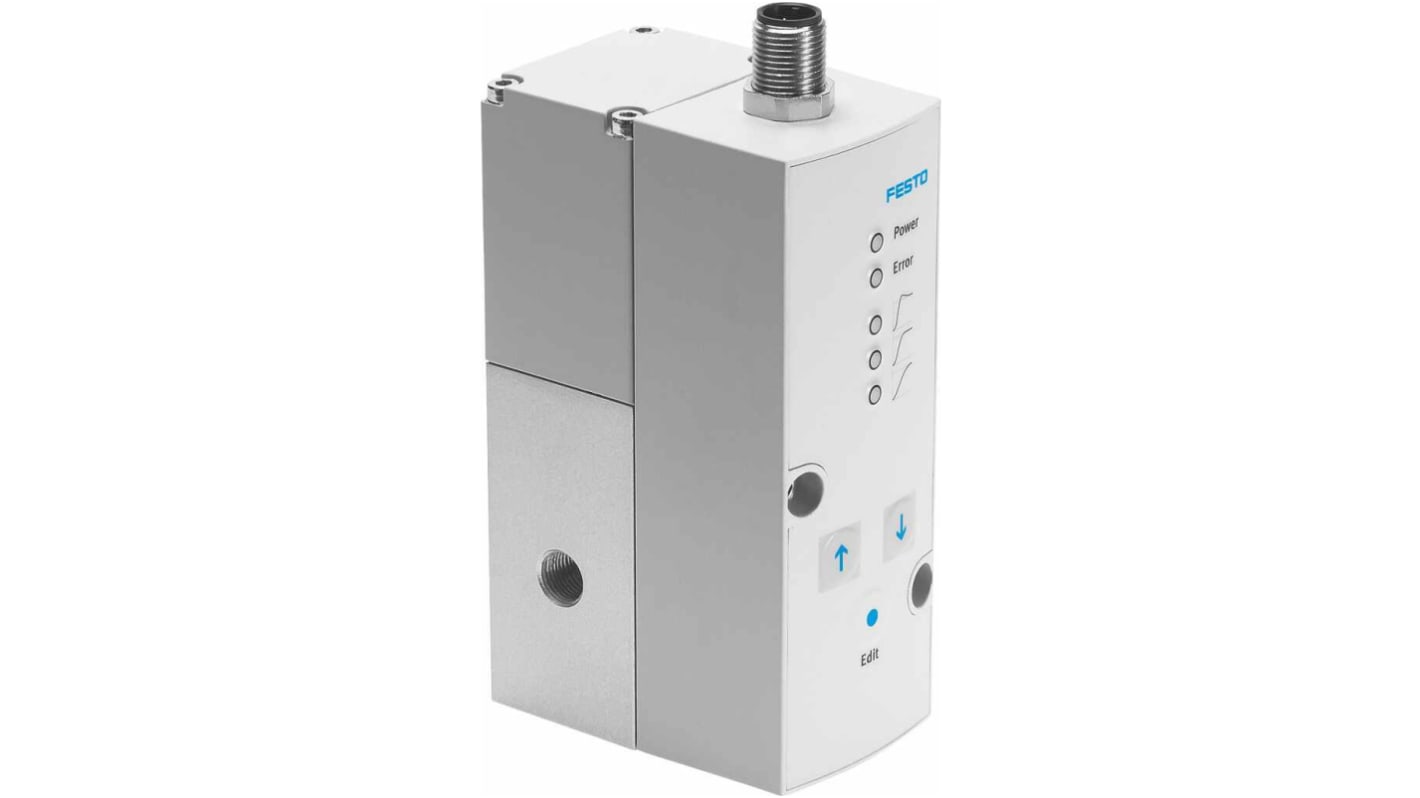

Festo Pneumatic Regulator, 0.06 Bar to 6 Bar, G 1/8 - VPP Series - VPPM-6L-L-1-G18-0L6H-V1P-S1


This proportional pressure regulator from Festo features precise adjustment and dynamic response times. It provides highly stable pressure regulation and can be used with electronic, pneumatic and mechanical systems. By simply selecting one of the unit's three pre-set functions, you can choose the operation that suits your application, without needing any specialised expertise. The component's integrated sensors ensure that efficient regulation results are consistently achieved. For added convenience, you can use it to monitor and control almost all pressure values remotely. Its temperature compensation function means that you don't have to worry about pressure drifting when temperatures change.

This proportional pressure regulator can be controlled by voltage or current. It features Festo's plug-and-work installation system, so you don't need to adjust your control circuit. You can use the unit in any application where force and pressure need to be strictly regulated.

• Wide ambient temperature range of 0°C to +60°C

• Typical flow rate of 900 L/min for high-flow applications

• IP (ingress protection) 65 rating for protection against dust and water

• Clear and easy-to-read LED display

• Wrought-aluminium housing for durability and corrosion resistance
