Subtotal (1 pack of 10 units)*
R 1 932,21
(exc. VAT)
R 2 222,04
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | R 193.221 | R 1,932.21 |
*price indicative
- RS stock no.:
- 176-1831
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Pneumatic Fitting | |
| Sub Type | Push-in | |
| Connection Type A | Push-in | |
| Connection Size A | 10 mm | |
| Connection Type B | Push-in | |
| Connection Size B | 12 mm | |
| Series | RS PRO | |
| Minimum Operating Temperature | -20°C | |
| Material | Technopolymer | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | 1907/2006 REACH, PED 2014/68/UE, ISO 14743:2004 | |
| Maximum Operating Pressure | 20 bar | |
| Finish | Nickel | |
| Food Grade | Yes | |
| Chemical Resistant | Yes | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Pneumatic Fitting | ||
Sub Type Push-in | ||
Connection Type A Push-in | ||
Connection Size A 10 mm | ||
Connection Type B Push-in | ||
Connection Size B 12 mm | ||
Series RS PRO | ||
Minimum Operating Temperature -20°C | ||
Material Technopolymer | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals 1907/2006 REACH, PED 2014/68/UE, ISO 14743:2004 | ||
Maximum Operating Pressure 20 bar | ||
Finish Nickel | ||
Food Grade Yes | ||
Chemical Resistant Yes | ||

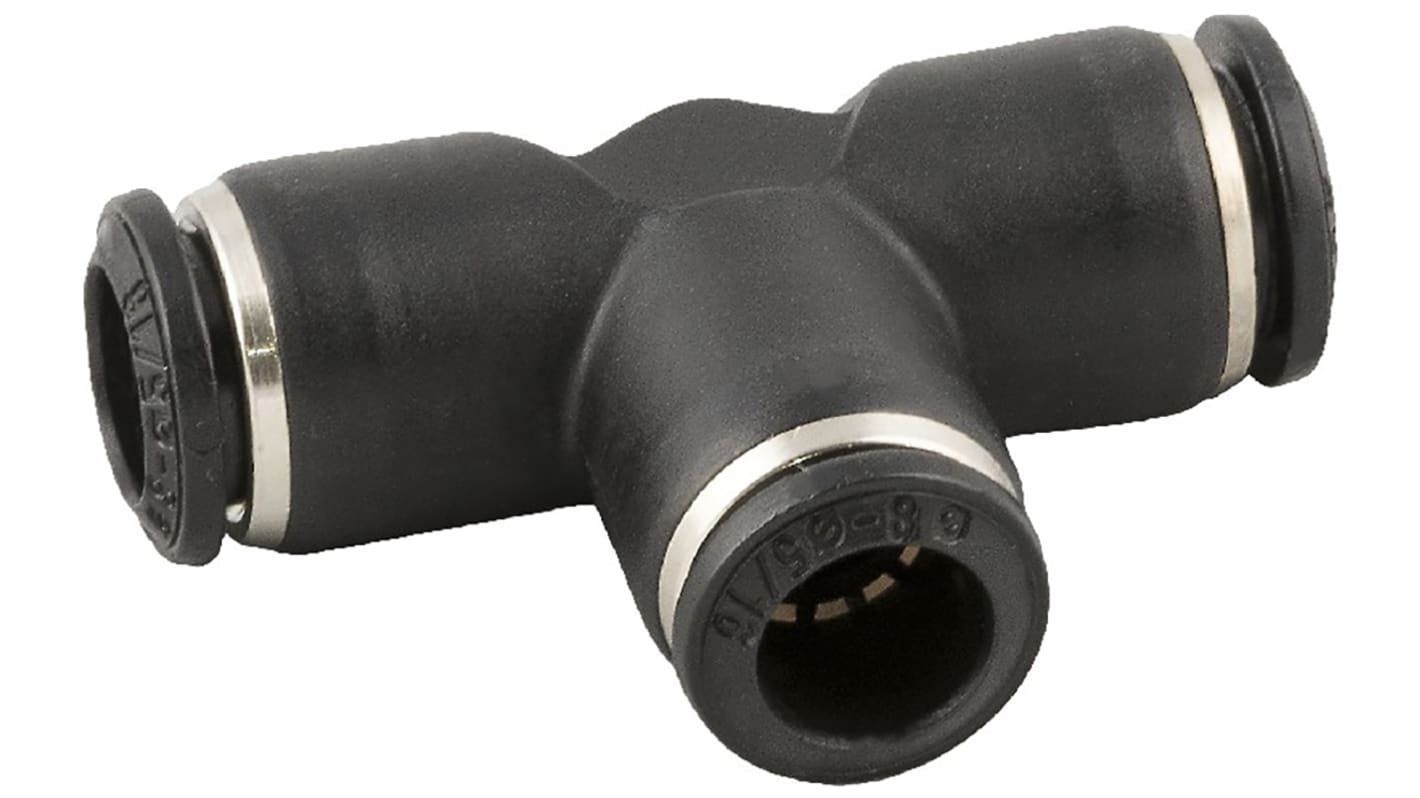

RS PRO Tee Tube-to-Tube Adaptor, Push-In 10 mm to Push-In 12 mm to Push-In 12 mm, 20 bar
If you need to link together sections of tubing in your pneumatics systems, these RS PRO tee adaptors are an effective solution. Their shape allows you to join two or three separate tubes together, with connections in a straight line and at right angles. With the simple push-in connectors, you can secure a firm vacuum seal without the need for tools.
Using these adaptors in your compressed air system will make it reliable, as their technopolymer material has a good level of strength. Their wide operating temperature range of -20ºC to +80ºC makes them ideal for use in a variety of different environments.
These products are capable of handling pressures up to 20 bar, so they'll be effective in the most demanding pneumatics situations. Adaptors like these ones are often used for robotics equipment, as well as water pumps and automotive applications.
Features and Benefits
• Push-in 10 mm branch connector
• Push-in 10 mm branch tube connection
• Branch tube connection – tube size of 10 mm
• Connector A is a 12 mm push-in type
• Connector B is a 12 mm push-in type
• Maximum operating pressure of 20 bar
• Operating temperature range of -20°C to +80°C
• Tee tube-to-tube adaptor pneumatic fitting type
• Standards met include 1907/2006 (REACH), ISO 14743:2004, PED 2014/68/UE
