Microchip, Operational Amplifier, 2.8 MHz, 8-Pin 5 V SOIC
- RS stock no.:
- 774-7447
- Mfr. Part No.:
- MCP602-E/SN
- Manufacturer:
- Microchip

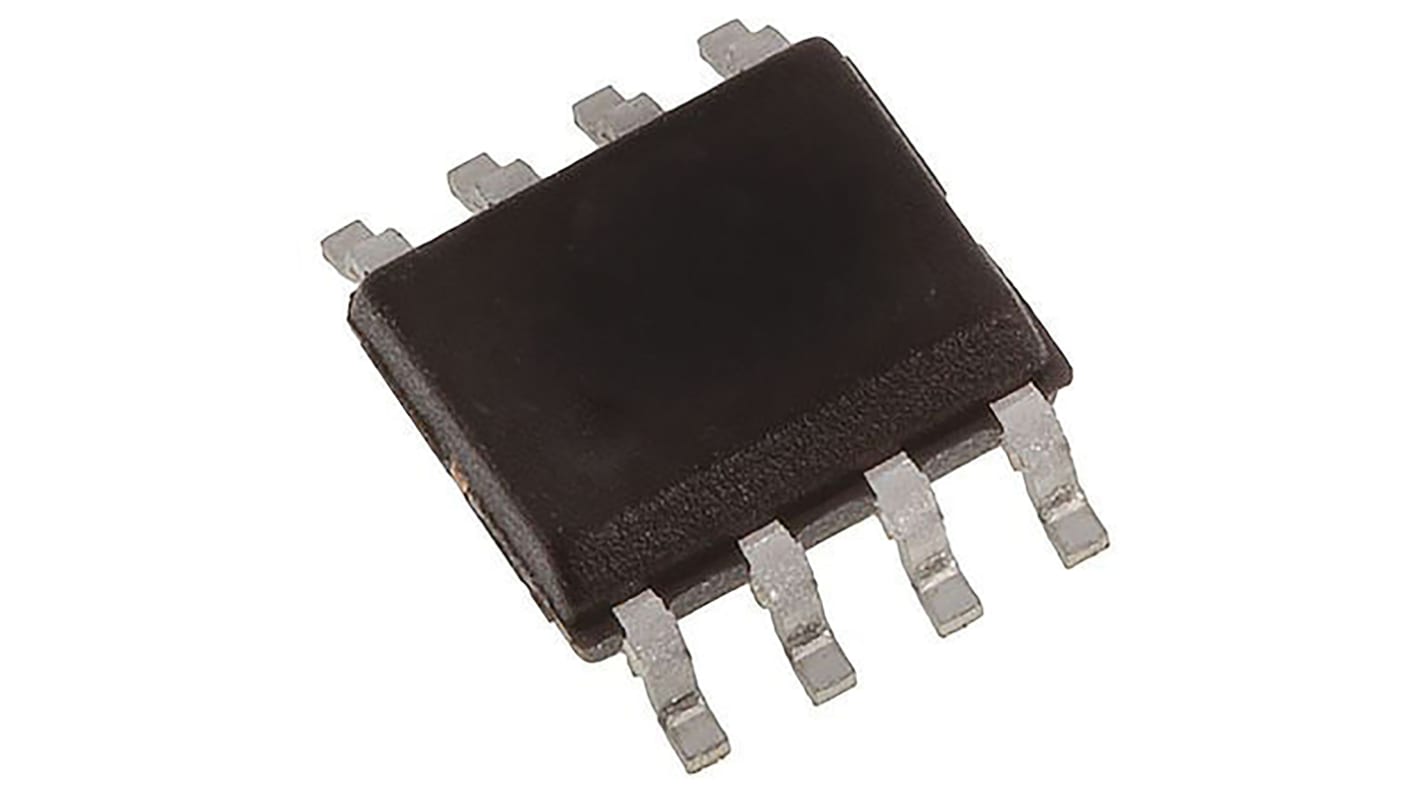

Image representative of range
Bulk discount available
Subtotal (1 bag of 10 units)*
R 123,29
(exc. VAT)
R 141,78
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 1,300 unit(s) shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 190 | R 12.329 | R 123.29 |
| 200 - 990 | R 12.021 | R 120.21 |
| 1000 + | R 11.66 | R 116.60 |
*price indicative
- RS stock no.:
- 774-7447
- Mfr. Part No.:
- MCP602-E/SN
- Manufacturer:
- Microchip
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 2.8MHz | |
| Maximum Supply Voltage | 5V | |
| Minimum Supply Voltage | 2.7V | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 1 pA | |
| Vos - Input Offset Voltage | 2 mV | |
| Slew Rate | 2.3V/μs | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Width | 3.9 mm | |
| Length | 4.9mm | |
| Height | 1.5mm | |
| Series | MCP602 | |
| Output Current | 30mA | |
| Automotive Standard | No | |
| Input Offset Current | 1 pA | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOIC | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 2.8MHz | ||
Maximum Supply Voltage 5V | ||
Minimum Supply Voltage 2.7V | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 1 pA | ||
Vos - Input Offset Voltage 2 mV | ||
Slew Rate 2.3V/μs | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Width 3.9 mm | ||
Length 4.9mm | ||
Height 1.5mm | ||
Series MCP602 | ||
Output Current 30mA | ||
Automotive Standard No | ||
Input Offset Current 1 pA | ||
MCP601/602/603/604 Operational Amplifiers
Operational Amplifiers, Microchip
