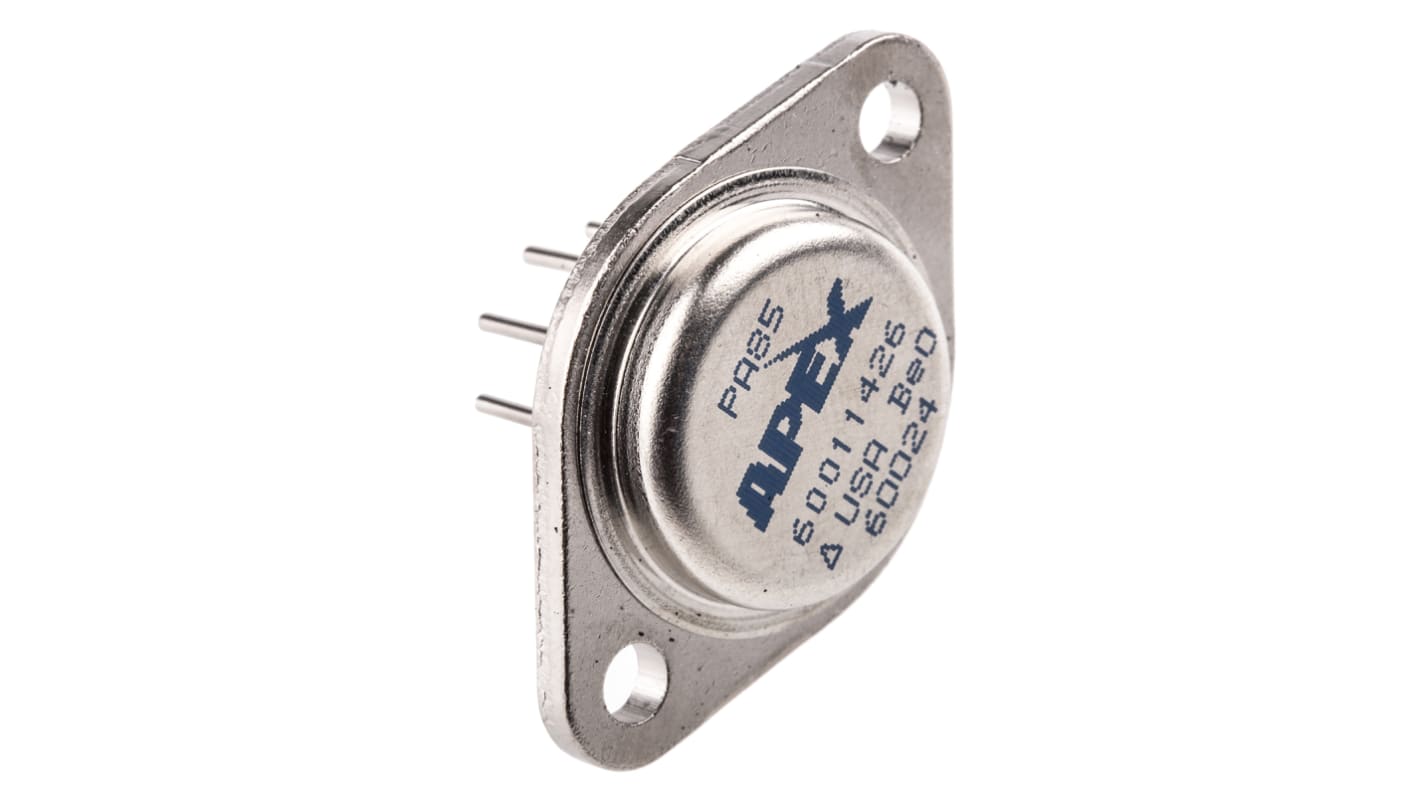

Apex, Operational Amplifier, 100 MHz, 8-Pin 450 V TO-3
- RS stock no.:
- 716-5968P
- Mfr. Part No.:
- PA85
- Manufacturer:
- Apex
Image representative of range
Bulk discount available
Subtotal 5 units (supplied in a box)*
R 28 907,30
(exc. VAT)
R 33 243,40
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 8 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 5 - 9 | R 5,781.46 |
| 10 - 19 | R 5,608.02 |
| 20 - 49 | R 5,383.70 |
| 50 + | R 5,168.35 |
*price indicative
- RS stock no.:
- 716-5968P
- Mfr. Part No.:
- PA85
- Manufacturer:
- Apex
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Apex | |
| Product Type | Operational Amplifier | |
| Mount Type | Through Hole | |
| Package Type | TO-3 | |
| Number of Channels | 1 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 100MHz | |
| Minimum Supply Voltage | 225V | |
| Maximum Supply Voltage | 450V | |
| Vos - Input Offset Voltage | 2 mV | |
| Minimum Operating Temperature | -25°C | |
| Input Bias Current | 50 pA | |
| Slew Rate | 1000V/μs | |
| Maximum Operating Temperature | 85°C | |
| Height | 6.4mm | |
| Standards/Approvals | No | |
| Length | 38.9mm | |
| Width | 25.4 mm | |
| Series | PA85 | |
| Automotive Standard | No | |
| Output Current | 200mA | |
| Input Offset Current | 100 pA | |
| Select all | ||
|---|---|---|
Brand Apex | ||
Product Type Operational Amplifier | ||
Mount Type Through Hole | ||
Package Type TO-3 | ||
Number of Channels 1 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 100MHz | ||
Minimum Supply Voltage 225V | ||
Maximum Supply Voltage 450V | ||
Vos - Input Offset Voltage 2 mV | ||
Minimum Operating Temperature -25°C | ||
Input Bias Current 50 pA | ||
Slew Rate 1000V/μs | ||
Maximum Operating Temperature 85°C | ||
Height 6.4mm | ||
Standards/Approvals No | ||
Length 38.9mm | ||
Width 25.4 mm | ||
Series PA85 | ||
Automotive Standard No | ||
Output Current 200mA | ||
Input Offset Current 100 pA | ||
- COO (Country of Origin):
- US
Power Operational Amplifiers, Apex
Power Operational Amplifiers, Apex
