Schmersal BNS33 Series Magnetic Safety Switch, Plastic Housing, 2 NO, M8
- RS stock no.:
- 623-3199
- Mfr. Part No.:
- BNS 33-02Z-ST-2187
- Manufacturer:
- Schmersal
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 1 810,93
(exc. VAT)
R 2 082,57
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 42 unit(s) ready to ship from another location
- Plus 6 unit(s) shipping from 02 November 2026
- Plus 42 unit(s) shipping from 16 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,810.93 |
| 5 - 9 | R 1,765.66 |
| 10 + | R 1,712.69 |
*price indicative
- RS stock no.:
- 623-3199
- Mfr. Part No.:
- BNS 33-02Z-ST-2187
- Manufacturer:
- Schmersal
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schmersal | |
| Product Type | Safety Switch | |
| Body Style | Rectangular | |
| Safety Contacts | 2 NO | |
| Housing Material | Plastic | |
| Connection Type | M8 | |
| Actuator Type | Coded | |
| Safety Category | 4 | |
| Housing Colour | Black | |
| Sensor Principle | Magnetic | |
| Switching Current | 250mA | |
| Actuator Included | No | |
| Terminal Type | M8 | |
| Switching Distance | 18 mm | |
| Series | BNS33 | |
| IP Rating | IP67 | |
| Standards/Approvals | EAC, IEC, BG, EN, cULus | |
| Hazardous Area Certification | No | |
| Length | 88mm | |
| Depth | 13mm | |
| Width | 25mm | |
| Select all | ||
|---|---|---|
Brand Schmersal | ||
Product Type Safety Switch | ||
Body Style Rectangular | ||
Safety Contacts 2 NO | ||
Housing Material Plastic | ||
Connection Type M8 | ||
Actuator Type Coded | ||
Safety Category 4 | ||
Housing Colour Black | ||
Sensor Principle Magnetic | ||
Switching Current 250mA | ||
Actuator Included No | ||
Terminal Type M8 | ||
Switching Distance 18 mm | ||
Series BNS33 | ||
IP Rating IP67 | ||
Standards/Approvals EAC, IEC, BG, EN, cULus | ||
Hazardous Area Certification No | ||
Length 88mm | ||
Depth 13mm | ||
Width 25mm | ||
- COO (Country of Origin):
- DE

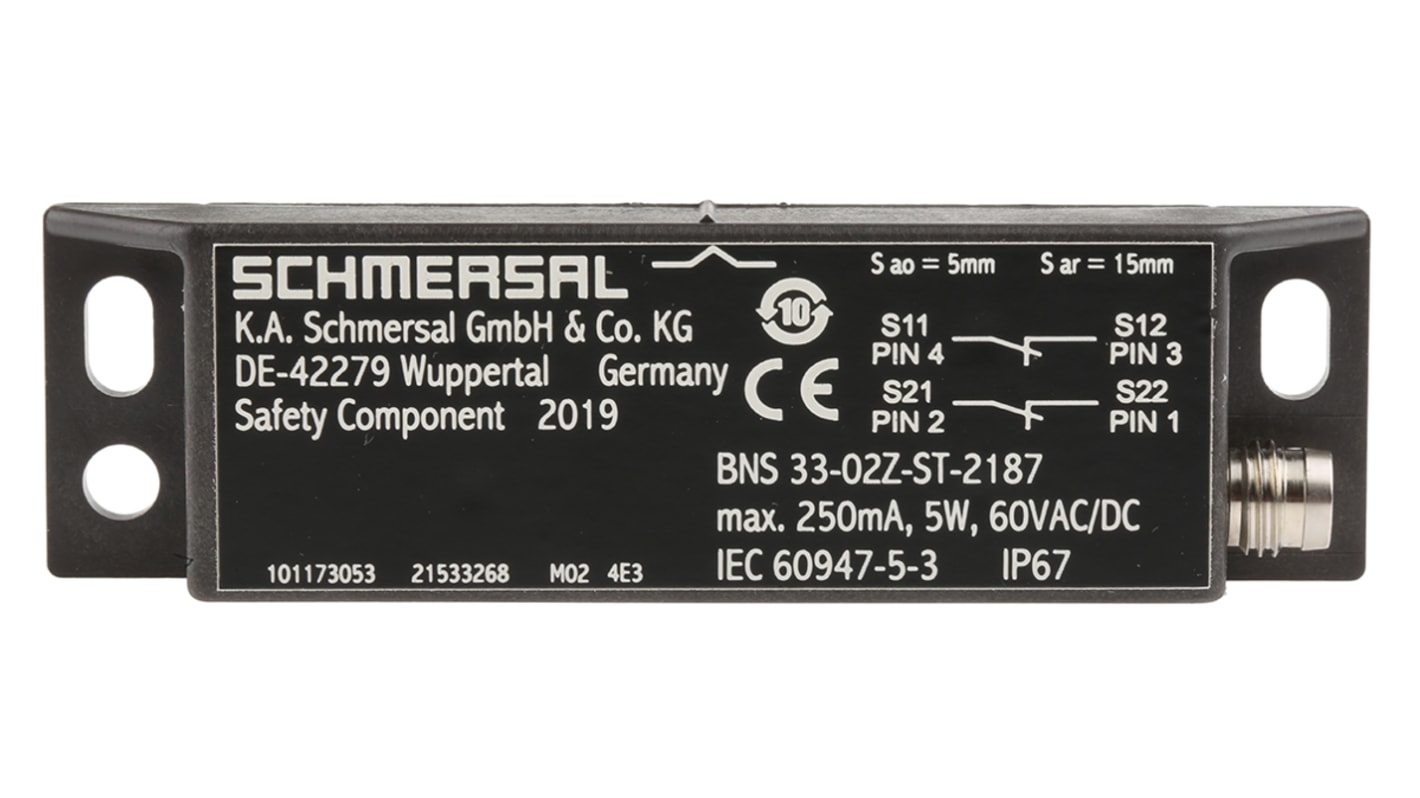

Schmersal Magnetic Safety Switch, 60V AC/DC, M8 - BNS33 Series - BNS 33-02Z-ST-2187
Keep hazardous areas out of bounds with this non-contact safety switch from Schmersal. The device will break two electrical connections when it senses that the matching magnetic actuator is in position and the power to a machine needs to be cut. To prevent tampering, the actuator is coded so it can't be bypassed using a standard magnet. The switch has an ON distance of 5 to 8mm and an OFF distance of 15 to 18mm. It works with voltages of up to 60V AC/DC at up to 0.25A. You can buy the matching actuator (198-7863) separately.
Features and Benefits
• Operating temperature range of -25°C to +70°C for use in a wide range of industrial environments
• 4-pin M8 connector makes for simple and fast connection
• Glass fibre-reinforced thermoplastic enclosure is tamper-resistant and self-extinguishes if subjected to fire
Application Information
• Security systems
• Machine access panels
• Assembly lines
• Food processing industry
Why should I choose a non-contact magnetic switch?
These switches are robust and not negatively affected by heavy vibration. They're particularly suited to applications where door misalignment is common and where hygienic conditions don't need to be maintained.
