STMicroelectronics 3-Axis Surface Accelerometer 1.71 V 3.6 V, I2C/SPI, LGA, 16-Pin

RS stock no.:: 233-3017
Mfr. Part No.:: MIS2DHTR
Manufacturer:: STMicroelectronics

STMicroelectronics 3-Axis Surface Accelerometer 1.71 V 3.6 V, I2C/SPI, LGA, 16-Pin

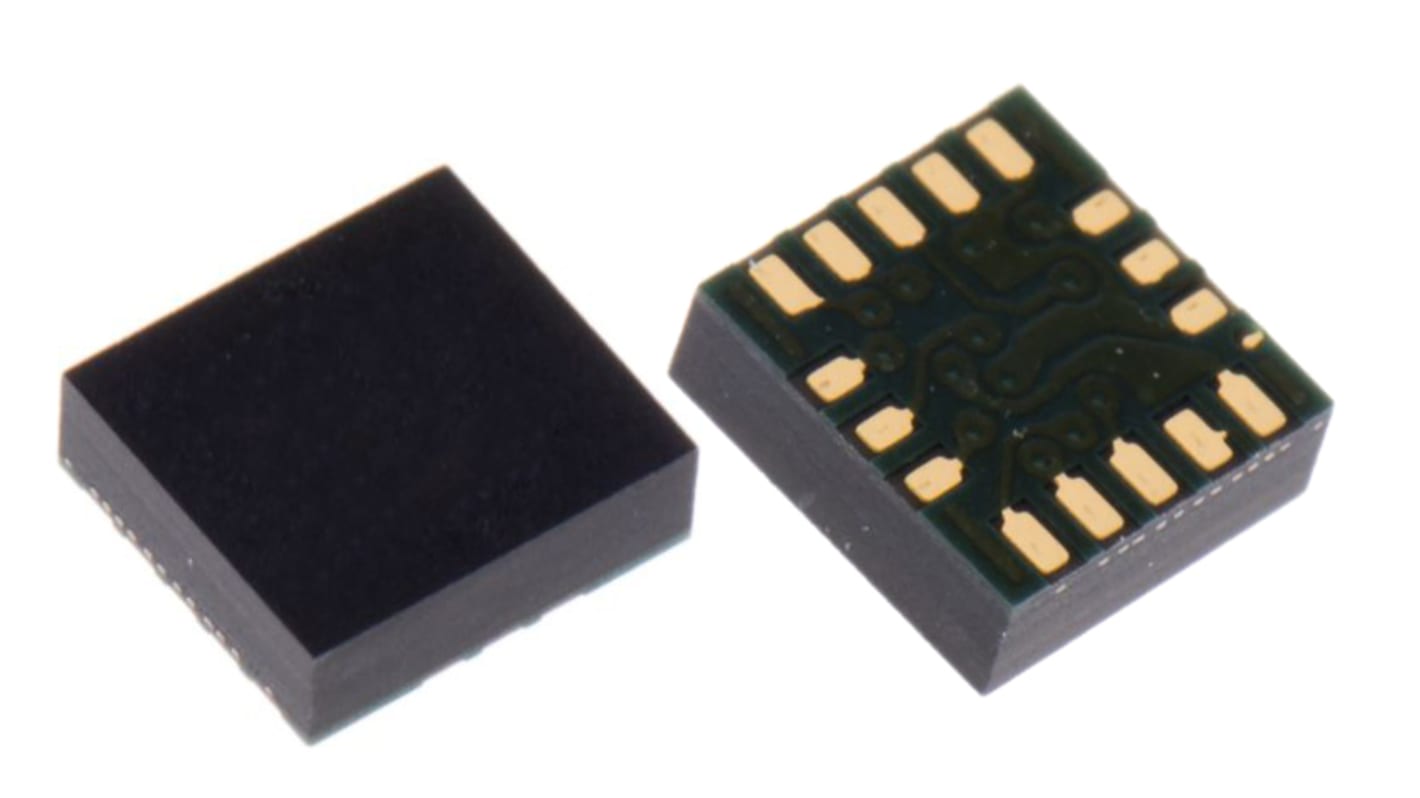

Image representative of range

Bulk discount available

Subtotal (1 unit)*

R 269,88

(exc. VAT)

R 310,36

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

Plus 1,648 unit(s) shipping from 29 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	R 269.88
10 - 99	R 263.13
100 - 249	R 255.24
250 - 499	R 245.03
500 +	R 235.23

*price indicative

RS stock no.:: 233-3017
Mfr. Part No.:: MIS2DHTR
Manufacturer:: STMicroelectronics

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	STMicroelectronics
	Sensor Type	Motion Sensor Module
	Product Type	Accelerometer
	Number of Axis	3
	Technology	Analogue
	Mount Type	Surface
	Interface Type	I2C/SPI
	Minimum Supply Voltage	1.71V
	Package Type	LGA
	Maximum Supply Voltage	3.6V
	Minimum Operating Temperature	-40°C
	Sensitivity	0.01%/°C
	Pin Count	16
	Maximum Operating Temperature	85°C
	Width	2 mm
	Standards/Approvals	No
	Length	2mm
	Series	MIS2DH
	Height	1mm
	Supply Current	2mA
	Automotive Standard	No

	Select all
	Brand STMicroelectronics
	Sensor Type Motion Sensor Module
	Product Type Accelerometer
	Number of Axis 3
	Technology Analogue
	Mount Type Surface
	Interface Type I2C/SPI
	Minimum Supply Voltage 1.71V
	Package Type LGA
	Maximum Supply Voltage 3.6V
	Minimum Operating Temperature -40°C
	Sensitivity 0.01%/°C
	Pin Count 16
	Maximum Operating Temperature 85°C
	Width 2 mm
	Standards/Approvals No
	Length 2mm
	Series MIS2DH
	Height 1mm
	Supply Current 2mA
	Automotive Standard No

Datasheet - MIS2DHTR

The STMicroelectronics MIS2DH is an ultra-low-power high-performance three-axis linear accelerometer with digital I2C/SPI serial interface standard output. The MIS2DH has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz. The MIS2DH is a device that has been conceived for medical and healthcare applications whenever the sensor itself is not used as a life-sustaining component. The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself.

6D/4D orientation detection

Motion detection & free-fall detection

“Sleep-to-wake” and “return-to-sleep” functions

Embedded FIFO

Embedded self-test

Embedded temperature sensor

ECOPACK®, RoHS and “Green” compliant
