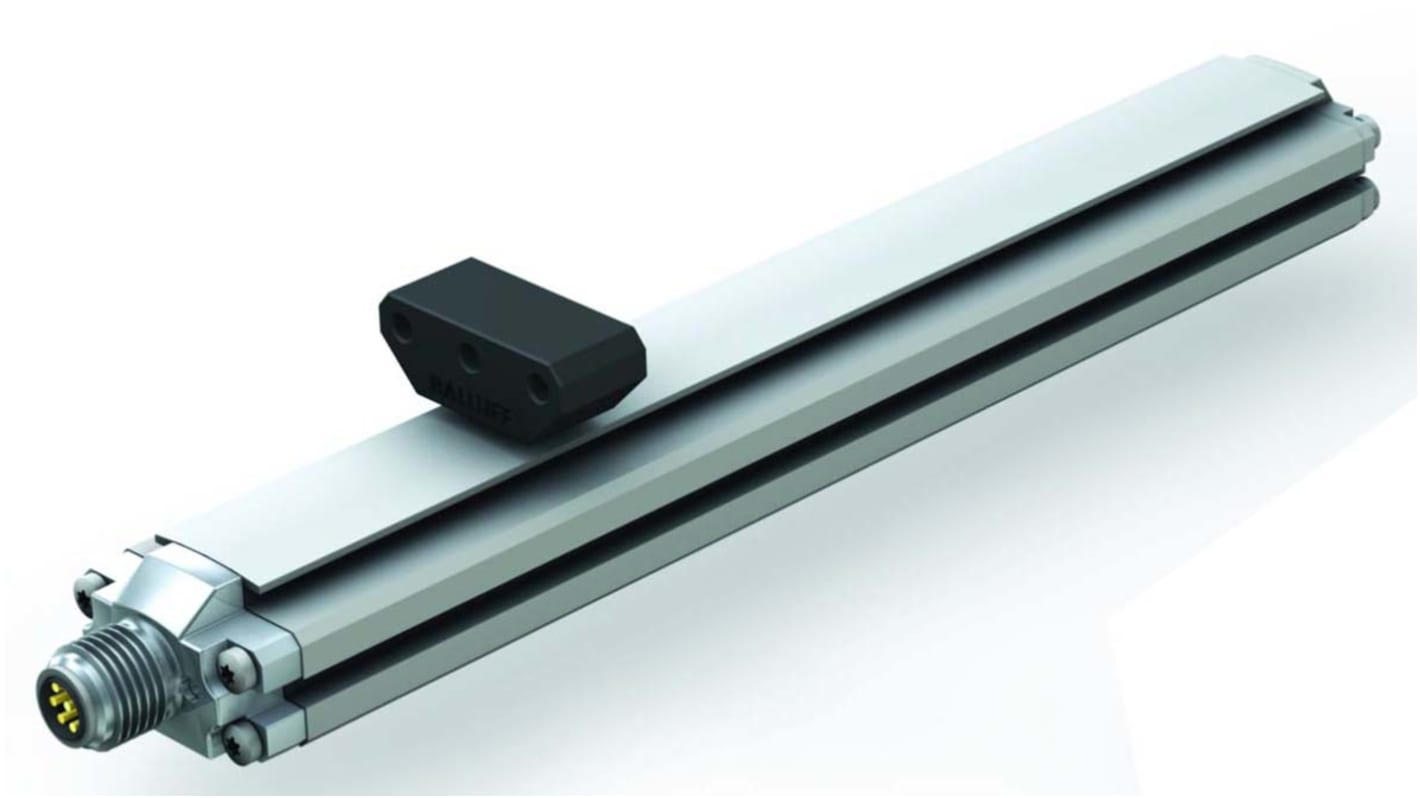

BALLUFF Transducer Linear Transducer
- RS stock no.:
- 135-0313
- Mfr. Part No.:
- BTL6-U110-M0500-PF-S4
- Manufacturer:
- BALLUFF
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS stock no.:
- 135-0313
- Mfr. Part No.:
- BTL6-U110-M0500-PF-S4
- Manufacturer:
- BALLUFF
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BALLUFF | |
| Encoder Technology | Transducer | |
| Stroke | 500mm | |
| Supply Voltage | 18 → 30 V dc | |
| IP Rating | IP54, IP67 | |
| Overall Height | 26.3mm | |
| Interface | IO-Link | |
| Overall Width | 692mm | |
| Overall Depth | 68mm | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +70°C | |
| Current Rating | Maximum of 150 mA | |
| Select all | ||
|---|---|---|
Brand BALLUFF | ||
Encoder Technology Transducer | ||
Stroke 500mm | ||
Supply Voltage 18 → 30 V dc | ||
IP Rating IP54, IP67 | ||
Overall Height 26.3mm | ||
Interface IO-Link | ||
Overall Width 692mm | ||
Overall Depth 68mm | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +70°C | ||
Current Rating Maximum of 150 mA | ||
- COO (Country of Origin):
- HU
Balluff Micropulse Transducers
Balluff Micropulse magnetostrictive linear position transducers deliver highly accurate and reliable position control signals. Balluff’s non-contact magnetostrictive technology means performance does not reduce over time and have proven reliable in demanding industrial position monitoring and measurement applications.
High resolution, repeatability, and linearity
Resistant to shock, vibration and electrical interference
Wide variety of housing styles and electrical interfaces
Stroke lengths from 1" → 300
Absolute output signals, even after power interruption; no re-homing necessary
Resistant to shock, vibration and electrical interference
Wide variety of housing styles and electrical interfaces
Stroke lengths from 1" → 300
Absolute output signals, even after power interruption; no re-homing necessary
Position feedback for closed-loop control of hydraulic cylinders
Windpower, steel mills, sawmill equipment, motion simulators, mobile (offroad) equipment
Monitoring of linear movements on plastics and rubber manufacturing machinery
Position monitoring and control on packaging and automated assembly machinery
Precision fill-level and dosing
Anywhere highly precise, absolute linear position feedback is required
Windpower, steel mills, sawmill equipment, motion simulators, mobile (offroad) equipment
Monitoring of linear movements on plastics and rubber manufacturing machinery
Position monitoring and control on packaging and automated assembly machinery
Precision fill-level and dosing
Anywhere highly precise, absolute linear position feedback is required
