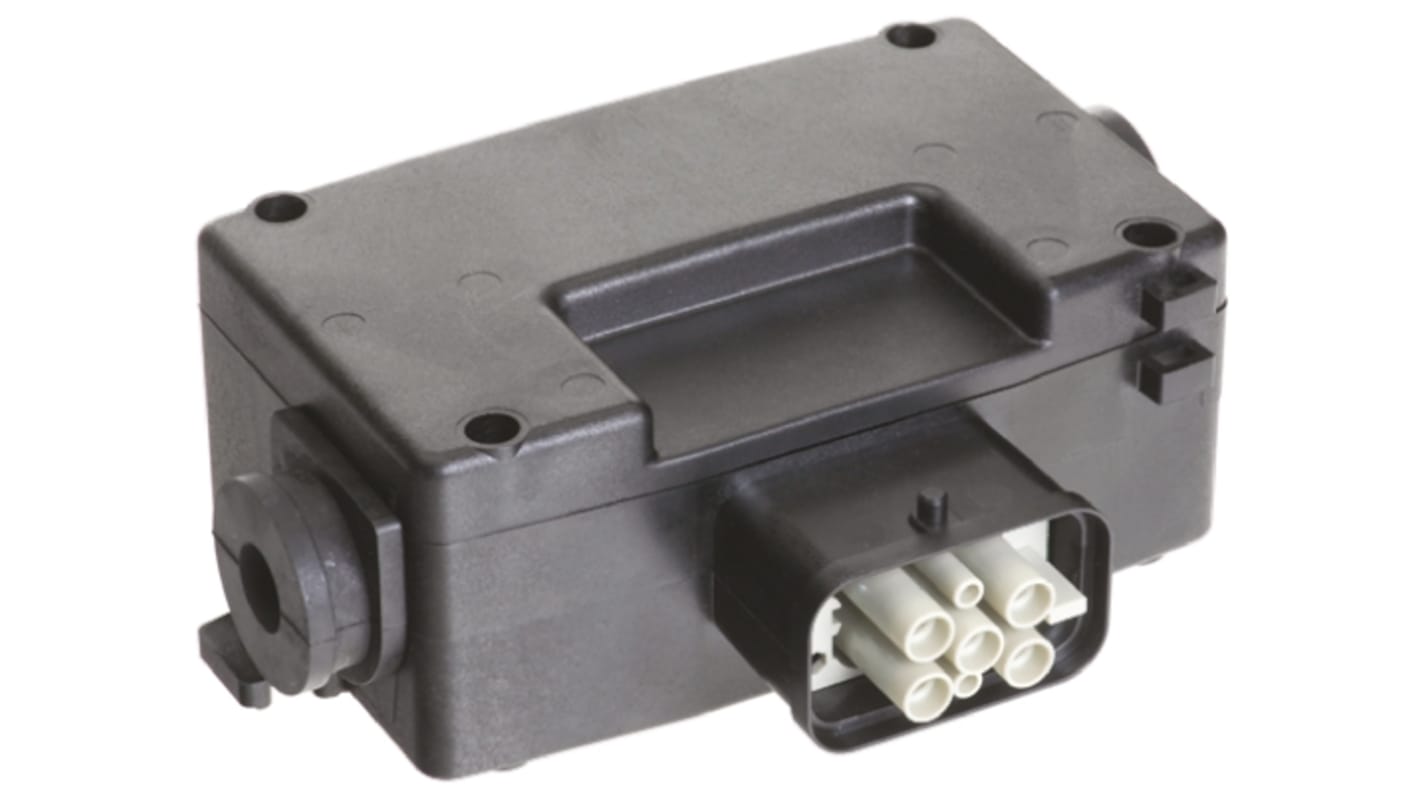

Name: HARTING, Han Power S IP65 Black Surface Mount 6P + E Industrial Power Socket, Rated At 10A, 600 V
Brand: HARTING
SKU: 787-1720
Price: 4171.36 ZAR
Availability: BackOrder

Han-Power® S Serial Bus Power Connectors

Harting Han-Power® S serial bus power connectors are suitable for adding additional power connections within an existing circuit, the outer insulation of the cable is stripped to the desired length and the wires are inserted into the Han-Power® S and tapped via the insulation displacement terminals, offering a simple and effective method of adding to an established power network.

"6 IDCs + PE for 2.5 mm² up to 4 mm² wire gauge
No interruption of the energy supply
Space-saving and compact design
Leading protective ground in Han® Q 8/0 insert
Assembled with standard tools
T-functionality for max. 500 V: - energy bus structure: 7 x 4 mm² - power supply structure: 7 x 2.5 mm²
Distribution to device can be realized with a Han Q 8/0 cable to cable housing

Standards

DIN EN 61984, DIN EN 60664-1

Harting Han-Power®

Units	Per unit
1 - 14	R 3 627,27
15 - 49	R 3 536,59
50 +	R 3 430,49

Select all	Attribute	Value
	Brand	HARTING
	Current Rating	10A
	Plug/Socket	Socket
	Pole Format	6P + E
	Voltage Rating	600 V
	Mounting Type	Surface Mount
	Gender	Female
	Body Orientation	Straight
	Termination Method	IDC
	Series	Han Power S
	IP Rating	IP65
	Cable CSA	4 → 6mm²
	Colour	Black
	Maximum Operating Temperature	+80°C
	Minimum Operating Temperature	-25°C

	Select all
	Brand HARTING
	Current Rating 10A
	Plug/Socket Socket
	Pole Format 6P + E
	Voltage Rating 600 V
	Mounting Type Surface Mount
	Gender Female
	Body Orientation Straight
	Termination Method IDC
	Series Han Power S
	IP Rating IP65
	Cable CSA 4 → 6mm²
	Colour Black
	Maximum Operating Temperature +80°C
	Minimum Operating Temperature -25°C
