TE Connectivity PCB RF Relay, 1.5V dc Coil, DPDT
- RS stock no.:
- 181-205
- Mfr. Part No.:
- 2-1462040-9
- Manufacturer:
- TE Connectivity

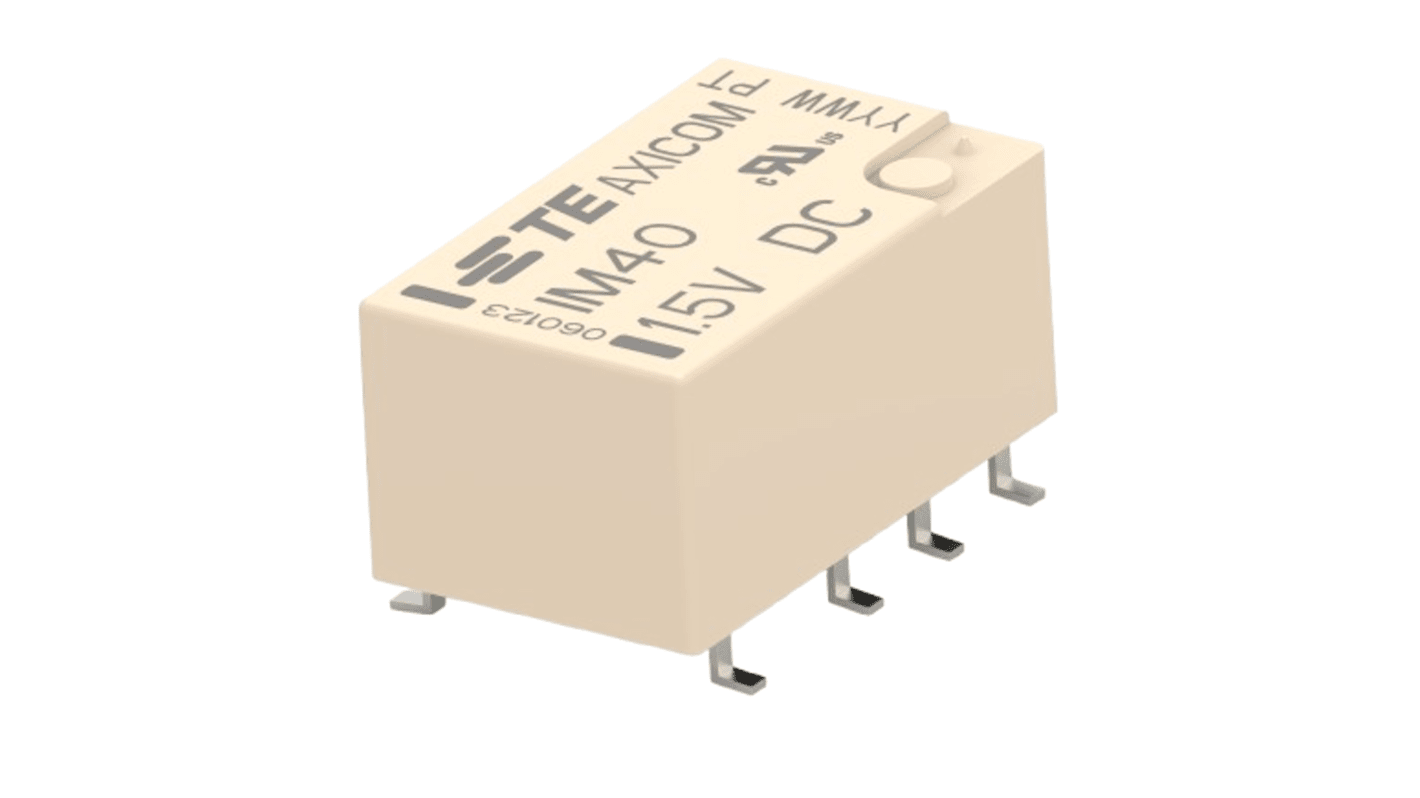

Image representative of range
Subtotal (1 tape of 2 units)*
R 65,40
(exc. VAT)
R 75,21
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 493 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape | Per unit* |
|---|---|---|
| 1 + | R 65.40 | R 32.70 |
*price indicative
- RS stock no.:
- 181-205
- Mfr. Part No.:
- 2-1462040-9
- Manufacturer:
- TE Connectivity
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RF Relay | |
| Coil Resistance | 23Ω | |
| Contact Resistance | 50mΩ | |
| Insertion Loss | 0.33dB | |
| Contact Configuration | DPDT | |
| Coil Voltage | 1.5V dc | |
| Terminal Type | Through Hole | |
| Mount Type | PCB | |
| Switching DC Voltage | 220V dc | |
| Switching AC Voltage | 250V ac | |
| Voltage Standing Wave Ratio VSWR | 1.06/1.49 | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -40°C | |
| Coil Type | Monostable | |
| Maximum Operating Temperature | 85°C | |
| Length | 1mm | |
| Width | 6mm | |
| Height | 5.65mm | |
| Coil Power | 50mW | |
| Standards/Approvals | EU RoHS/ELV, Halogen, IEC 61810, REACH, UL 61810-1, CHINA RoHS | |
| Series | IM | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RF Relay | ||
Coil Resistance 23Ω | ||
Contact Resistance 50mΩ | ||
Insertion Loss 0.33dB | ||
Contact Configuration DPDT | ||
Coil Voltage 1.5V dc | ||
Terminal Type Through Hole | ||
Mount Type PCB | ||
Switching DC Voltage 220V dc | ||
Switching AC Voltage 250V ac | ||
Voltage Standing Wave Ratio VSWR 1.06/1.49 | ||
Contact Current 5A | ||
Minimum Operating Temperature -40°C | ||
Coil Type Monostable | ||
Maximum Operating Temperature 85°C | ||
Length 1mm | ||
Width 6mm | ||
Height 5.65mm | ||
Coil Power 50mW | ||
Standards/Approvals EU RoHS/ELV, Halogen, IEC 61810, REACH, UL 61810-1, CHINA RoHS | ||
Series IM | ||
- COO (Country of Origin):
- CZ
The TE Connectivity IM signal relays, as part of our smallest types of electromechanical relays, offer a wide and deep range of variations suitable for many applications. The IM series are equipped with 2 changeover contacts in both monostable or bistable versions, available in multiple Coil solutions, performance types and pin layouts.
Slim line 10x6 mm and low profile 5.65 mm
High mechanical shock resistance up to 50 g functional
High dielectric and surge capability up to 2500 Vrms
Low Coil power consumption
Minimum board space 60mm²
