Infineon IRS21091SPBF, Gate Driver, 600 mA 8-Pin 600 V, SOIC

RS stock no.:: 257-5794
Mfr. Part No.:: IRS21091SPBF
Manufacturer:: Infineon

Infineon IRS21091SPBF, Gate Driver, 600 mA 8-Pin 600 V, SOIC

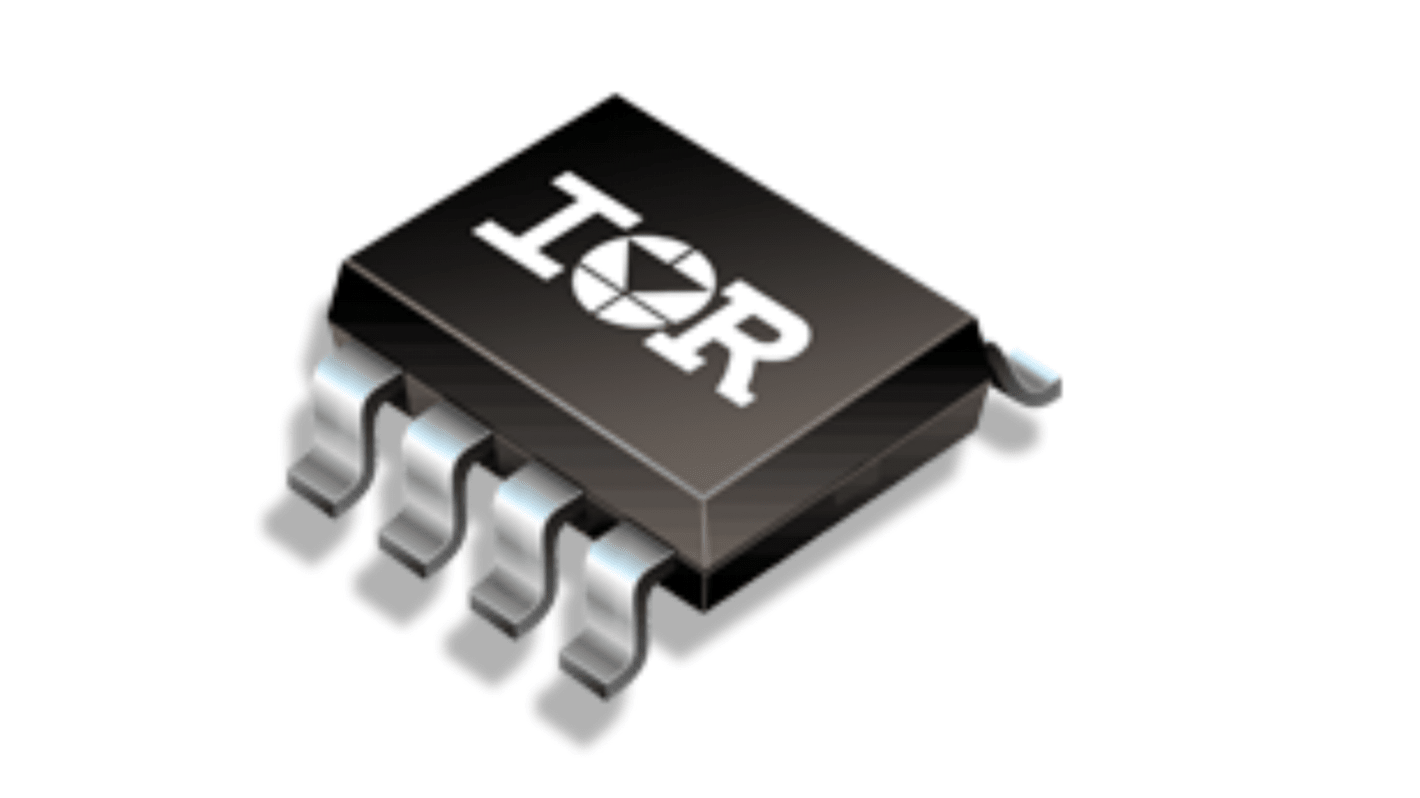

Image representative of range

Bulk discount available

Subtotal (1 pack of 5 units)*

R 195,67

(exc. VAT)

R 225,02

(inc. VAT)

FREE delivery for orders over R 1,500.00

Temporarily out of stock

Shipping from 11 December 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
5 - 5	R 39.134	R 195.67
10 - 20	R 38.156	R 190.78
25 - 45	R 37.012	R 185.06
50 - 95	R 35.532	R 177.66
100 +	R 34.11	R 170.55

*price indicative

RS stock no.:: 257-5794
Mfr. Part No.:: IRS21091SPBF
Manufacturer:: Infineon

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	Gate Driver
	Output Current	600mA
	Pin Count	8
	Package Type	SOIC
	Fall Time	35ns
	Driver Type	Gate Driver
	Rise Time	220ns
	Minimum Supply Voltage	10V
	Maximum Supply Voltage	600V
	Minimum Operating Temperature	-50°C
	Maximum Operating Temperature	150°C
	Series	IRS
	Standards/Approvals	RoHS
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type Gate Driver
	Output Current 600mA
	Pin Count 8
	Package Type SOIC
	Fall Time 35ns
	Driver Type Gate Driver
	Rise Time 220ns
	Minimum Supply Voltage 10V
	Maximum Supply Voltage 600V
	Minimum Operating Temperature -50°C
	Maximum Operating Temperature 150°C
	Series IRS
	Standards/Approvals RoHS
	Automotive Standard No

Datasheet - IRS21091SPBF

The Infineon half bridge driver are high voltage, high speed power MOSFET and IGBT driver with dependent high- and low-side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates up to 600 V.

Floating channel designed for bootstrap operation

Fully operational to +600 V

Tolerant to negative transient voltage, dV/dt immune

Under voltage lockout for both channels

Cross-conduction prevention logic

Matched propagation delay for both channels

High-side output in phase with IN input

Lower di/dt gate driver for better noise immunity

The dual function DT/SD input turns off both channels
