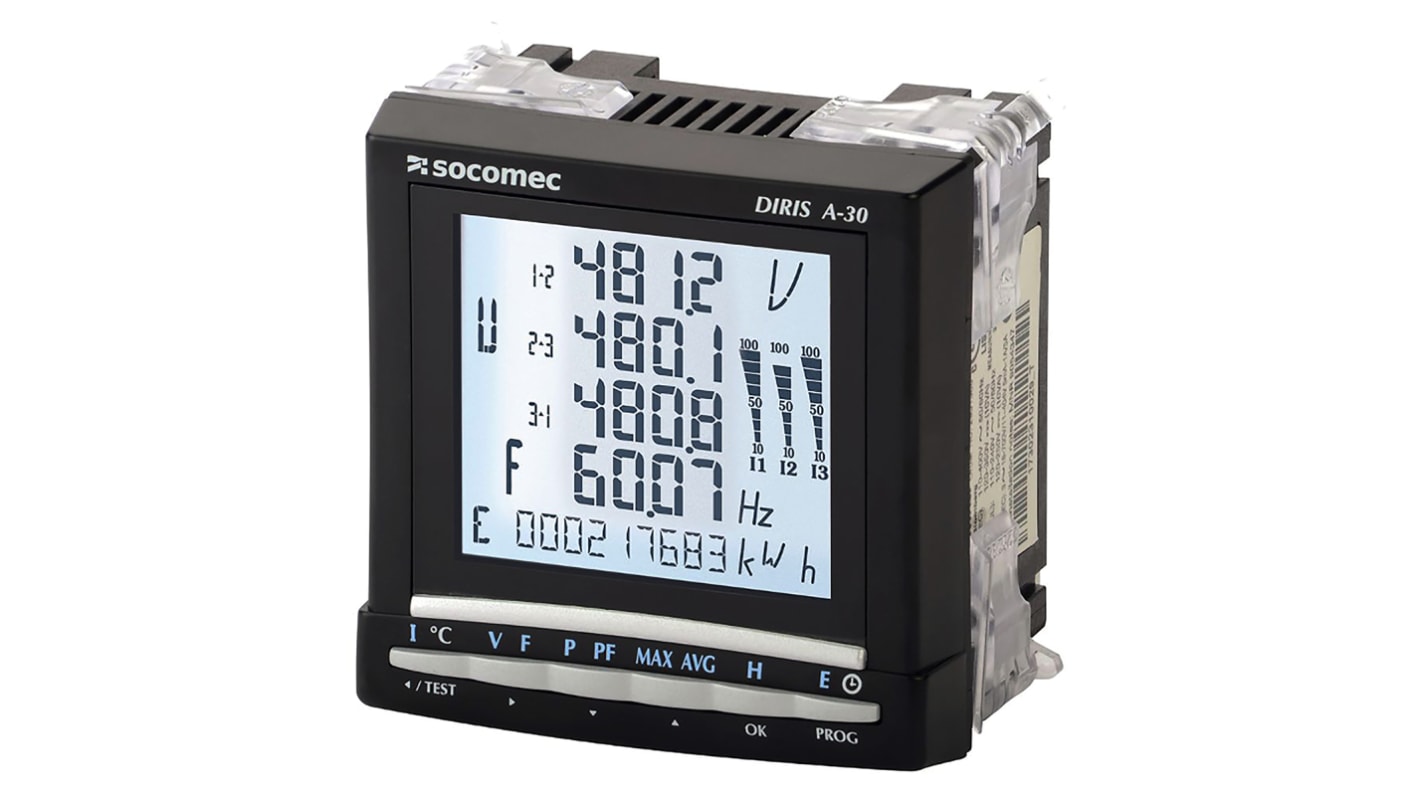

Socomec 1, 3 Phase Backlit LCD Energy Meter

Name: Socomec 1, 3 Phase Backlit LCD Energy Meter
Brand: Socomec
SKU: 184-9453
Price: 26808.39 ZAR
Availability: InStock

Subtotal (1 unit)**

R 23 311 64

(exc. VAT)

R 26 808 39

(inc. VAT)

Usually in stock

Not Available for premium delivery

Units	Per unit
1 +	R 23 311,64

**price indicative

Attribute	Value
Series	DIRIS A30
Cutout Width	92mm
Cutout Height	92mm
Display Type	Backlit LCD
Number of Phases	1, 3
Pulse Output	Yes
Depth	95mm
Meter Accuracy	0.1 (Frequency) %, 0.2 (Current) %, 0.2 (Voltage) %, 0.5 (Power Factor) %, 0.5 (Power) %, Class 0.5 S (IEC 62053-22), Class 2 (IEC 62053-23)
Minimum Temperature	-10°C
Maximum Temperature	+55°C
Meter Type	Digital
Maximum Measurement	1039 (Voltage Between Phases) V ac, 11 (Current) kA, 600 (Voltage Between Phase and Neutral) V ac, 65 (Frequency) Hz
Minimum Measurement	0 (Current) kA, 28 (Voltage Between Phase and Neutral) V ac, 45 (Frequency) Hz, 50 (Voltage Between Phases) V ac
Measurement Range	0 → 11 (Current) kA, 28 → 600 (Voltage Between Phase and Neutral) V ac, 45 → 65 (Frequency) Hz, 50 → 1039 (Voltage Between Phases) V ac
