    Schneider Electric Acti 9 3 Phase Busbar, 415V ac, 18mm Pitch

    RS stock no.:
    776-2730
    Mfr. Part No.:
    A9XPH324
    Manufacturer:
    Schneider Electric
    Schneider Electric
    View all Busbars
    5 In stock in South Africa for delivery next working day in national main centres. (Delivery T&C's apply)
    Add to Basket
    units

    Added

    Price (Excl VAT) Each

    R 856.94

    (exc. VAT)

    R 985.48

    (inc. VAT)

    unitsPer unit
    1 +R 856.94
    RS stock no.:
    776-2730
    Mfr. Part No.:
    A9XPH324
    Manufacturer:
    Schneider Electric
    COO (Country of Origin):
    DE

    Legislation and Compliance

    COO (Country of Origin):
    DE

    Product Details

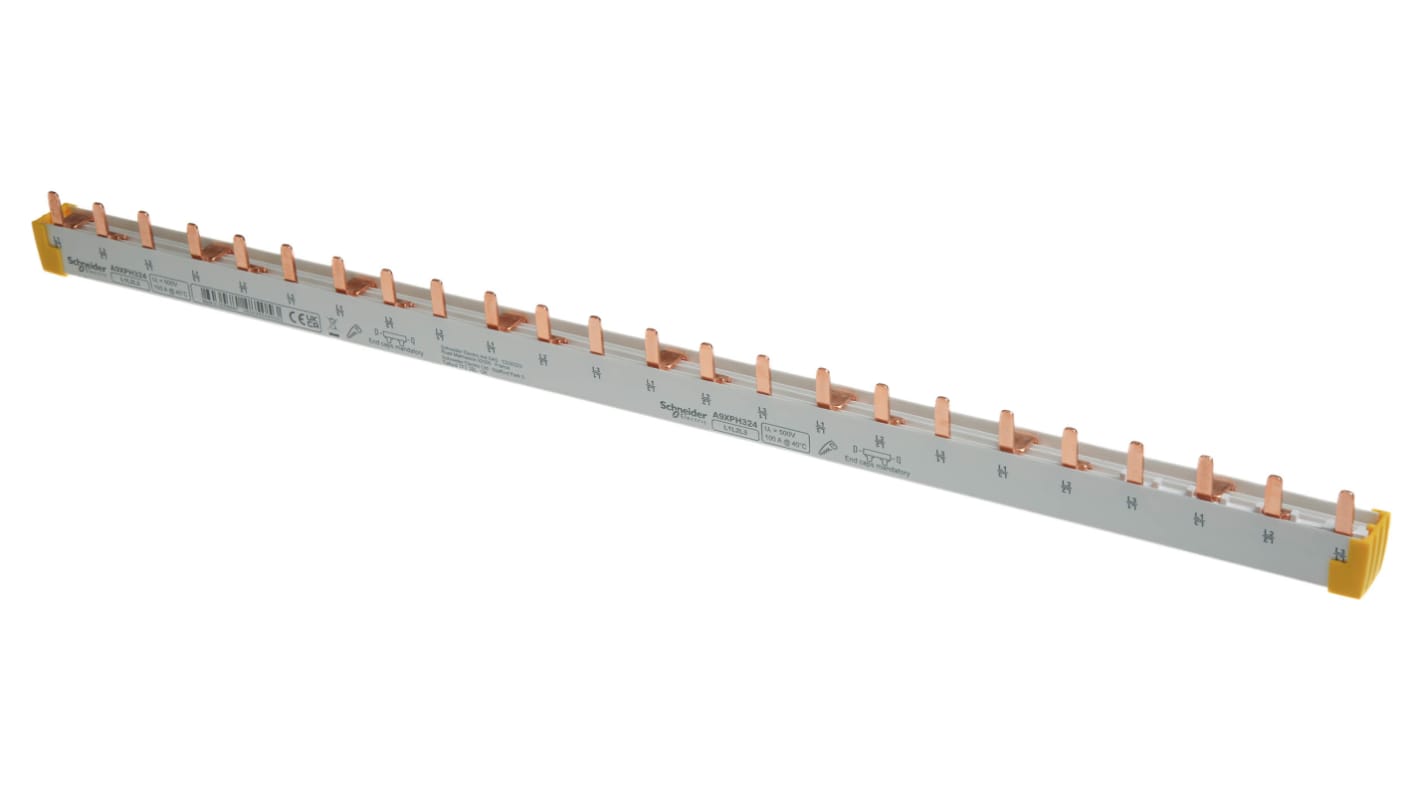

    Schneider Electric 3-Phase Comb Busbar, 415V AC, 18mm Pitch - Acti9 Series - A9XPH324


    Connect switchgear easily with this user-friendly busbar from Schneider Electric. It's suitable for use in low-voltage switchboards and is designed to offer an optimal customer experience. Prefabricated connections cut down on assembly time and the unit can be installed in one simple operation. The busbar is fully insulated to reduce the risk of electrical shock and includes protective end caps for improved safety. Clip-on covers add a further level of protection and are easily cut to allow connections to pass through to the switchgear.

    Features & Benefits


    • Fire-resistant to reduce the chance of an electrical fire causing a safety hazard
    • Optional mounting locations that include either the top or bottom of tunnel-type and double terminals
    • IP20 (ingress protection) rated when used with end-caps for protection against touch and objects larger than 12mm

    Applications


    • Power transformers
    • Rail industry
    • Industrial lighting systems
    • Automated production lines

    What is switchgear used for?


    Switchgear is used in an electric system to power off equipment so maintenance work can be done or downstream faults cleared. Switchgear components include electrical disconnect switches, fuses and circuit breakers. Together these devices control, protect and isolate electrical equipment.


    Specification

    AttributeValue
    Rated Operational Voltage415V ac
    RangeActi 9
    Electrical Phase3
    Better World ProductYes
    Current Rating100A
    SeriesiC60
    Pitch18mm
    ColourWhite
    For Use WithiC60, iID, iID K, iK60, iSW, iSW-NA
    Better World VerificationGreen Premium
