onsemi M74VHC1GT50DTT1G Non-Inverting CMOS, Single Ended Buffer, 5-Pin TSOP
- RS stock no.:
- 124-9989
- Mfr. Part No.:
- M74VHC1GT50DTT1G
- Manufacturer:
- onsemi

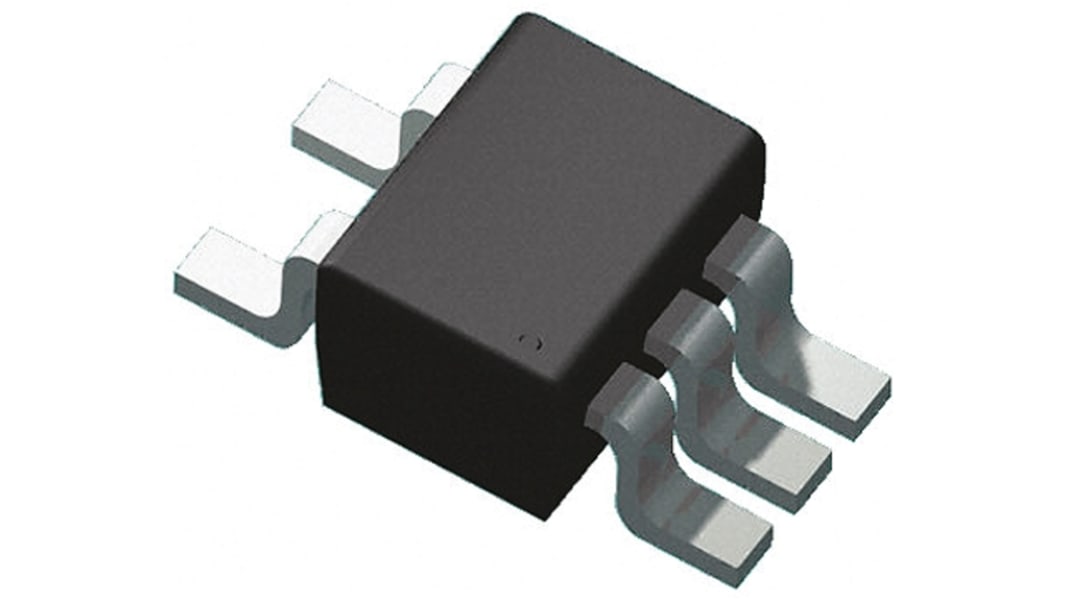

Image representative of range
1 / 1
Discontinued product
- RS stock no.:
- 124-9989
- Mfr. Part No.:
- M74VHC1GT50DTT1G
- Manufacturer:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Logic Family | VHC | |
| Logic Function | Buffer | |
| Number of Channels | 1 | |
| Schmitt Trigger Input | No | |
| Input Type | Single Ended | |
| Output Type | CMOS, Single Ended | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | TSOP | |
| Pin Count | 5 | |
| Maximum High Level Output Current | -8mA | |
| Maximum Low Level Output Current | 8mA | |
| Maximum Propagation Delay Time @ Maximum CL | 25.5 ns @ 50 pF | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Dimensions | 3 x 1.5 x 1mm | |
| Width | 1.5mm | |
| Minimum Operating Supply Voltage | 1.65 V | |
| Minimum Operating Temperature | -55 °C | |
| Length | 3mm | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +125 °C | |
| Height | 1mm | |
