Bulk discount available
Subtotal (1 unit)*
R 852,90
(exc. VAT)
R 980,84
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 - 4 | R 852.90 |
| 5 - 9 | R 831.58 |
| 10 - 24 | R 806.63 |
| 25 + | R 774.36 |
*price indicative
- RS stock no.:
- 194-6862
- Mfr. Part No.:
- FLCTE15-XL
- Manufacturer:
- INA
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Bearing Unit | |
| Inside Diameter | 15 mm | |
| Material | Cast Iron | |
| Length | 58.7mm | |
| Width | 30.5 mm | |
| Depth | 81mm | |
| Mount Hole Size | 6.6 mm | |
| Mount Hole Centre-to-Centre | 63.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Bearing Unit | ||
Inside Diameter 15 mm | ||
Material Cast Iron | ||
Length 58.7mm | ||
Width 30.5 mm | ||
Depth 81mm | ||
Mount Hole Size 6.6 mm | ||
Mount Hole Centre-to-Centre 63.5mm | ||
Standards/Approvals No | ||

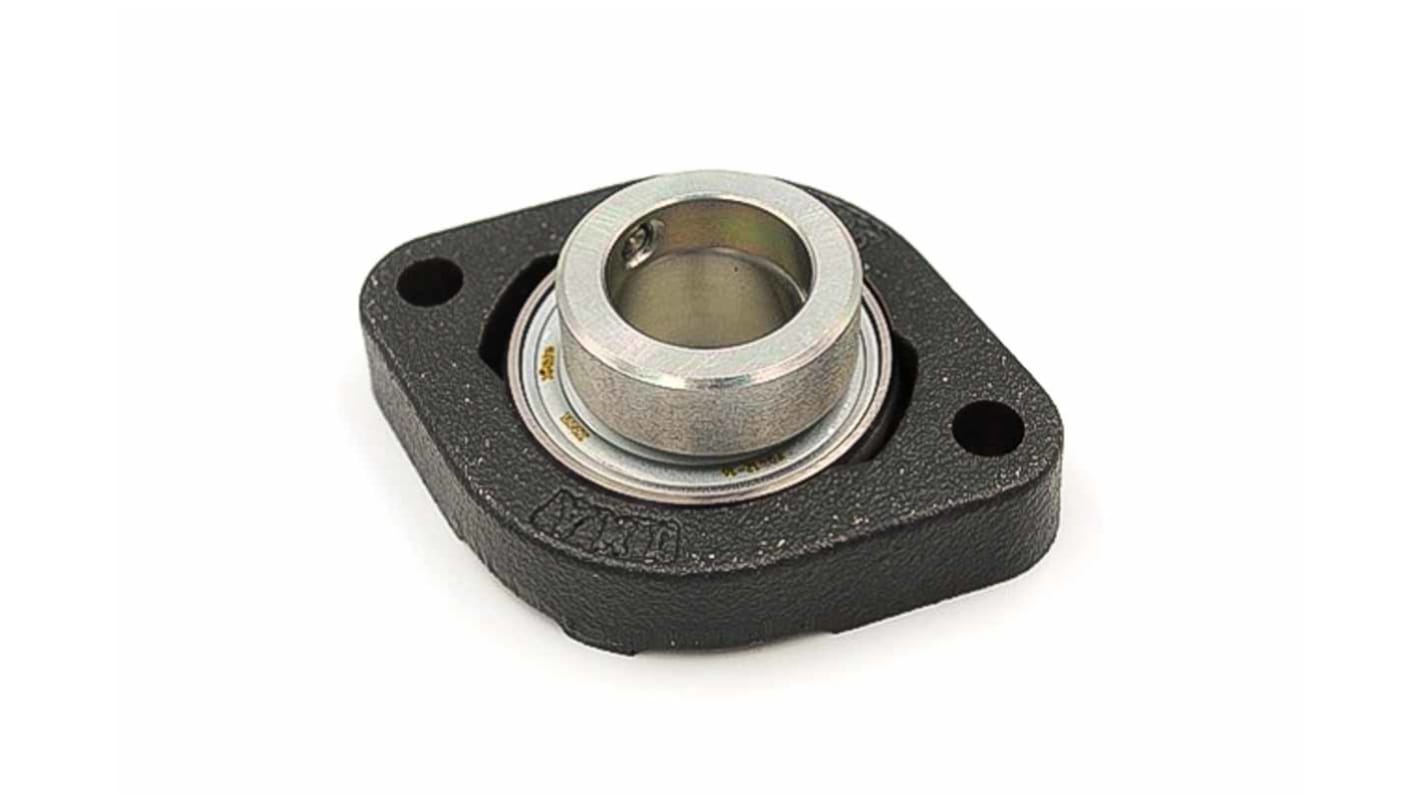

INA housing units are available as plummer block, flanged and take-up housing units in numerous different designs. The units are ready-to-fit and comprise INA cast iron or sheet steel housings in which INA radial insert ball bearings are fitted. In order to ensure function and reliability under all operating conditions, the bearings and housings are matched to each other
Due to the spherical outside surface of the bearing outer ring and the concave housing bore, housing units can compensate for static angular misalignment of the shaft, see link
The units are used predominantly as locating bearings, but are also suitable as non-locating bearings under low loads and speeds
The housings are screw mounted on the adjacent construction. Less stringent tolerances are sufficient for the screw mounting surfaces.
