- RS stock no.:
- 535-2592
- Mfr. Part No.:
- V23134J1053D642 1-1393304-1
- Manufacturer:
- TE Connectivity
12 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
18 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Added
Price (Excl VAT) Each
R 310,57
(exc. VAT)
R 357,16
(inc. VAT)
Units | Per unit |
1 - 14 | R 310,57 |
15 - 24 | R 302,81 |
25 + | R 293,73 |
- RS stock no.:
- 535-2592
- Mfr. Part No.:
- V23134J1053D642 1-1393304-1
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PT
Product Details

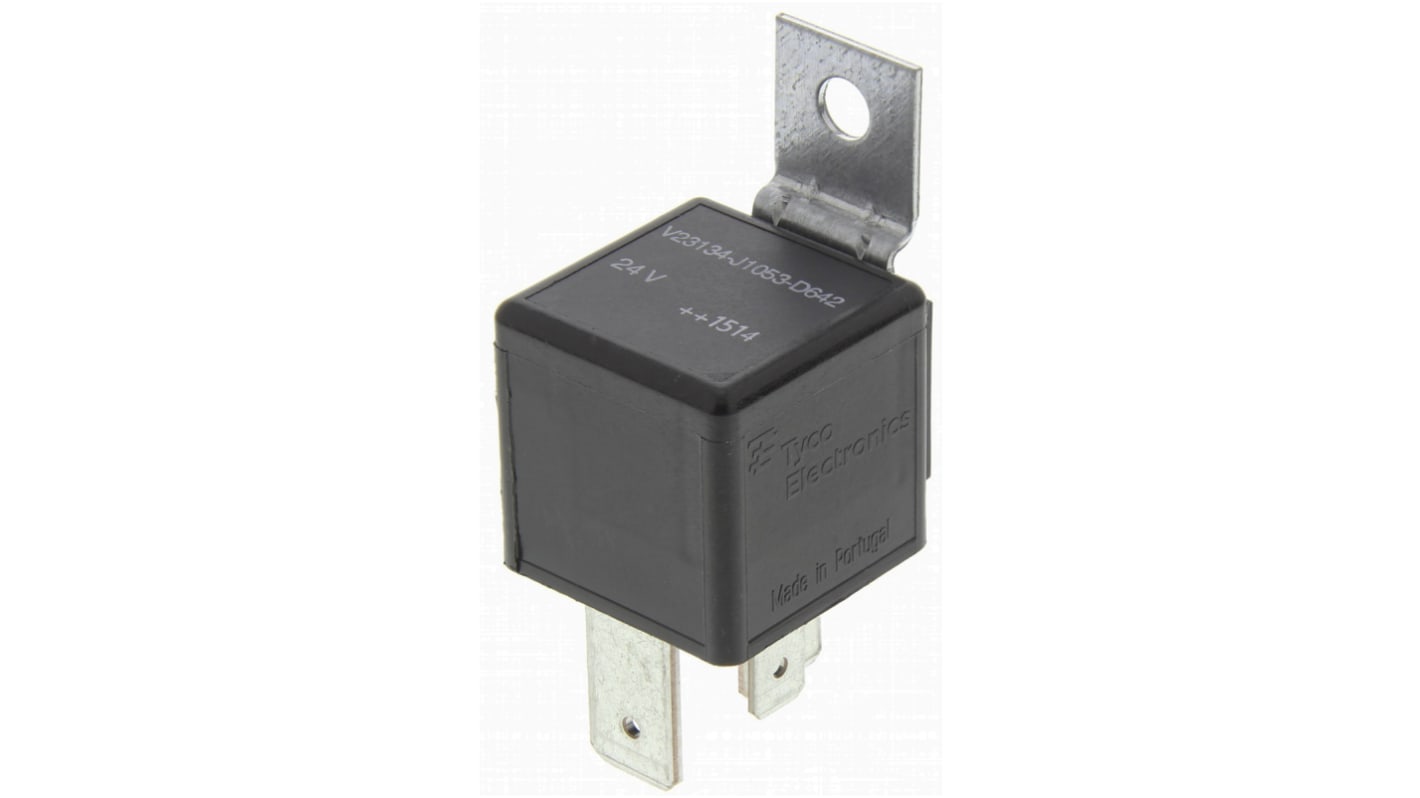

TE Connectivity Non-latching Relay
The TE Connectivity F-7 series panel mount automotive relay has a contact configuration of SPNO. It is actuated with 24VDC coil voltage and 25A switching current. It is designed for a variety of automotive applications.
Features and Benefits
Coil power is 1.6W
Coil resistance is 332ohm
Contact material is AgNi0.15
Operating temperature ranges between -40°C and 125°C
Terminal type is quick connect
Coil resistance is 332ohm
Contact material is AgNi0.15
Operating temperature ranges between -40°C and 125°C
Terminal type is quick connect
Applications
Coil suppression circuits
Cooling fan circuits
Wiper circuits
Cooling fan circuits
Wiper circuits
Certifications
IP54 rated
Specification
Attribute | Value |
---|---|
Coil Voltage | 24V dc |
Coil Resistance | 332Ω |
Contact Configuration | SPST |
Number of Poles | 1 |
Switching Current | 25A |
Mounting Type | Panel Mount |
Terminal Type | Quick Connect |
Maximum Switching Power DC | 800 W |
Maximum Operating Temperature | +125°C |
Series | F7 |
Minimum Operating Temperature | -40°C |
Contact Material | Silver Alloy |
Depth | 25.9mm |
Height | 57.9mm |
Length | 25.9mm |
