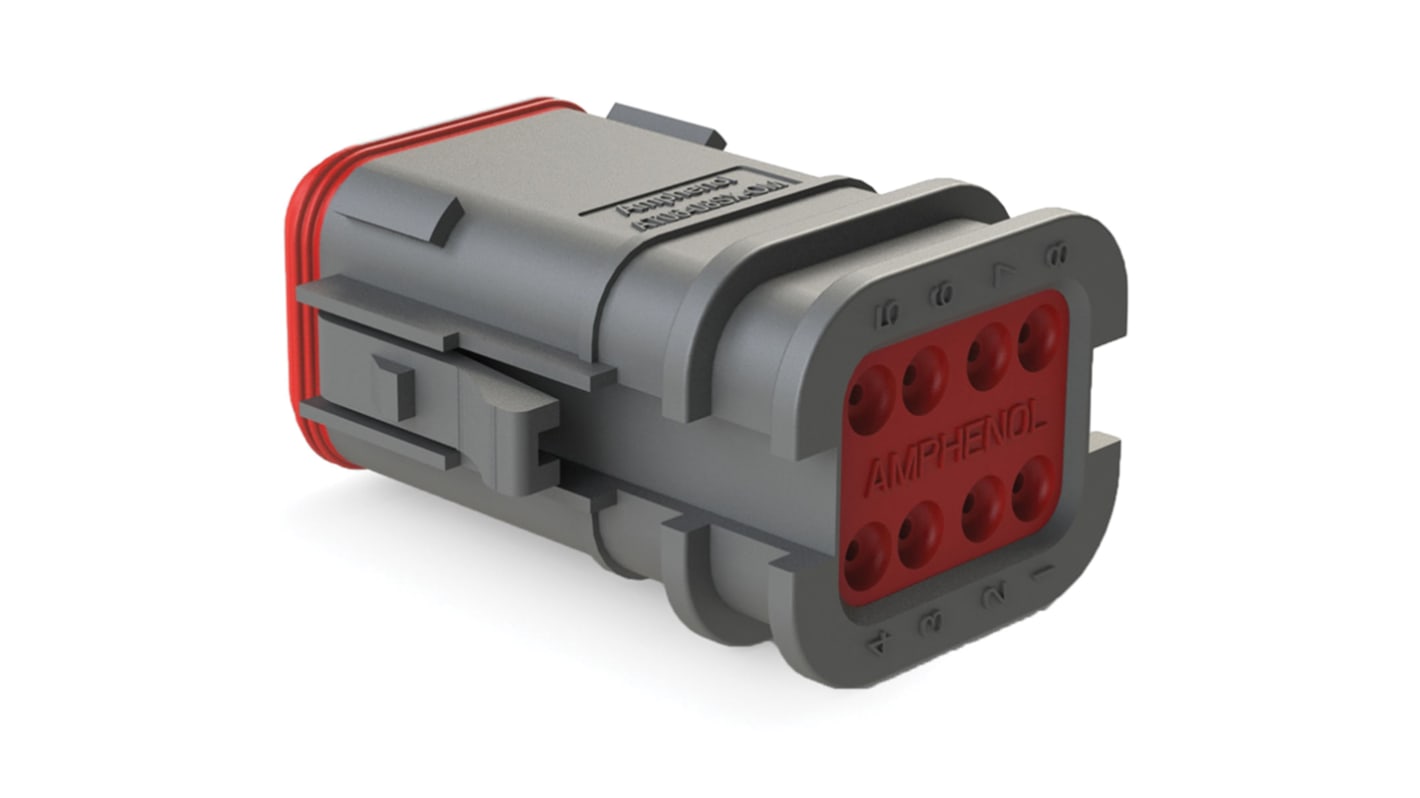

Amphenol Industrial, AT06 Automotive Connector Female Grey Cable 8 Way Crimp Termination AT06-08SA-OMGRY

Image representative of range

View all Automotive Connectors

Subtotal (1 box of 500 units)*

R 22 676,50

(exc. VAT)

R 26 078,00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Box*
500 +R 45.353R 22,676.50

*price indicative

RS stock no.:
195-5963
Mfr. Part No.:
AT06-08SA-OMGRY
Manufacturer:
Amphenol Industrial
Find similar products by selecting one or more attributes.
Select all

Brand

Amphenol Industrial

Product Type

Automotive Connector

Sub Type

Automotive Connector

Termination Type

Crimp

Number of Contacts

8

Gender

Female

Current

13A

Number of Rows

2

Mount Type

Cable

Series

AT06

Colour

Grey

Cord Included

No

IP Rating

IP67

Diameter

0.145in

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

125°C

Depth

44.6mm

Standards/Approvals

RoHS

Width

36.8mm

Height

23.7mm

Housing Material

Thermoplastic

COO (Country of Origin):
CN
AT Series™ connectors are a high-performance, cost-effective solution able to be used in a variety of interconnect applications: Heavy Duty, Transportation, Marine, Diagnostic, Military, Alternative Energy and Agricultural. They contain superior environmental seals and seal retention capabilities.

The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties. The sealing system is comprised of front and rear silicone seals, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.
