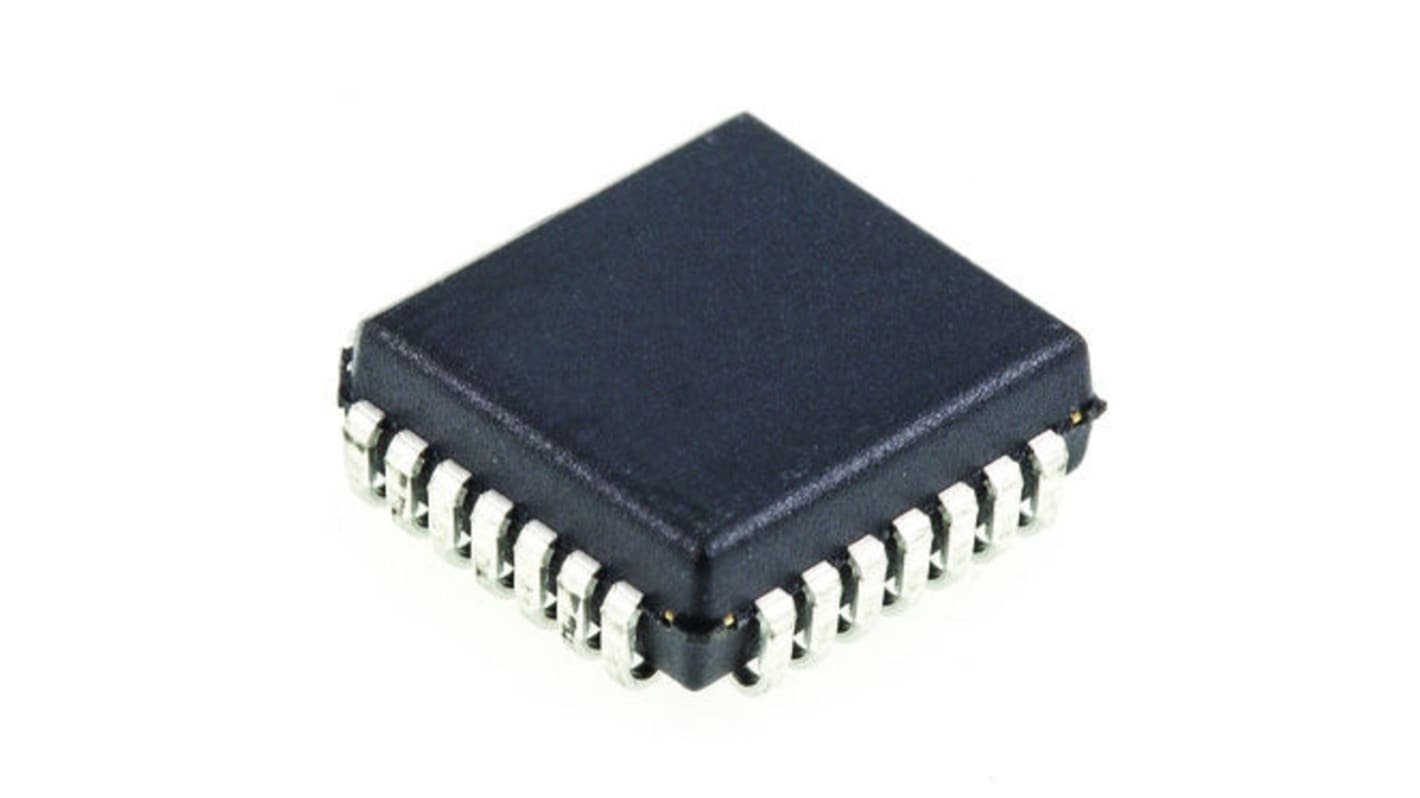

Renesas Electronics IS82C54-10Z, Programmable Timer Circuit 10MHz, 28-Pin PLCC
- RS stock no.:
- 921-5677
- Mfr. Part No.:
- IS82C54-10Z
- Manufacturer:
- Renesas Electronics
152 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 739,08
(exc. VAT)
R 849,94
(inc. VAT)
| Units | Per unit |
| 1 - 24 | R 739,08 |
| 25 - 49 | R 720,60 |
| 50 - 99 | R 698,98 |
| 100 - 499 | R 671,02 |
| 500 + | R 644,18 |
- RS stock no.:
- 921-5677
- Mfr. Part No.:
- IS82C54-10Z
- Manufacturer:
- Renesas Electronics
Technical data sheets
Legislation and Compliance
Product Details
82C54 CMOS Programmable Interval Timer, Intersil
8 MHz to 12 MHz Clock Input Frequency
Three Independent 16-Bit Counters
Six Programmable Counter Modes
Status Read Back Command
Binary or BCD Counting
Fully TTL Compatible
Single 5 V Power Supply
Low Power
Three Independent 16-Bit Counters
Six Programmable Counter Modes
Status Read Back Command
Binary or BCD Counting
Fully TTL Compatible
Single 5 V Power Supply
Low Power
Specification
Attribute | Value |
|---|---|
| Mounting Type | Surface Mount |
| Timer Type | Programmable |
| Package Type | PLCC |
| Number of Internal Timers | 1 |
| Pin Count | 28 |
| Maximum Input Frequency | 10MHz |
| Minimum Operating Supply Voltage | 4.5 V |
| Maximum Operating Supply Voltage | 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Low Level Output Current | 2.5mA |
| Maximum High Level Output Current | -2.5mA |
| Maximum Propagation Delay Time @ Maximum CL | 100 ns @ 5 V |
| Height | 3.69mm |
| Width | 11.58mm |
| Dimensions | 11.58 x 11.58 x 3.69mm |
| Length | 11.58mm |
