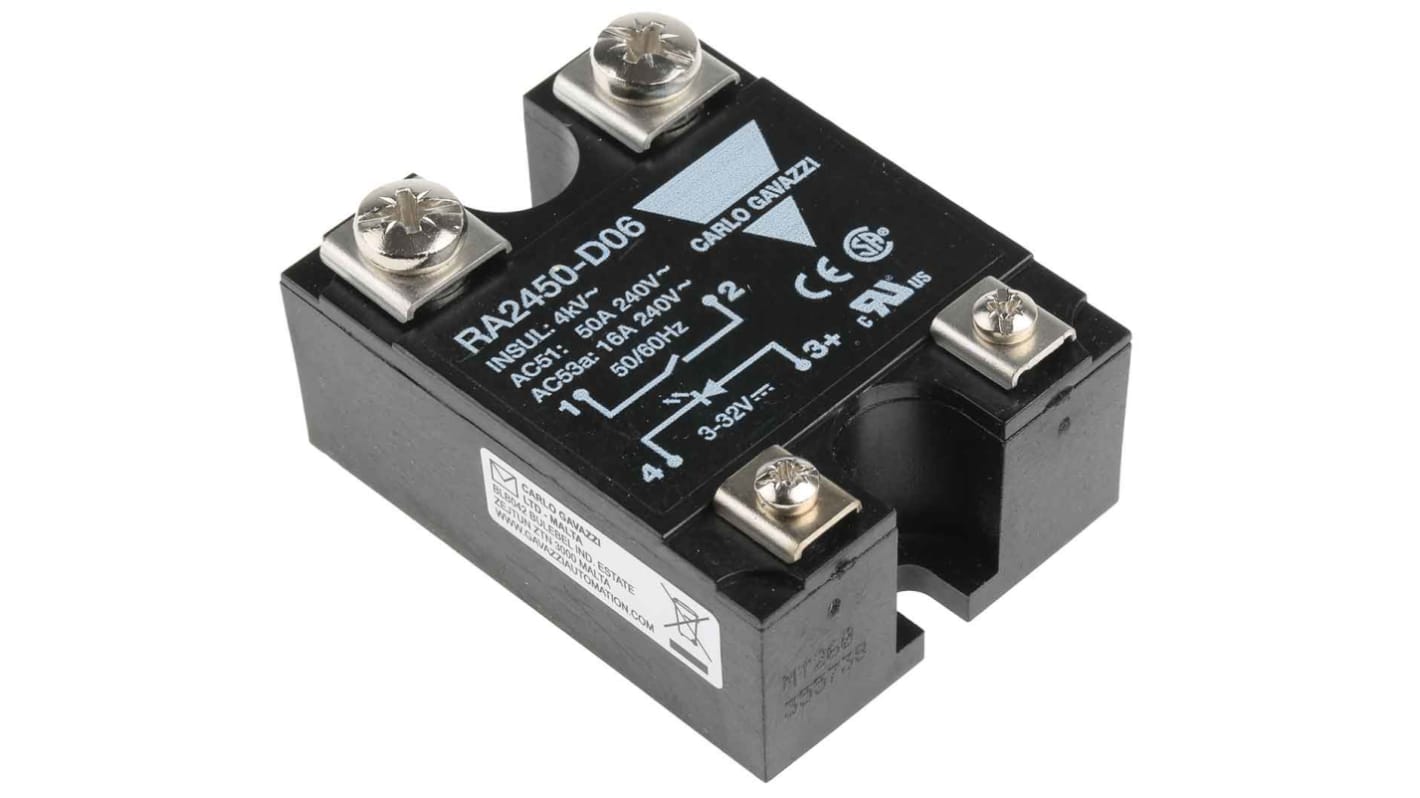

Carlo Gavazzi RA 24 Series Solid State Relay, 50 A Load, Panel Mount, 280 V ac Load, 32 V dc Control
- RS stock no.:
- 856-8371
- Mfr. Part No.:
- RA2450-D06
- Manufacturer:
- Carlo Gavazzi
29 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 1 827,03
(exc. VAT)
R 2 101,08
(inc. VAT)
| Units | Per unit |
| 1 + | R 1 827,03 |
- RS stock no.:
- 856-8371
- Mfr. Part No.:
- RA2450-D06
- Manufacturer:
- Carlo Gavazzi
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MT
Product Details
Carlo Gavazzi RA2 & RA4 Series Zero Switching
Carlo Gavazzi RA2 series of zero switching solid state relays provide the user with a compact solution without compromising on performance or reliability
2 pole AC solid state relay with zero-switching functionality
Suitable for resistive & inductive AC loads
Direct copper bonding (DCB) technology
LED status indication
Suitable for resistive & inductive AC loads
Direct copper bonding (DCB) technology
LED status indication
Zero Voltage Relays
Note
Temperature can affect current rating; please consult the data sheet for potential derating.
Specification
Attribute | Value |
|---|---|
| Maximum Load Current | 50 A |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 280 V ac |
| Minimum Load Voltage | 24 V ac |
| Minimum Control Voltage | 3 V dc |
| Maximum Control Voltage | 32 V dc |
| Switching Type | Zero |
| Control Voltage Range | 3 → 32 V dc |
| Minimum Load Current | 250 mA |
| Number of Poles | 1 |
| Terminal Type | Screw |
| Output Device | Varistor |
| Relay Type | Solid State Relay |
| Load Voltage Range | 24 → 280V ac |
| Maximum Turn On Time | 1 s |
| Series | RA 24 |
| Dimensions | 44.5 x 57.8 x 24.5mm |
| Special Features | AC Solid State Relay, Zero Switching, Direct Copper Bonding Technology |
| Minimum Operating Temperature | -20°C |
| Depth | 57.8mm |
| Capacitance | 8pF |
| Height | 24.5mm |
| Off State Leakage Current | 3 mA |
| Operating Temperature Range | -20 → +70°C |
| Length | 44.5mm |
| Maximum Operating Temperature | +70°C |
