Siemens Solid State Relay, 40 A Load, DIN Rail Mount, 460 V Load, 24 V dc Control

RS stock no.:: 467-4835
Mfr. Part No.:: 3RF2340-1AA04
Manufacturer:: Siemens

Siemens Solid State Relay, 40 A Load, DIN Rail Mount, 460 V Load, 24 V dc Control

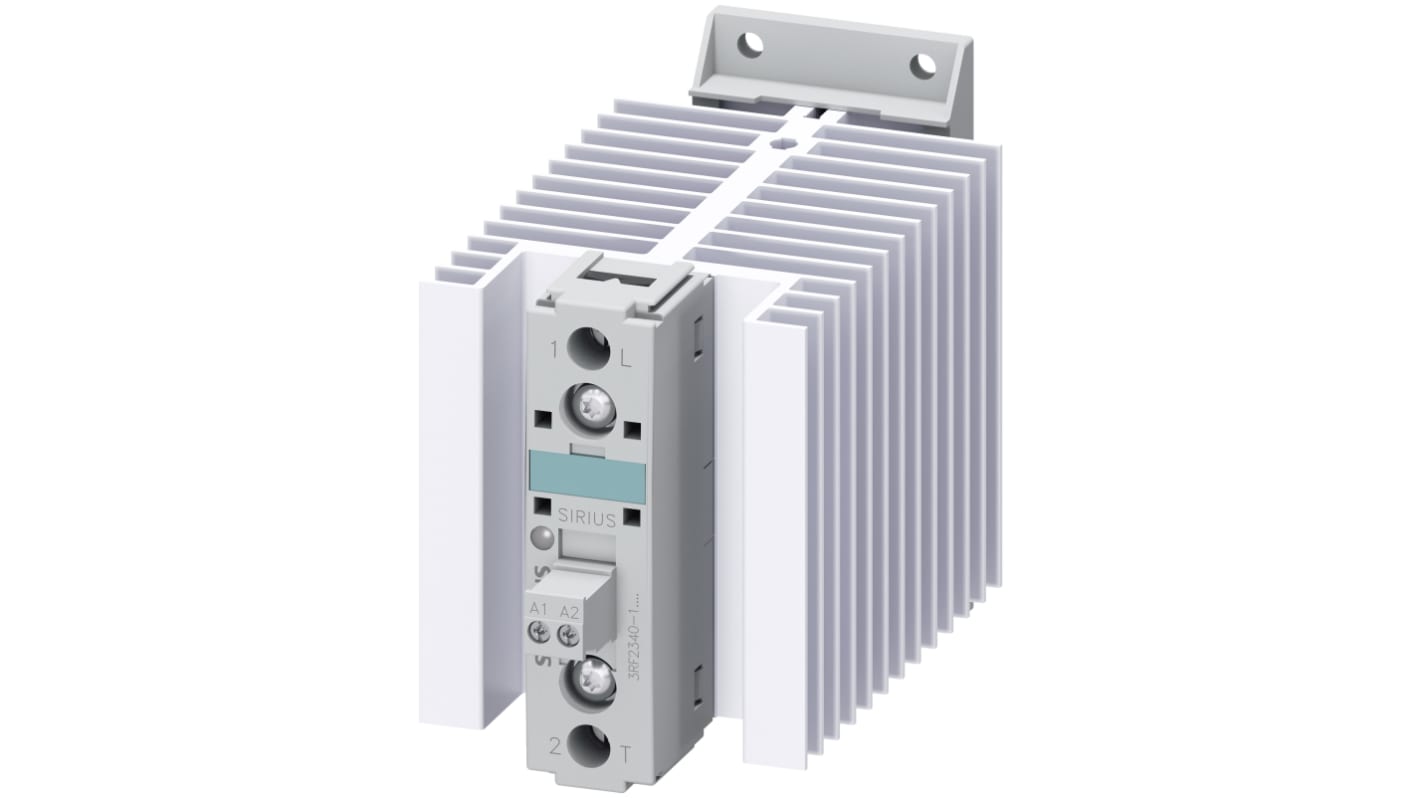

Image representative of range

3 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)

Not Available for premium delivery

Added

Price (Excl VAT) Each

R 2 151,74

(exc. VAT)

R 2 474,50

(inc. VAT)

Units	Per unit
1 - 9	R 2 151,74
10 - 14	R 2 097,95
15 +	R 2 035,01

RS stock no.:: 467-4835
Mfr. Part No.:: 3RF2340-1AA04
Manufacturer:: Siemens

Technical data sheets

Legislation and Compliance

Not Applicable

COO (Country of Origin):: DE

Product Details

Contactor - 3RF23 Range

Single phase currents up to 50A AC can be switched
2 voltage ranges available both with 24Vdc control voltage
Isolation voltage; 600Vac
Blocking voltage 800Vac (24-230Vac version), 1200Vac (48-460Vac version)
LED status indicator
Zero point switching for resistive loads
Switching currents rated at 40°C
IP20 rating
Screw terminals

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Specification

Attribute	Value
Maximum Load Current	40 A
Mounting Type	DIN Rail
Maximum Load Voltage	460 V
Minimum Load Voltage	48 V
Maximum Control Voltage	24 V dc
Minimum Control Voltage	15 V dc
Switching Type	Zero Cross
Control Voltage Range	15 → 24 V dc
Range	Sirius Classic
Minimum Load Current	0.5 A
Terminal Type	Screw
Contact Configuration	SPST
Output Device	Thyristor
Load Voltage Range	48 → 460V
Maximum Turn On Time	8.33 ms
Dimensions	67.5 x 156 x 100mm
Height	100mm
Operating Temperature Range	-25 → +60°C
Length	67.5mm
Maximum Operating Temperature	+60°C
Depth	156mm
Minimum Operating Temperature	-25°C
Off State Leakage Current	10 mA
