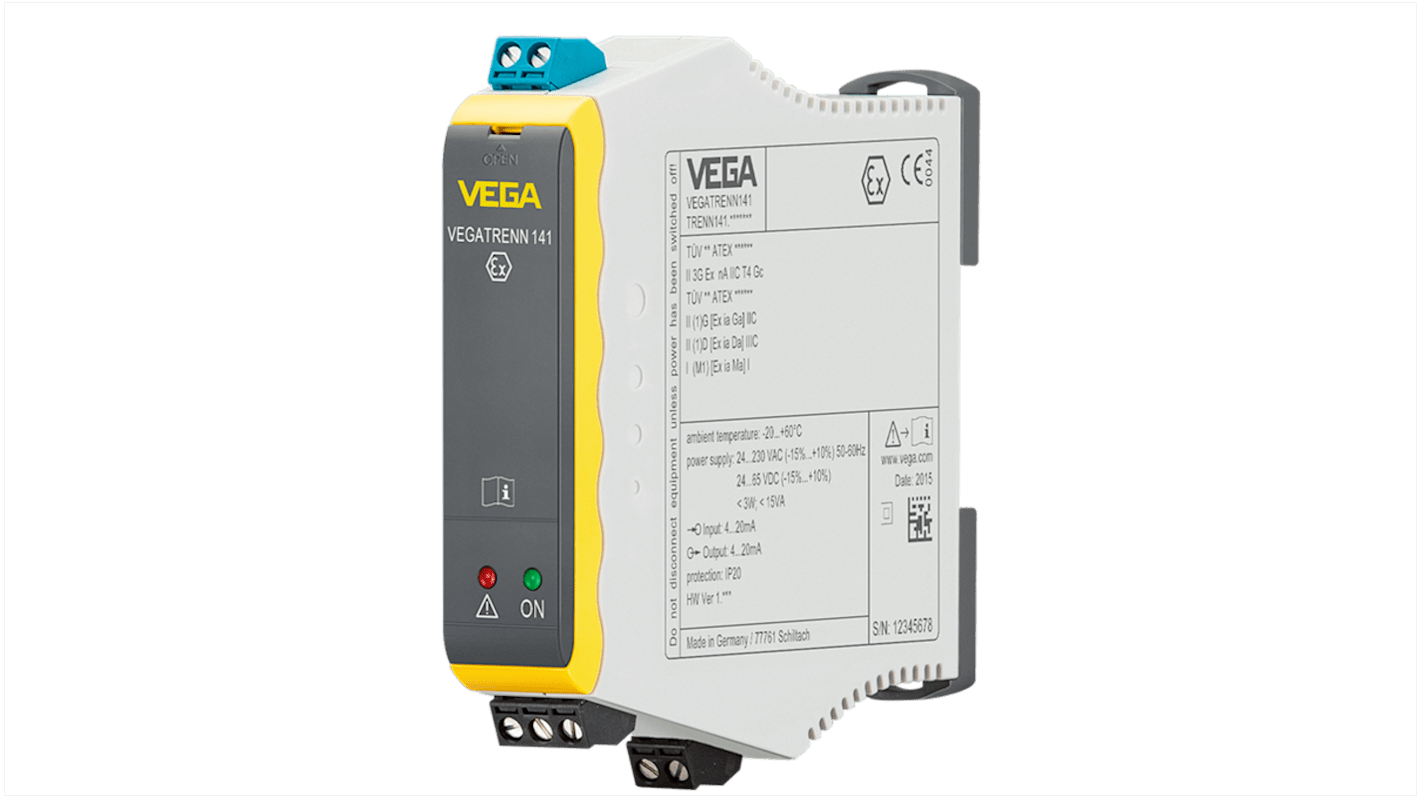

Vega VEGATRENN 141 Series Galvanic Isolator, Current Input, 230 V, 65V ac Supply
- RS stock no.:
- 227-0464
- Mfr. Part No.:
- TRENN141.ACXXKBX
- Manufacturer:
- Vega
Subtotal (1 unit)*
R 4 337,94
(exc. VAT)
R 4 988,63
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 26 unit(s) shipping from 24 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 4,337.94 |
*price indicative
- RS stock no.:
- 227-0464
- Mfr. Part No.:
- TRENN141.ACXXKBX
- Manufacturer:
- Vega
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vega | |
| Product Type | Galvanic Isolator | |
| Input Signal Type | Current | |
| Input Range | 0.004 → 0.02 A | |
| Supply Voltage | 230, 65V | |
| Hazardous Area Certification | No | |
| Mount Type | Front | |
| Maximum Operating Temperature | 60°C | |
| Minimum Operating Temperature | -20°C | |
| Terminal Type | Screw | |
| IP Rating | IP20 | |
| Standards/Approvals | No | |
| Series | VEGATRENN 141 | |
| Select all | ||
|---|---|---|
Brand Vega | ||
Product Type Galvanic Isolator | ||
Input Signal Type Current | ||
Input Range 0.004 → 0.02 A | ||
Supply Voltage 230, 65V | ||
Hazardous Area Certification No | ||
Mount Type Front | ||
Maximum Operating Temperature 60°C | ||
Minimum Operating Temperature -20°C | ||
Terminal Type Screw | ||
IP Rating IP20 | ||
Standards/Approvals No | ||
Series VEGATRENN 141 | ||
Not Applicable
- COO (Country of Origin):
- DE
The Vega single channel VEGATRENN 141 is used for the power supply, galvanic separation, intrinsically safe power supply as well as signal transmission to Ex-approved 4 … 20 mA sensors installed in hazardous areas.
Universal power supply
Simple installation though carrier rail mounting as well as detachable, coded terminals
EX instrument supply in hazardous area with retransmission
