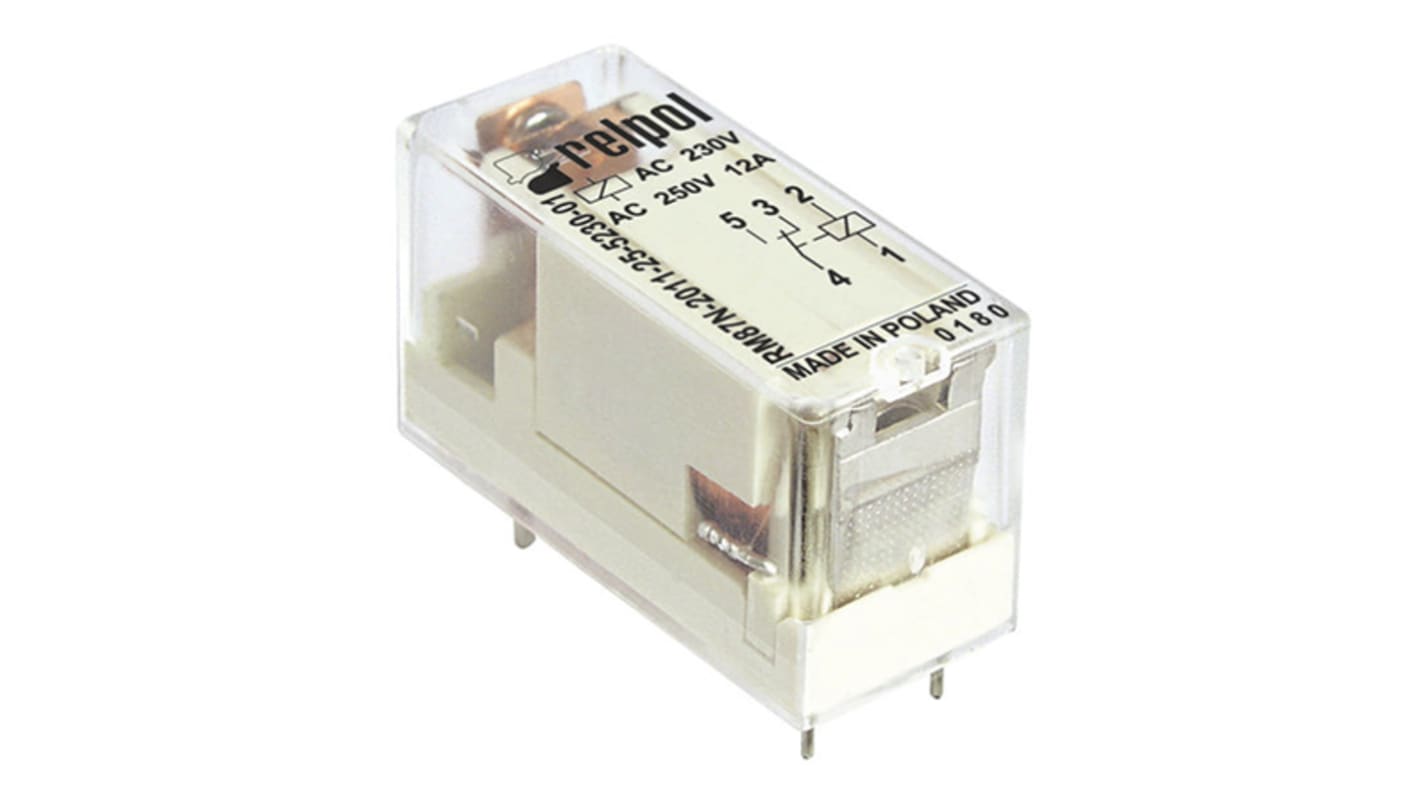

Relpol PCB Mount Power Relay, 12V dc Coil, 12A Switching Current, SPDT
- RS stock no.:
- 123-2090
- Mfr. Part No.:
- RM87N-2011-35-1012
- Manufacturer:
- Relpol
27 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 116,19
(exc. VAT)
R 133,62
(inc. VAT)
| Units | Per unit |
| 1 + | R 116,19 |
- RS stock no.:
- 123-2090
- Mfr. Part No.:
- RM87N-2011-35-1012
- Manufacturer:
- Relpol
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PL
Product Details
Relpol RM87N Series Miniature Relays
Relpol RM87 series miniature industrial relays for general purpose applications. All relays are designed for PCB mounting or in plug-in sockets.
Miniature dimensions
Cadmium-free contacts
AC and DC coils
RoHS compliant
Cadmium-free contacts
AC and DC coils
RoHS compliant
Specification
Attribute | Value |
|---|---|
| Coil Voltage | 12V dc |
| Contact Configuration | SPDT |
| Mounting Type | PCB Mount |
| Switching Current | 12A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Plug In |
| Maximum Switching Voltage AC | 440V |
| Maximum Switching Voltage DC | 24V dc |
| Length | 29mm |
| Coil Resistance | 360Ω |
| Coil Power | 480mW |
| Depth | 12.7mm |
| Standards Met | CSA, cULus, EAC, PN-EN 60335-1, VDE |
| Life | >100000 (Electrical) cycles, >30000000 (Mechanical) cycles |
| Isolation Coil To Contact | 5kV ac |
| Maximum Operating Temperature | +85°C |
| Height | 15.7mm |
| Contact Material | Silver Alloy |
| Minimum Operating Temperature | -40°C |
| Series | RM87 |
| Maximum Switching Power AC | 3 kVA |
