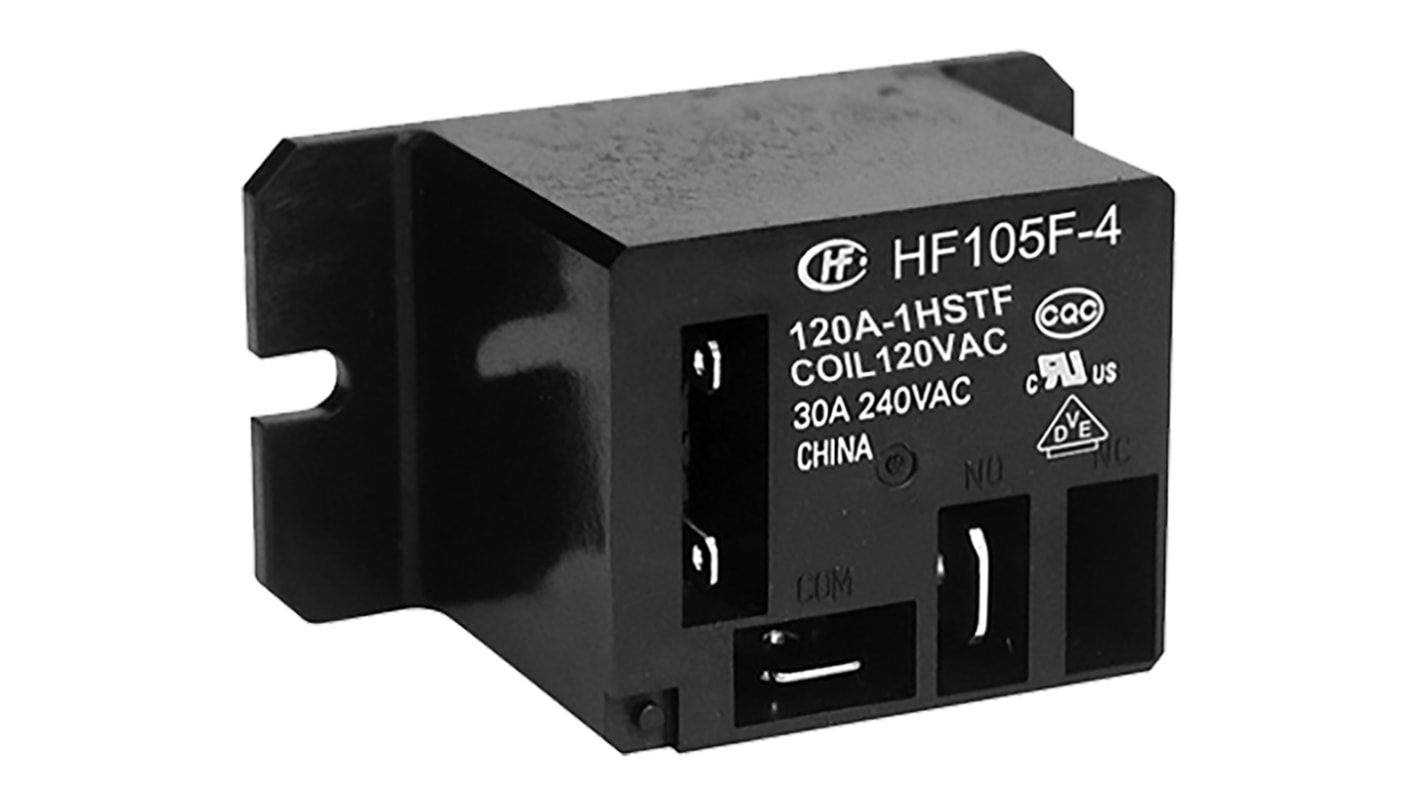

Hongfa Europe GMBH Flange Mount Power Relay, 120V ac Coil, 40A Switching Current, SPST
- RS stock no.:
- 121-8072
- Mfr. Part No.:
- HF105F-4/120A1HSTF
- Manufacturer:
- Hongfa Europe GMBH
40 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Price (Excl VAT) Each
R 99,54
(exc. VAT)
R 114,47
(inc. VAT)
| Units | Per unit |
| 1 + | R 99,54 |
- RS stock no.:
- 121-8072
- Mfr. Part No.:
- HF105F-4/120A1HSTF
- Manufacturer:
- Hongfa Europe GMBH
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
HF105F-4 Miniature High Power Relays
HongFa HF105F-4 series miniature high-power relays. The HF105F-4 range feature 2.8 mm width coil terminals in a plastic sealed flange mount housing.
Features and Benefits
30 A switching capability
AC and DC coil options available
2.5 kV dielectric strength
Heavy load up to 7200 VA
Silver tin oxide terminals
RoHS compliant
AC and DC coil options available
2.5 kV dielectric strength
Heavy load up to 7200 VA
Silver tin oxide terminals
RoHS compliant
Specification
Attribute | Value |
|---|---|
| Coil Voltage | 120V ac |
| Contact Configuration | SPST |
| Mounting Type | Flange Mount |
| Switching Current | 40A |
| Number of Poles | 1 |
| Latching | No |
| Terminal Type | Quick Connect |
| Maximum Switching Voltage AC | 277V |
| Maximum Switching Voltage DC | 28V dc |
| Length | 50mm |
| Coil Resistance | 2500Ω |
| Coil Power | 2W |
| Contact Material | Silver Alloy |
| Standards Met | cULus |
| Minimum Operating Temperature | -55°C |
| Height | 27.2mm |
| Maximum Operating Temperature | +60°C |
| Isolation Coil To Contact | 2.5kV ac |
| Life | 100000 operations |
| Depth | 27.8mm |
| Maximum Switching Power DC | 560 W |
| Maximum Switching Power AC | 7.2 kVA |
