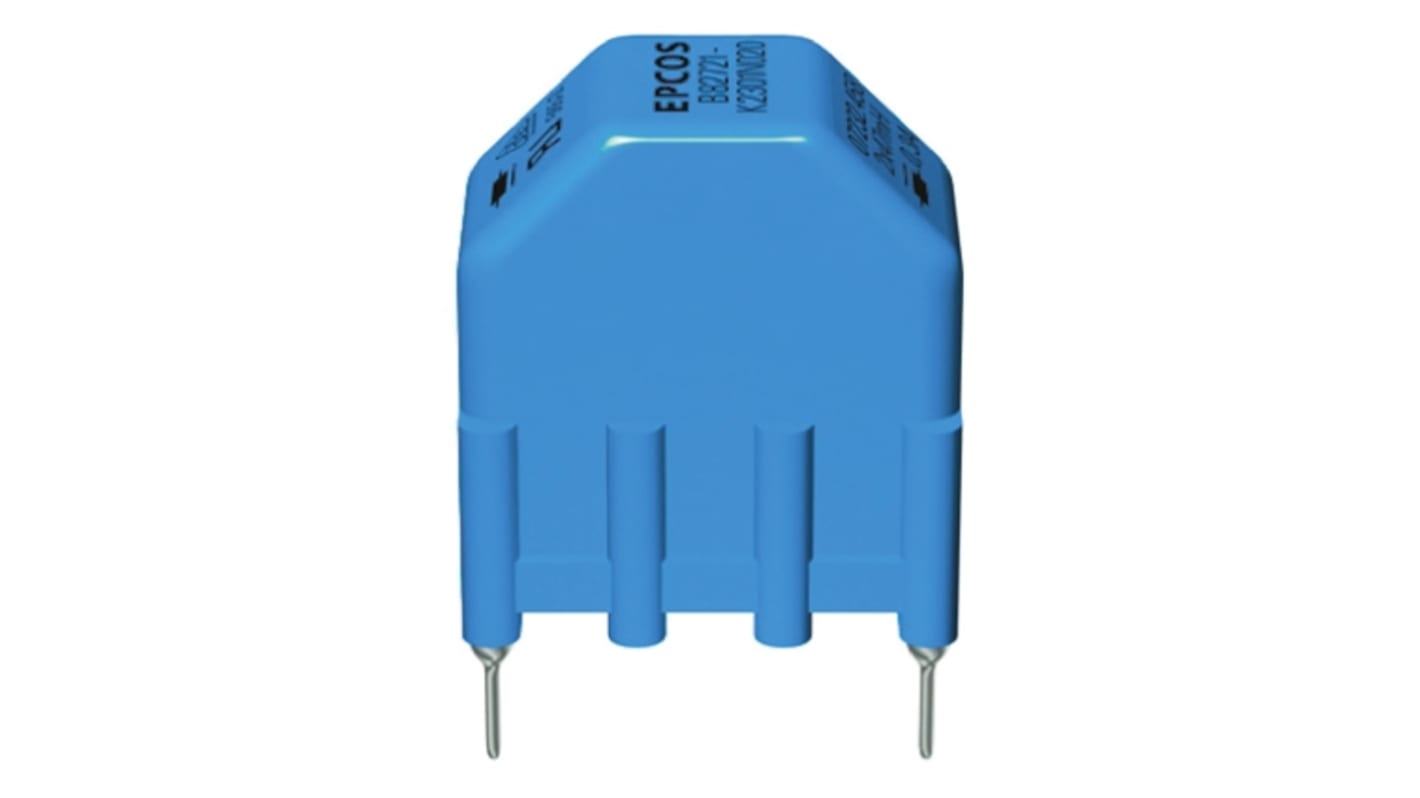

EPCOS 27 mH ±30% Ferrite Power Line Choke, 400mA Idc, 1.7Ω Rdc 250 V ac, B82721A
- RS stock no.:
- 772-0149
- Mfr. Part No.:
- B82721K2401N021
- Manufacturer:
- EPCOS
Bulk discount available
Subtotal (1 unit)**
R 43 61
(exc. VAT)
R 50 15
(inc. VAT)
Temporarily out of stock - back order for despatch when stock is available*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Units | Per unit |
|---|---|
| 1 - 9 | R 43,61 |
| 10 - 49 | R 42,52 |
| 50 - 99 | R 41,24 |
| 100 - 719 | R 39,59 |
| 720 + | R 38,01 |
**price indicative
- RS stock no.:
- 772-0149
- Mfr. Part No.:
- B82721K2401N021
- Manufacturer:
- EPCOS
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Inductance | 27 mH | |
| Maximum DC Current | 400mA | |
| Mounting Type | Radial | |
| Maximum DC Resistance | 1.7Ω | |
| Tolerance | ±30% | |
| Length | 18.2mm | |
| Depth | 13.2mm | |
| Height | 20.3mm | |
| Dimensions | 18.2 x 13.2 x 20.3mm | |
| Core Material | Ferrite | |
| Lead Pitch | 10 mm, 15mm | |
| Series | B82721A | |
| Terminal Type | Radial Leaded | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -40°C | |
| Lead Diameter | 0.7mm | |
Select all | ||
|---|---|---|
Brand EPCOS | ||
Inductance 27 mH | ||
Maximum DC Current 400mA | ||
Mounting Type Radial | ||
Maximum DC Resistance 1.7Ω | ||
Tolerance ±30% | ||
Length 18.2mm | ||
Depth 13.2mm | ||
Height 20.3mm | ||
Dimensions 18.2 x 13.2 x 20.3mm | ||
Core Material Ferrite | ||
Lead Pitch 10 mm, 15mm | ||
Series B82721A | ||
Terminal Type Radial Leaded | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -40°C | ||
Lead Diameter 0.7mm | ||
