Bourns 2.2 mH Ferrite DR Radial Inductor, Max SRF:0.8 MHz, Q:15, 360 mA Idc, 5.9 Ω Rdc, RLB
- RS stock no.:
- 736-1210
- Distrelec Article No.:
- 304-45-216
- Mfr. Part No.:
- RLB9012-222KL
- Manufacturer:
- Bourns

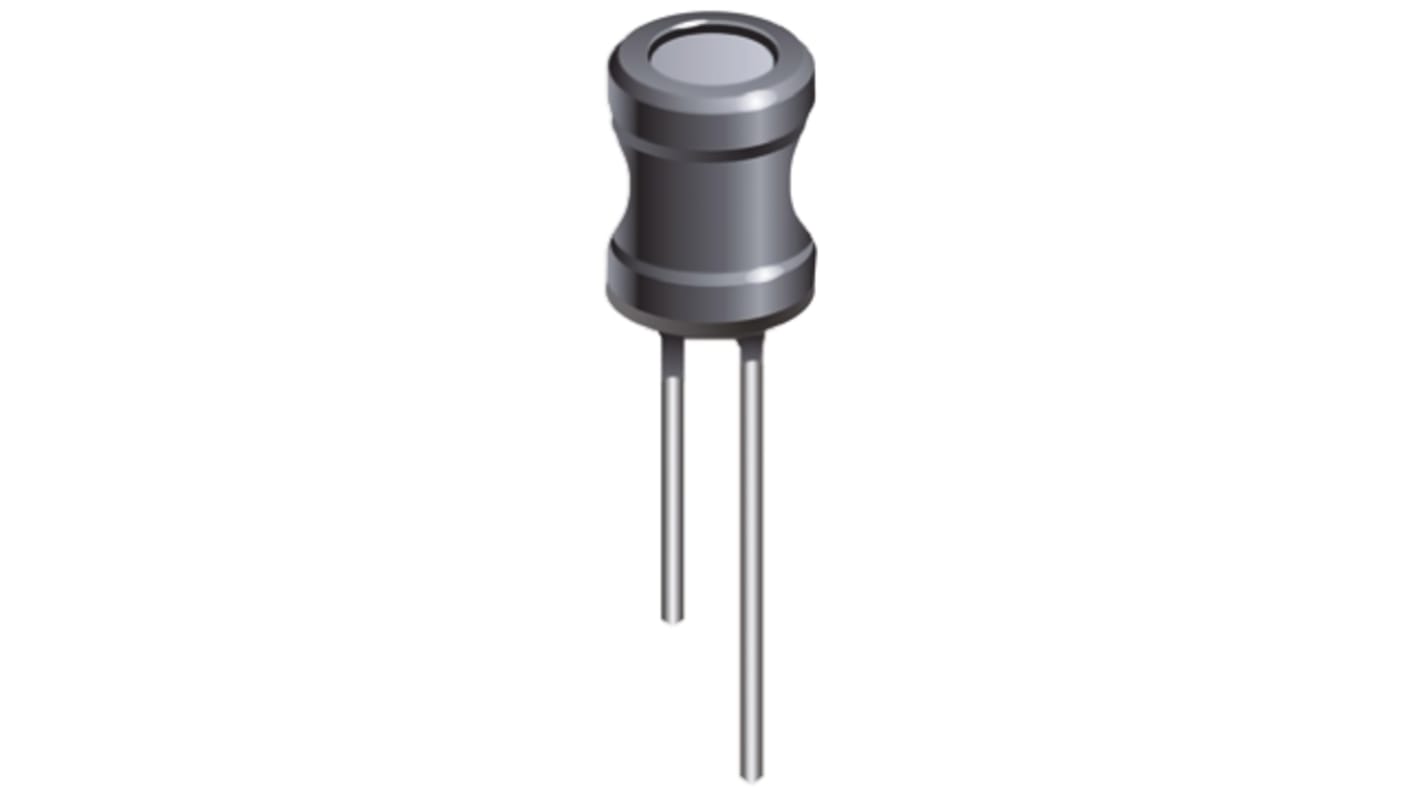

Image representative of range
Bulk discount available
View bulk pricing optionsSubtotal (1 bag of 10 units)*
R 85,64
(exc. VAT)
R 98,49
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 480 unit(s) shipping from 07 September 2026
- Plus 3,850 unit(s) shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 90 | R 8.564 | R 85.64 |
| 100 - 240 | R 8.35 | R 83.50 |
| 250 - 490 | R 8.10 | R 81.00 |
| 500 - 990 | R 7.776 | R 77.76 |
| 1000 + | R 7.465 | R 74.65 |
*price indicative
- RS stock no.:
- 736-1210
- Distrelec Article No.:
- 304-45-216
- Mfr. Part No.:
- RLB9012-222KL
- Manufacturer:
- Bourns
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Bourns | |
| Product Type | Radial Inductor | |
| Inductance | 2.2mH | |
| Maximum DC Current | 360mA | |
| Mount Type | Radial | |
| Maximum DC Resistance | 5.9Ω | |
| Diameter | 9mm | |
| Automotive Standard | No | |
| Lead Diameter | 0.65mm | |
| Height | 12.2mm | |
| Core Material | Ferrite DR | |
| Minimum Operating Temperature | -55°C | |
| Inductance Tolerance | ±10 % | |
| Maximum Self Resonant Frequency | 0.8MHz | |
| Maximum Operating Temperature | 125°C | |
| Length | 12.2mm | |
| Depth | 9mm | |
| Lead Pitch | 5mm | |
| Termination Style | Radial Lead | |
| Standards/Approvals | RoHS | |
| Series | RLB | |
| Minimum Quality Factor | 15 | |
| Select all | ||
|---|---|---|
Brand Bourns | ||
Product Type Radial Inductor | ||
Inductance 2.2mH | ||
Maximum DC Current 360mA | ||
Mount Type Radial | ||
Maximum DC Resistance 5.9Ω | ||
Diameter 9mm | ||
Automotive Standard No | ||
Lead Diameter 0.65mm | ||
Height 12.2mm | ||
Core Material Ferrite DR | ||
Minimum Operating Temperature -55°C | ||
Inductance Tolerance ±10 % | ||
Maximum Self Resonant Frequency 0.8MHz | ||
Maximum Operating Temperature 125°C | ||
Length 12.2mm | ||
Depth 9mm | ||
Lead Pitch 5mm | ||
Termination Style Radial Lead | ||
Standards/Approvals RoHS | ||
Series RLB | ||
Minimum Quality Factor 15 | ||
Bourns RLB9012 Series Radial Inductor
Available in E12 series
Inductance range: 1.0μH to 47mH
RoHS compliant
Applications in Power Supplies, DC/DC Converters
Bourns Leaded Inductors (Chokes)
