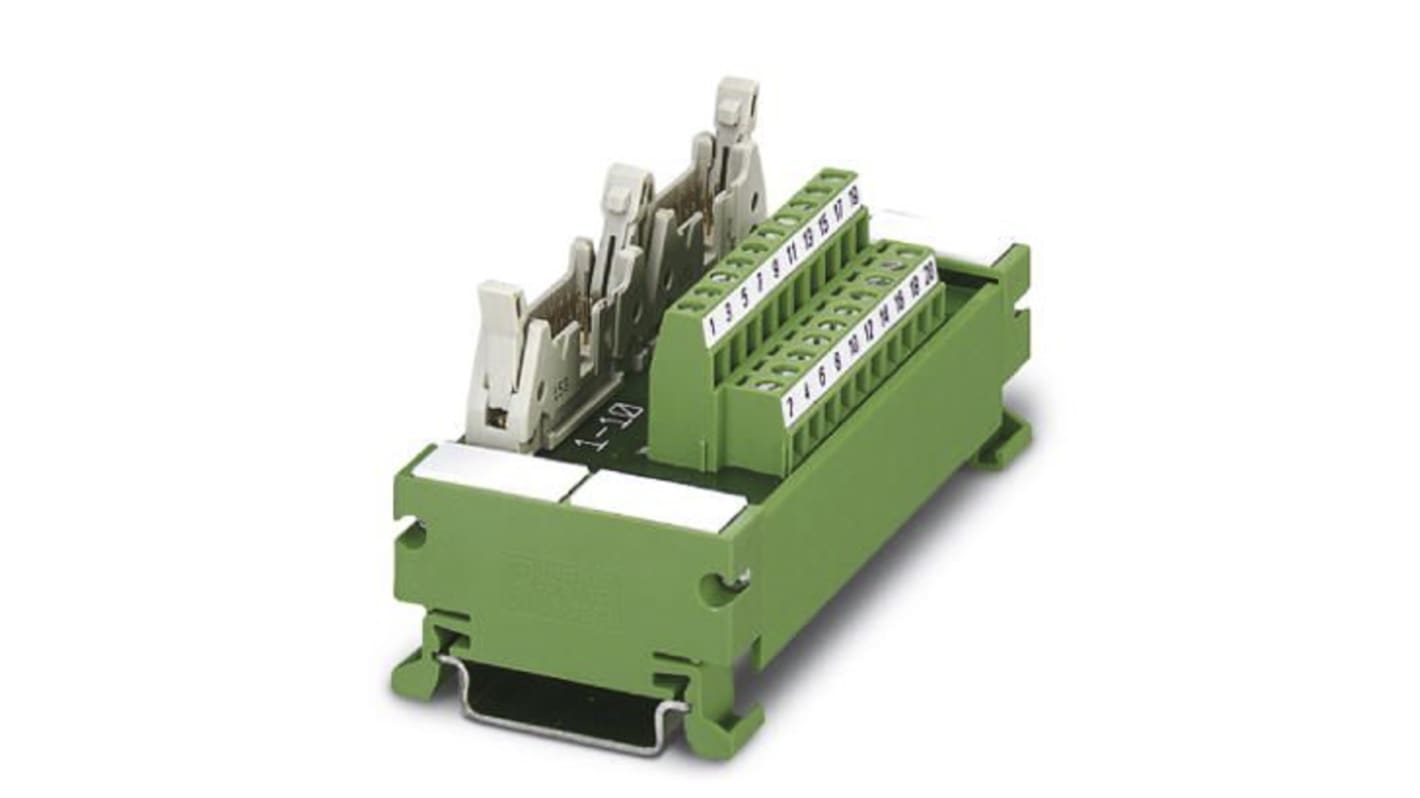

Phoenix Contact 28-Contact Male Interface Module, FLK Connector, DIN Rail Mount, 1A
- RS stock no.:
- 802-8078
- Mfr. Part No.:
- 2965143
- Manufacturer:
- Phoenix Contact
On back order for despatch 2024/06/04
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 1 548,91
(exc. VAT)
R 1 781,25
(inc. VAT)
| Units | Per unit |
| 1 + | R 1 548,91 |
- RS stock no.:
- 802-8078
- Mfr. Part No.:
- 2965143
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
Product Details
UM 45 Varioface Passive Interface Module
Phoenix Contact UM 45 passive interface modules for interlinking a selection of well known ranges including Siemens Simatic, Modicon TSX Quantum. This also includes series-specific labelling to uniform installation
Screw termination with M3 thread
Integration with applications made simple thanks to series-specific contact labelling
Integration with applications made simple thanks to series-specific contact labelling
Specification
Attribute | Value |
|---|---|
| Gender | Male |
| Wire Size | 26 → 14 AWG |
| Number of Contacts | 28 |
| Connector Type | FLK |
| Body Orientation | Straight |
| Mounting Type | DIN Rail Mount |
| Test Proof Voltage | 500V ac |
| Voltage Rating | 50 V ac, 60 V dc |
| Current Rating | 1A |
| Cable CSA | 0.14 → 1.5mm² |
| Dimensions | 45 x 98 x 50mm |
| Depth | 50mm |
| Length | 45mm |
| Width | 98mm |
| Maximum Operating Temperature | +50°C |
| Minimum Operating Temperature | -20°C |
