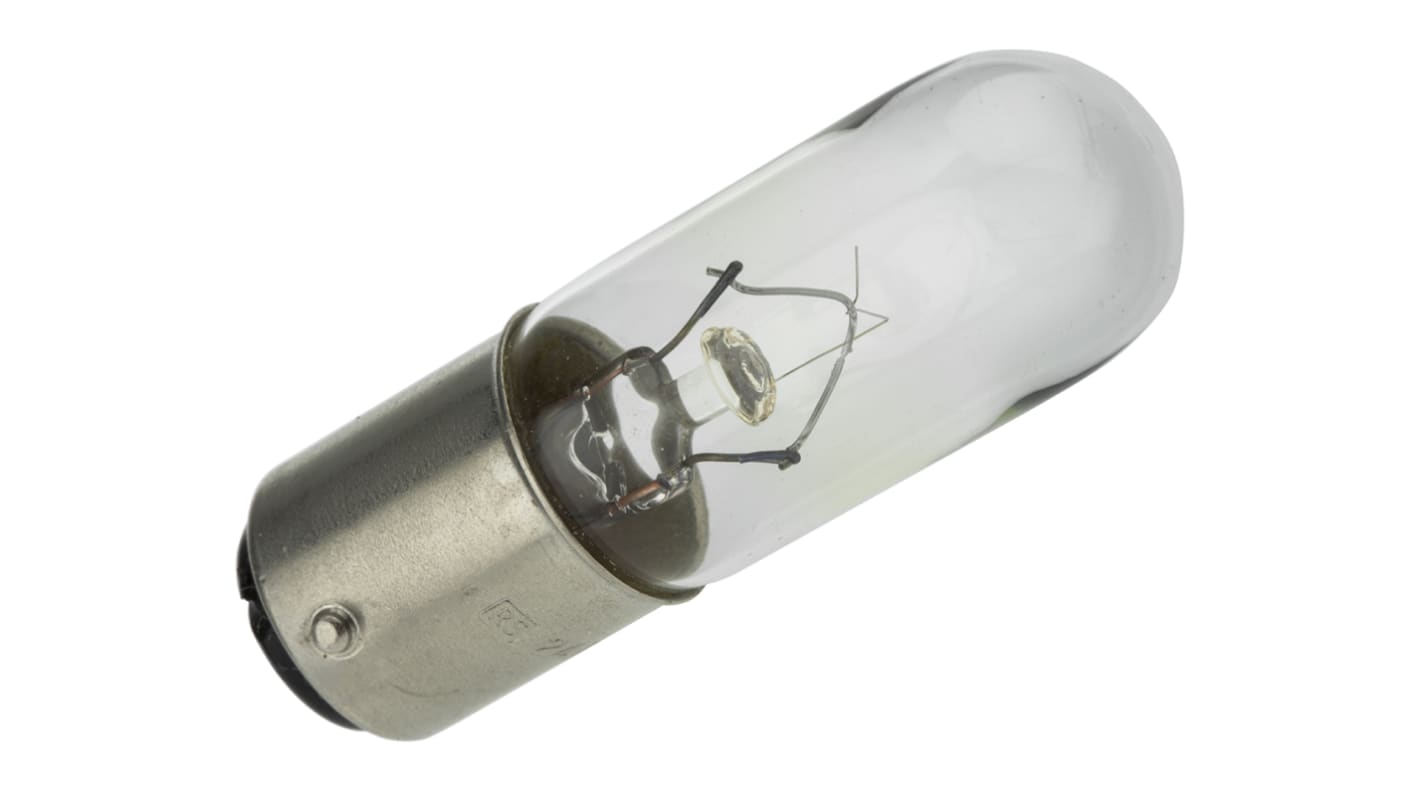

RS PRO BA15d Indicator Light, Clear, 24 → 30 V, 250 mA, 3000h
- RS stock no.:
- 360-7452
- Manufacturer:
- RS PRO
On back order for despatch 2024/06/26
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 5)
R 37,668
(exc. VAT)
R 43,318
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 70 | R 37,668 | R 188,34 |
| 75 - 245 | R 36,726 | R 183,63 |
| 250 - 495 | R 35,624 | R 178,12 |
| 500 - 1245 | R 34,20 | R 171,00 |
| 1250 + | R 32,832 | R 164,16 |
| *price indicative | ||
- RS stock no.:
- 360-7452
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
T16 BA15d Tubular SBC
Filament lamps will perform to specification and give optimum life when:
a) They are powered at the rated voltage from a stabilised 50 Hz AC supply.
b) Ambient temperature is in the range 20°C to 25°C.
c) No mechanical vibration is present.
Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments (<80mA).
Power from a DC supply at the rated voltage can reduce the listed life by up to 50%.
The effect of deviation from the rated operating voltage should be noted:
5% above will reduce lamp life by up to 50%.
5% below will significantly increase lamp life.
Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
a) They are powered at the rated voltage from a stabilised 50 Hz AC supply.
b) Ambient temperature is in the range 20°C to 25°C.
c) No mechanical vibration is present.
Deviations from these criteria have a significant effect on lamp life, particularly with low current filaments (<80mA).
Power from a DC supply at the rated voltage can reduce the listed life by up to 50%.
The effect of deviation from the rated operating voltage should be noted:
5% above will reduce lamp life by up to 50%.
5% below will significantly increase lamp life.
Power consumption may vary up to ±10% compared to the listed values at the rated supply voltage. Therefore particular care should be taken when a number of lamps are connected in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
Specification
Attribute | Value |
|---|---|
| Voltage Rating | 24 → 30 V |
| Wattage | 6 W |
| Lamp Base | BA15d |
| Current Rating | 250 mA |
| Diameter | 16мм |
| Lamp Size | T16 |
| Length | 54 mm |
| Lens Colour | Clear |
| Luminosity | 45 lm |
| Life Hours | 3000h |
