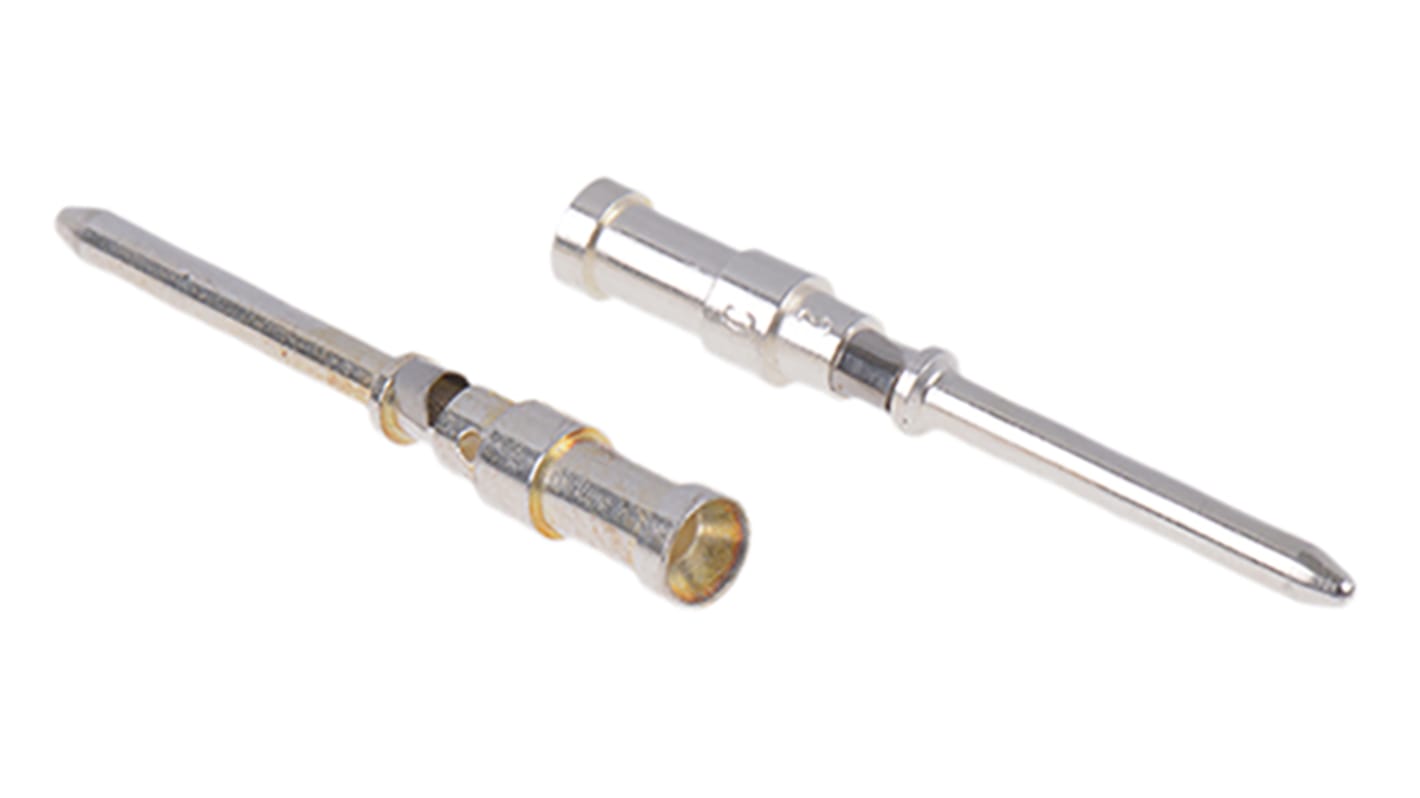

EPIC H-D Male 10A Contact for use with Heavy Duty Power Connectors

Machined precious-metal plated copper alloy crimp contacts snap into plug and socket inserts.Wire acceptance 0.5 to 2.5mm²

Alternative crimp tool see stock no. 266-6860. The posistioner used with this alternative crimp tool is listed in the table (stock no. 266-6882).

VDE 0110//72, 0110b, 79, VDE 0627//86

Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.

SEV, UL, CSA

This H-D 1.6 machined male contact features a conductor cross-section of 0.75 to 1mm² and includes silver plating for enhanced conductivity. It has a surface stripping length of 3mm for reliable connections in various modules.

• Silver plating improves conductivity
• Rated for 10A high-current applications
• Supports 0.75mm² to 1mm² wire sizes
• Male connector ensures secure connections
• Compatible with EPIC rectangular insert modules

• Heavy-duty power connectors in automation
• Industrial power connection systems
• Electronics requiring robust connectivity
• Electrical environments

Yes, it is designed for 250V AC applications.

H-D & H-DD

Assembled connectors are type tested to 10A 250V a.c. and include the following features:

High density contact loading gives more power and control connections in smaller shell sizes
Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately
HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool
Coupled connectors have protection rating of IP65
Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells
