Lovato 1 Phase LCD Energy Meter, Type Electronic
- RS stock no.:
- 905-3435
- Mfr. Part No.:
- DMED130
- Manufacturer:
- Lovato
On back order for despatch 2024/05/31
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 4 807,27
(exc. VAT)
R 5 528,36
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 4 807,27 |
| 5 - 9 | R 4 687,09 |
| 10 + | R 4 546,48 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS stock no.:
- 905-3435
- Mfr. Part No.:
- DMED130
- Manufacturer:
- Lovato
Legislation and Compliance
Exempt
- COO (Country of Origin):
- IT
Product Details

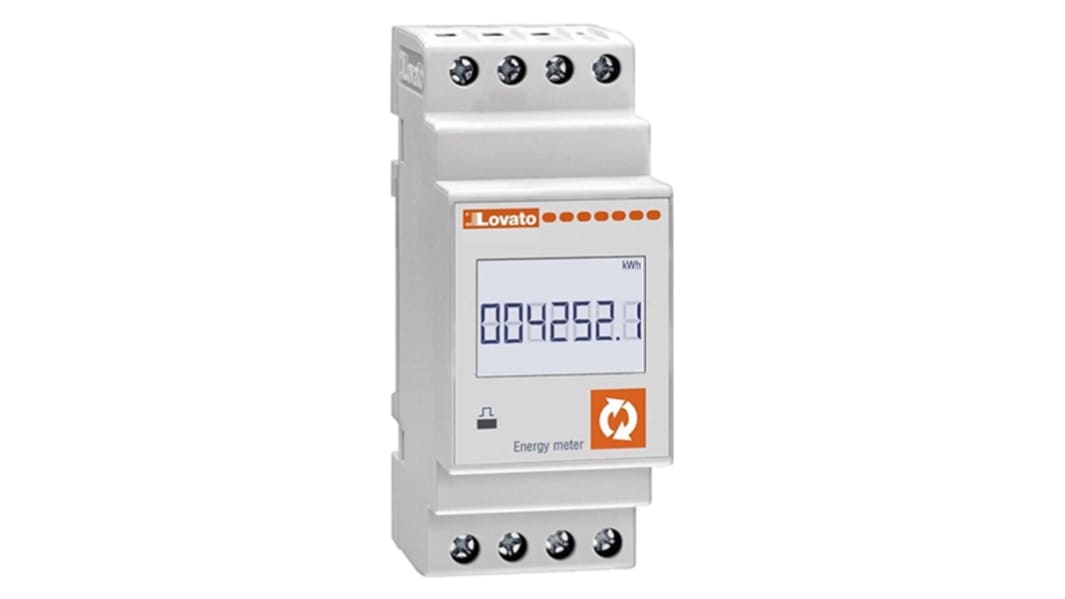

Lovato DME D130 Energy Meter
The DME D130 is a single-phase active and reactive energy meter for direct connection, for currents up to 63A. Apart from energy metering, it can measure additional indications for a total of 14 measurements that can be visualised on the back-lighted LCD display.
The DME D130 has a standard 2U (36mm wide) modular housing and it's supplied with sealable terminal blocks.
The DME D130 has a standard 2U (36mm wide) modular housing and it's supplied with sealable terminal blocks.
Counter with 6+1 digits
LCD display with backlight
Modular DIN Rail housing, 2U (36mm wide)
Button for measure selection and programming
Pulse LED for active energy consumption
Indication of instantaneous consumption (active power)
Support for one EXM1001 (905-3491) module
IP40 (front) protection
LCD display with backlight
Modular DIN Rail housing, 2U (36mm wide)
Button for measure selection and programming
Pulse LED for active energy consumption
Indication of instantaneous consumption (active power)
Support for one EXM1001 (905-3491) module
IP40 (front) protection
Approvals
EN50470-3 class B.
Specification
Attribute | Value |
|---|---|
| Display Type | LCD |
| Number of Digits | 7 |
| Number of Phases | 1 |
| Pulse Output | Yes |
| Depth | 63mm |
| Minimum Temperature | -25°C |
| Maximum Temperature | +55°C |
| Meter Type | Electronic |
| Series | DME |
| Measurement Range | 184 → 264V ac |
