RS PRO Panel Mount Multi Tone Alarm Sounder, 9 → 28 V dc, 92dB at 1 m, IP65, DC, 32-Tone

RS stock no.:: 264-9557
Manufacturer:: RS PRO

RS PRO Panel Mount Multi Tone Alarm Sounder, 9 → 28 V dc, 92dB at 1 m, IP65, DC, 32-Tone

Subtotal (1 unit)**

R 486 28

(exc. VAT)

R 559 22

(inc. VAT)

152 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Real time stock check

Not Available for premium delivery

Units	Per unit
1 +	R 486,28

**price indicative

RS stock no.:: 264-9557
Manufacturer:: RS PRO

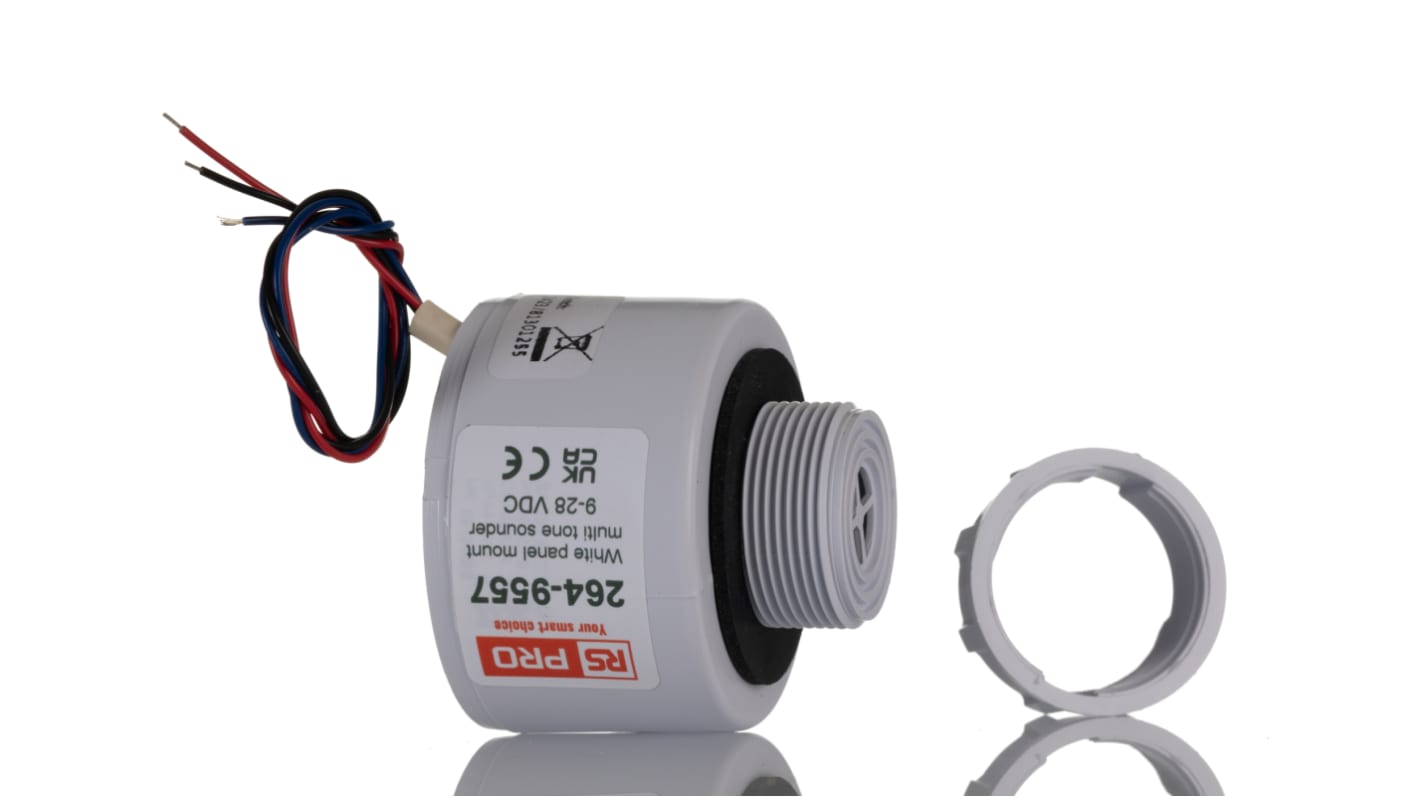

RS PRO Panel Mount Multi-Tone Alarm Sounder

Get peace of mind with the RS PRO Multi-Tone Alarm Sounder. Easy to install and with 32 selectable tones, you can customise your security system to fit your needs. Quickly switch between primary and secondary tones, keeping your property safe and secure. Choose the perfect audio signal for any application with the RS PRO Multi-Tone Alarm Sounder.

Why Would You Choose This Alarm Sounder?

Our alarm sounder is fitted with an adjustable volume control, adjusted from 67dB to 92 dB. The "9-28VDC" specification indicates the range of voltage that the sounder operates onin this case a direct current (DC) power source

Features and Benefits

White in colour, the sounder has an aesthetically pleasing finish

Tone selectable switch and volume control options

Easily to install into control enclosures

ABS construction, strong resistance to corrosive chemicals and physical impacts

Excepts most DC supplies

Option to use internally or externally

Dedicated panel fixing

32 tones, the tones are compatible with Roshni, Squashni and Flashni sounders

Offers a second tone for a two-stage alarm

ABS construction, strong resistance to corrosive chemicals and physical impacts

92dBA sound output at 24VDC

Automatic synchronisation

Current rating: 18mA

Voltage rating: 9VDC to 28VDC

IP65 rating

Specifications

Casing Material: ABS

Electrical connection: 3 Wire flying leads version

Housing Colour: White

Diameter: 50 mm

Weight: 0.09kg

Fully sealed IP65 protection

Variants – Available Separately

RS PRO Multi-Tone Alarm Sounder, 9-28VAC/DC - RS stock no: 264-9555

RS PRO Multi-Tone Alarm Sounder, 9-28VDC - RS stock no: 264-9557

Applications

Control Panels

Electrical Enclosures

FAQs

Can I use this sounder in harsh conditions?
Yes – this sounder operates in temperatures ranging from -25°C to +70°C so it's suitable for use in heavy-duty indoor and outdoor settings. The housing is made from rugged ABS (acrylonitrile butadiene styrene), which is resistant to corrosives and chemicals.

Can I change the volume on this electronic sounder?
Yes. This electronic sounder has both tone-select and volume-control options.

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Supply Voltage	9 → 28 V dc
	IP Rating	IP65
	Decibels at 1 Metre	92dB
	Current Type	DC
	Number Of Tones	32
	Housing Colour	White
	Mounting Style	Panel Mount
	Diameter	50 mm
	Application Type	Sounder
	Minimum Decibel	92dB
	Maximum Decibel	100dB
	Standards Met	CE Certified
	Special Features	EN54-3
	Housing Material	ABS
	Minimum Temperature	-25°C
	Maximum Temperature	+70°C
	Tone Type	Multi-tone

	Select all
	Brand RS PRO
	Supply Voltage 9 → 28 V dc
	IP Rating IP65
	Decibels at 1 Metre 92dB
	Current Type DC
	Number Of Tones 32
	Housing Colour White
	Mounting Style Panel Mount
	Diameter 50 mm
	Application Type Sounder
	Minimum Decibel 92dB
	Maximum Decibel 100dB
	Standards Met CE Certified
	Special Features EN54-3
	Housing Material ABS
	Minimum Temperature -25°C
	Maximum Temperature +70°C
	Tone Type Multi-tone
