Omron 10 Way Through Hole DIP Switch 10P, Piano Actuator
- RS stock no.:
- 686-7739
- Mfr. Part No.:
- A6ER0104
- Manufacturer:
- Omron

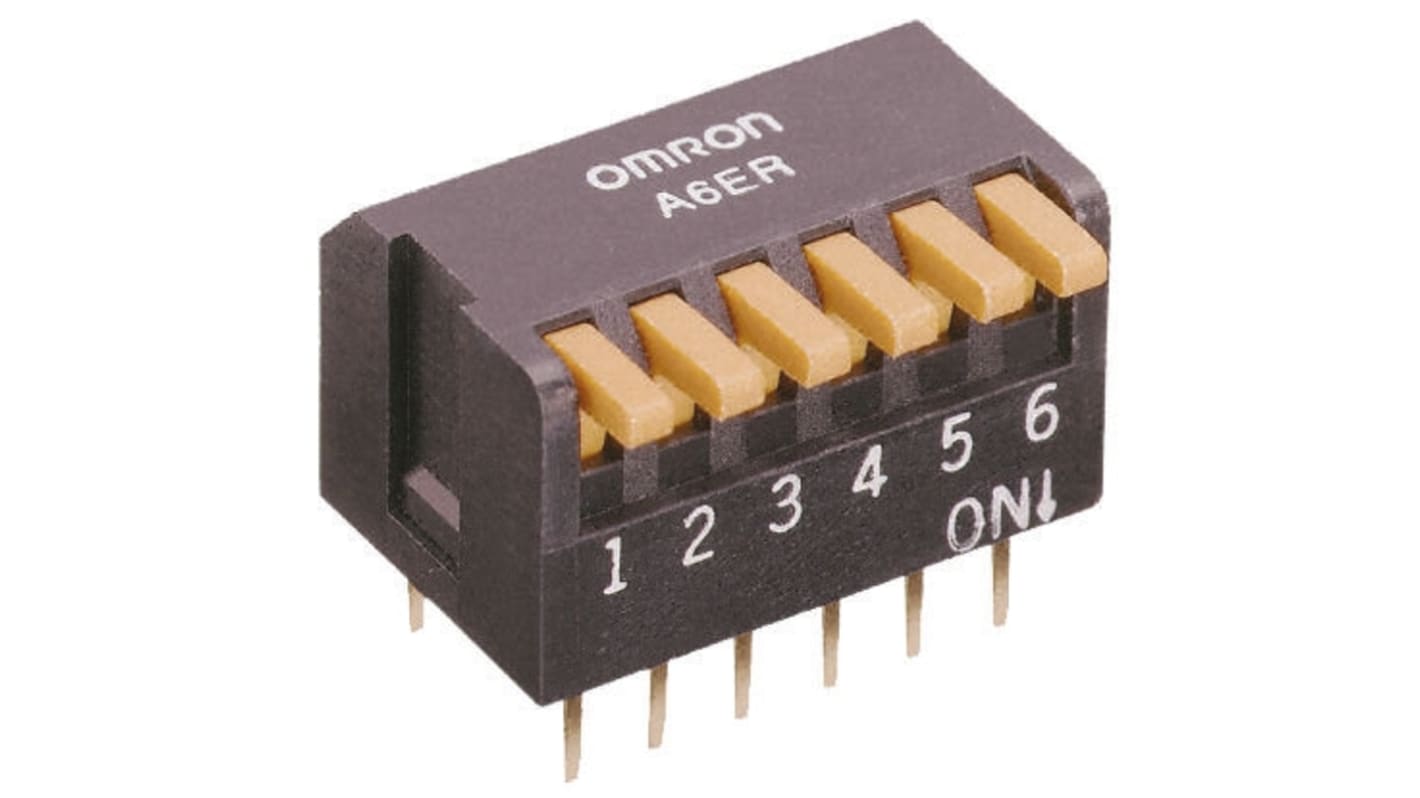

Image representative of range
View all DIP & SIP Switches
Not Available for premium delivery
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Price (Excl VAT) Each (In a Bag of 5)
R 117.324
(exc. VAT)
R 134.923
(inc. VAT)
| units | Per unit | Per Bag* |
| 5 - 120 | R 117.324 | R 586.62 |
| 125 - 495 | R 114.39 | R 571.95 |
| 500 - 1245 | R 110.958 | R 554.79 |
| 1250 - 2495 | R 106.52 | R 532.60 |
| 2500 + | R 102.26 | R 511.30 |
| *price indicative | ||
Packaging Options:
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS stock no.:
- 686-7739
- Mfr. Part No.:
- A6ER0104
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
DIP Switch, Slide Type
The sealed bottom prevents flux penetration
A variety of models with short or long actuators (levers) available
Switching capacity 25 mA @ 24 Vdc
A variety of models with short or long actuators (levers) available
Switching capacity 25 mA @ 24 Vdc
Specification
Attribute | Value |
|---|---|
| Number of Positions | 10 |
| Mounting Type | Through Hole |
| Contact Configuration | 10P |
| Package Style | DIP |
| Actuator Type | Piano |
| Contact Current Rating | 25 mA@ 24 V dc |
| Mechanical Life | 1000Operations |
| Maximum Operating Temperature | +70°C |
| Minimum Operating Temperature | -20°C |
| Operating Temperature Range | -20 → +70°C |
| Dielectric Strength | 500V ac |
