HARTING 09 06 48 Way 3.81 mm, 5.08 mm Pitch, Type F Class C1, 3 Row, Straight DIN 41612 Connector, Socket
- RS stock no.:
- 740-7041
- Mfr. Part No.:
- 09062482833
- Manufacturer:
- HARTING

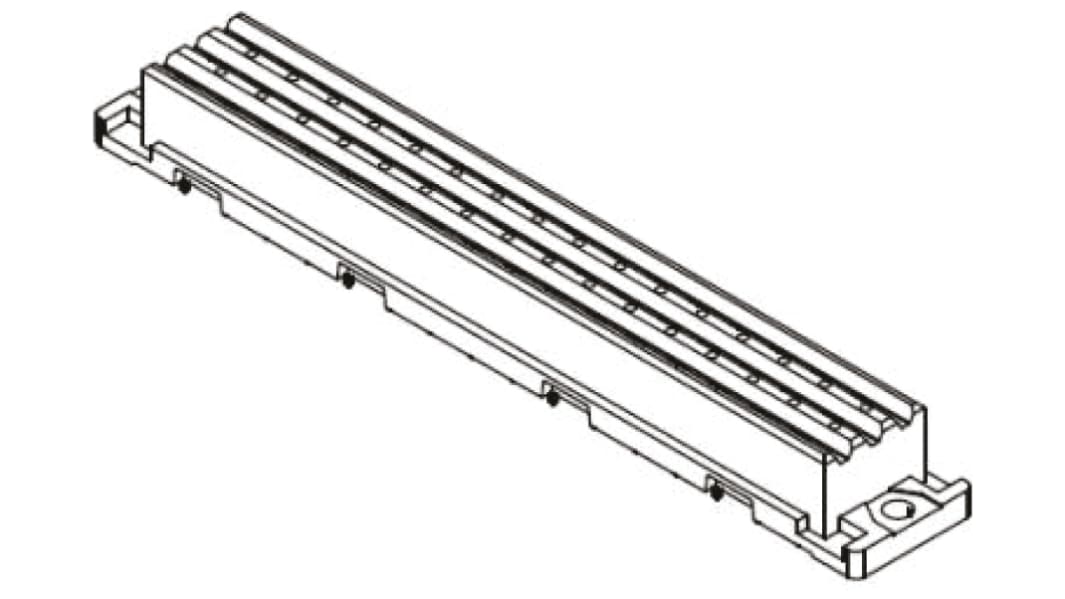

Image representative of range
1 / 2
Bulk discount available
Subtotal (1 unit)**
R 358 57
(exc. VAT)
R 412 36
(inc. VAT)
6 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over R 1500
Real time stock check
Not Available for premium delivery
Units | Per unit |
|---|---|
| 1 - 19 | R 358,57 |
| 20 - 74 | R 349,61 |
| 75 - 299 | R 339,12 |
| 300 - 599 | R 325,56 |
| 600 + | R 312,54 |
**price indicative
- RS stock no.:
- 740-7041
- Mfr. Part No.:
- 09062482833
- Manufacturer:
- HARTING
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HARTING | |
| Number of Contacts | 48 | |
| Gender | Female | |
| Number of Rows | 3 | |
| Body Orientation | Straight | |
| Termination Method | Solder | |
| Row Loading | z/b/d | |
| Type | F | |
| Pitch | 3.81 mm, 5.08 mm | |
| Contact Plating | Gold over Nickel | |
| Class Rating | C1 | |
| Current Rating | 6A | |
| Contact Material | Copper Alloy | |
| Maximum Contact Resistance | 15mΩ | |
| Series | 09 06 | |
| Housing Material | Thermoplastic | |
| Voltage Rating | 125 V ac | |
| Maximum Operating Temperature | +125°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand HARTING | ||
Number of Contacts 48 | ||
Gender Female | ||
Number of Rows 3 | ||
Body Orientation Straight | ||
Termination Method Solder | ||
Row Loading z/b/d | ||
Type F | ||
Pitch 3.81 mm, 5.08 mm | ||
Contact Plating Gold over Nickel | ||
Class Rating C1 | ||
Current Rating 6A | ||
Contact Material Copper Alloy | ||
Maximum Contact Resistance 15mΩ | ||
Series 09 06 | ||
Housing Material Thermoplastic | ||
Voltage Rating 125 V ac | ||
Maximum Operating Temperature +125°C | ||
Minimum Operating Temperature -55°C | ||
