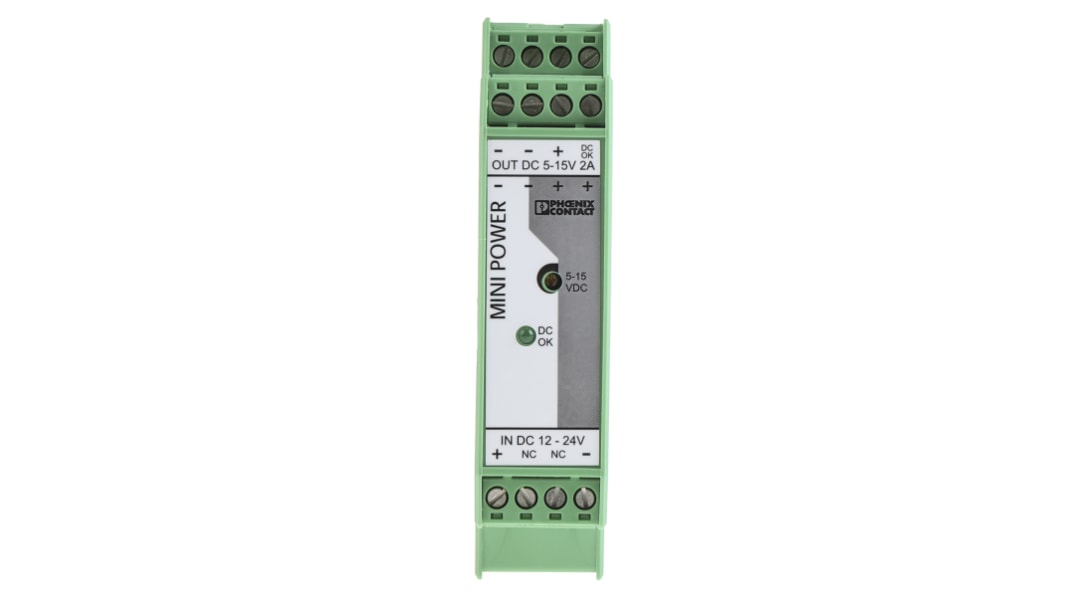

Phoenix Contact MINI-PS-12-24DC/5-15DC/2 DC-DC Converter, 12V dc/ 2A Output, 10 → 32 V dc Input, 24W, DIN Rail
- RS stock no.:
- 708-0432
- Mfr. Part No.:
- 2320018
- Manufacturer:
- Phoenix Contact
Temporarily out of stock - back order for despatch when stock is available
Added
Price (Excl VAT) Each
R 3 783,10
(exc. VAT)
R 4 350,56
(inc. VAT)
| Units | Per unit |
| 1 - 4 | R 3 783,10 |
| 5 - 9 | R 3 688,52 |
| 10 + | R 3 596,31 |
- RS stock no.:
- 708-0432
- Mfr. Part No.:
- 2320018
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Phoenix Contact (MINI-PSDC Series) DC transducer, 24V DC, DIN-rail assembly
The MINI power supply from Phoenix Contact is ideal for MCR (Measurement, Control and Regulating). DC-DC converters alter the voltage level, regenerate the voltage at the end of long cables or enable the creation of independent supply systems by electrical isolation.
Features and Benefits:
• Electrical isolation for setting up independent supply systems
• Constant voltage: output voltage regenerated even at the end of long cables
• Support conversion to various voltage levels
• Green LED voltage display
• Horizontal DIN Rail mounting
• Compact
• Constant voltage: output voltage regenerated even at the end of long cables
• Support conversion to various voltage levels
• Green LED voltage display
• Horizontal DIN Rail mounting
• Compact
Product Application Information
Can be used for networking, industrial equipment and other applications due to their space saving size.
Approvals
CE, UL
Standards
EN 60950 / VDE 0805 (SELV), EN 61558-2-17, EN 50178 / VDE 0160 (PELV), DIN VDE 0100-410 / DIN VDE 0106-1010
Phoenix Contact DC-DC Converter, 2A Output Current, 24W Power Rating - MINI-PS-12-24DC/5-15DC/2 - 2320018
Use this Phoenix Contact DC to DC (direct current) converter to step 12 to 24V DC down to between 5 and 15V DC. The converter can also be used to enable the creation of independent supply systems through electrical isolation, as well as to regenerate voltage at the end of long cables.
The device's polyamide (PA) housing material is durable and provides effective impact resistance, so it can withstand daily wear and tear in busy industrial settings. Thanks to dimensions of 99 (L) x 22.5 (W) x 107mm (D), this is a compact choice that won't add strain to your setup. There's a green LED (light-emitting diode) display, which makes it quick and easy to verify whether the unit is functioning properly. For increased electrical safety and to prevent damage, the converter has an integrated slow-blow 6.3A fuse that cuts the power supply when a short circuit occurs. Use a device like this in everything from solar grids to vehicle instrumentation panels.
The device's polyamide (PA) housing material is durable and provides effective impact resistance, so it can withstand daily wear and tear in busy industrial settings. Thanks to dimensions of 99 (L) x 22.5 (W) x 107mm (D), this is a compact choice that won't add strain to your setup. There's a green LED (light-emitting diode) display, which makes it quick and easy to verify whether the unit is functioning properly. For increased electrical safety and to prevent damage, the converter has an integrated slow-blow 6.3A fuse that cuts the power supply when a short circuit occurs. Use a device like this in everything from solar grids to vehicle instrumentation panels.
• Operating temperature range of -25°C to +70°C for safe industrial use
• Horizontal DIN rail mounting ensures fast and easy installation
• Versatile power rating of 24W
• Horizontal DIN rail mounting ensures fast and easy installation
• Versatile power rating of 24W
Specification
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 10 → 32 V dc |
| Power Rating | 24W |
| Input Voltage Nominal | 12 → 24 V dc |
| Output Current | 2A |
| Mounting Type | DIN Rail Mount |
| Isolated | Yes |
| Number of Outputs | 1 |
| Output Voltage Adjustment Range | 5 → 15V |
| Isolation Voltage | 1.5kV dc |
| Length | 99mm |
| Depth | 107mm |
| Width | 22.5mm |
| Series | MINI-PS-12-24DC/5-15DC/2 |
| Maximum Temperature | +70°C |
| Efficiency | >88% |
| Minimum Temperature | -25°C |
