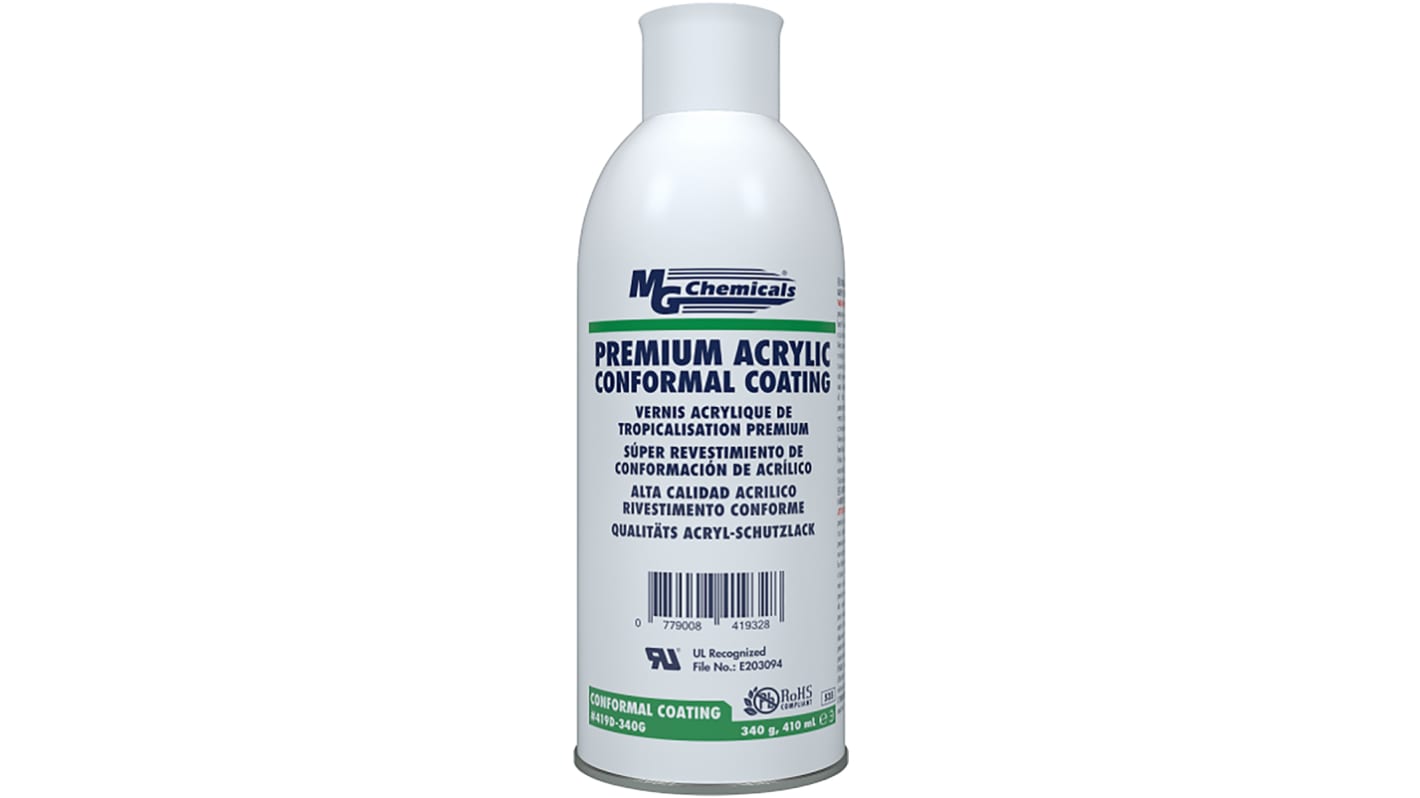

MG Chemicals Clear Acrylic Conformal Coating, 410 ml Aerosol, -65 °C min, 125 °C max
- RS stock no.:
- 146-2871
- Mfr. Part No.:
- 419D-340G
- Manufacturer:
- MG Chemicals
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 735,60
(exc. VAT)
R 845,94
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 18 unit(s) shipping from 10 August 2026
- Plus 96 unit(s) shipping from 13 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 5 | R 735.60 |
| 6 - 14 | R 717.21 |
| 15 + | R 695.69 |
*price indicative
- RS stock no.:
- 146-2871
- Mfr. Part No.:
- 419D-340G
- Manufacturer:
- MG Chemicals
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MG Chemicals | |
| Product Type | Conformal Coating | |
| Package Size | 410 ml | |
| Package Type | Aerosol | |
| Application | PCB, Relay, Motor, Computer Tablet Component, Electric Generators, LED Board, Transformer, Automobile, Aviation, Cell Phone | |
| Product Form | Liquid | |
| Base Material | Acrylic | |
| Colour | Clear | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -65°C | |
| Standards/Approvals | No | |
| Trade Name | 419D | |
| Select all | ||
|---|---|---|
Brand MG Chemicals | ||
Product Type Conformal Coating | ||
Package Size 410 ml | ||
Package Type Aerosol | ||
Application PCB, Relay, Motor, Computer Tablet Component, Electric Generators, LED Board, Transformer, Automobile, Aviation, Cell Phone | ||
Product Form Liquid | ||
Base Material Acrylic | ||
Colour Clear | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -65°C | ||
Standards/Approvals No | ||
Trade Name 419D | ||
- COO (Country of Origin):
- CA
MG Chemicals Premium Acrylic Conformal Coating is an IPC-CC-830B and UL 94-V0 certified, xylene and toluene free coating with an excellent high-gloss finish. It is ideal for professional coating operations and robotic spray equipment. This coating protects electric circuits against moisture, dirt, dust, and thermal shocks that could corrode, short circuit, or otherwise damage the electric components. It insulates against high-voltage arcing, shorts, static discharges, and allows traces to be put closer together helping with miniaturization.
Certified UL 94V-0 (File # E203094)
Externally Qualified to IPC-CC-830B by Pacific Testing Laboratories
Tack free in about 15 min, full cure in < 60 min at 65 °C [149 °F]
High gloss finish
Suitable for robotic spray equipment, custom formulations available for specific machines
No Hazardous Air Pollutants—free of toluene and xylene
Easy to inspect—fluoresces under UV light
Service temperature range -40°C to +125°C
Easy rework and repairs—can solder through
Removable with Cat. No. 8312 (liquid) Conformal Coating Stripper
Printed Circuit boards
LED Boards
Electric generators, motors and transformers
Relays
Automotive air bag controllers
Cell phones and Computer tablets components
Avionics
