Bulk discount available
Subtotal (1 unit)*
R 1 046,12
(exc. VAT)
R 1 203,04
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 25 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,046.12 |
| 5 - 9 | R 1,019.97 |
| 10 - 24 | R 989.37 |
| 25 + | R 949.80 |
*price indicative
- RS stock no.:
- 194-6877
- Mfr. Part No.:
- GLCTE25-XL
- Manufacturer:
- INA
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | INA | |
| Product Type | Bearing Unit | |
| Inside Diameter | 25 mm | |
| Number of Mount Holes | 2 | |
| Material | Cast Iron | |
| Length | 71mm | |
| Width | 33.4 mm | |
| Depth | 97mm | |
| Mount Hole Size | 9 mm | |
| Mount Hole Centre-to-Centre | 76.2mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand INA | ||
Product Type Bearing Unit | ||
Inside Diameter 25 mm | ||
Number of Mount Holes 2 | ||
Material Cast Iron | ||
Length 71mm | ||
Width 33.4 mm | ||
Depth 97mm | ||
Mount Hole Size 9 mm | ||
Mount Hole Centre-to-Centre 76.2mm | ||
Standards/Approvals No | ||

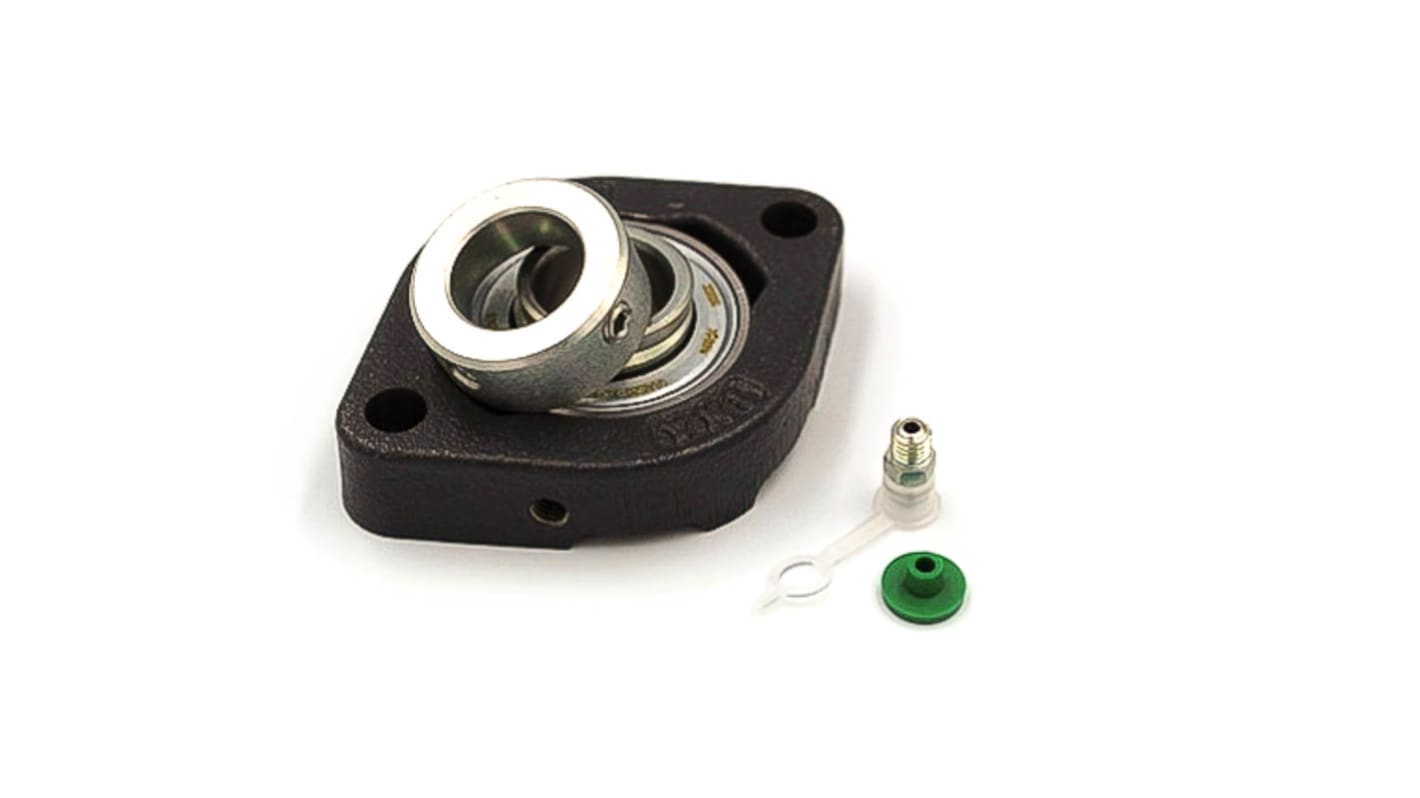

Schaeffler Bearing Unit, 25mm Inside Diameter, Flange Bearing Unit Type - GLCTE25-XL
This bearing unit is a high-performance flange bearing unit made from cast iron, specifically designed to offer reliability in various industrial applications. With an inside diameter of 25mm, the unit's dimensions include a width of 33.4mm, a length of 71mm, and a depth of 97mm, making it suitable for compact installation in critical systems.
Features & Benefits
• Eccentric locking collar ensures secure fixation
• P seals provide protection against contamination
• High basic dynamic load rating of 14,000 N for durability
• Effective fatigue load limit of 370 N enhances longevity
• Two-bolt design simplifies mounting and installation
• Lightweight at approximately 0.47 kg for easier handling
Applications
• Used for mounting in mechanical assemblies
• Ideal for requiring precise alignment
• Suitable for automation and robotics systems
• Employed in electrical and electronic components
• Utilised in heavy machinery for stability
What are the load ratings for this unit?
The basic dynamic load rating is 14,000 N, while the basic static load rating is 7,800 N, ensuring robust performance in various applications.
What type of material is used for this unit?
This bearing unit is constructed from GG grey cast iron, which provides durability and wear resistance under demanding conditions.
How does the eccentric locking collar function?
The eccentric locking collar allows for simple and reliable axial fixation while ensuring easy adjustments during installation.
What is the temperature range for operating this unit?
The operating temperature range is from -20°C to 100°C, making it versatile for diverse environments.
