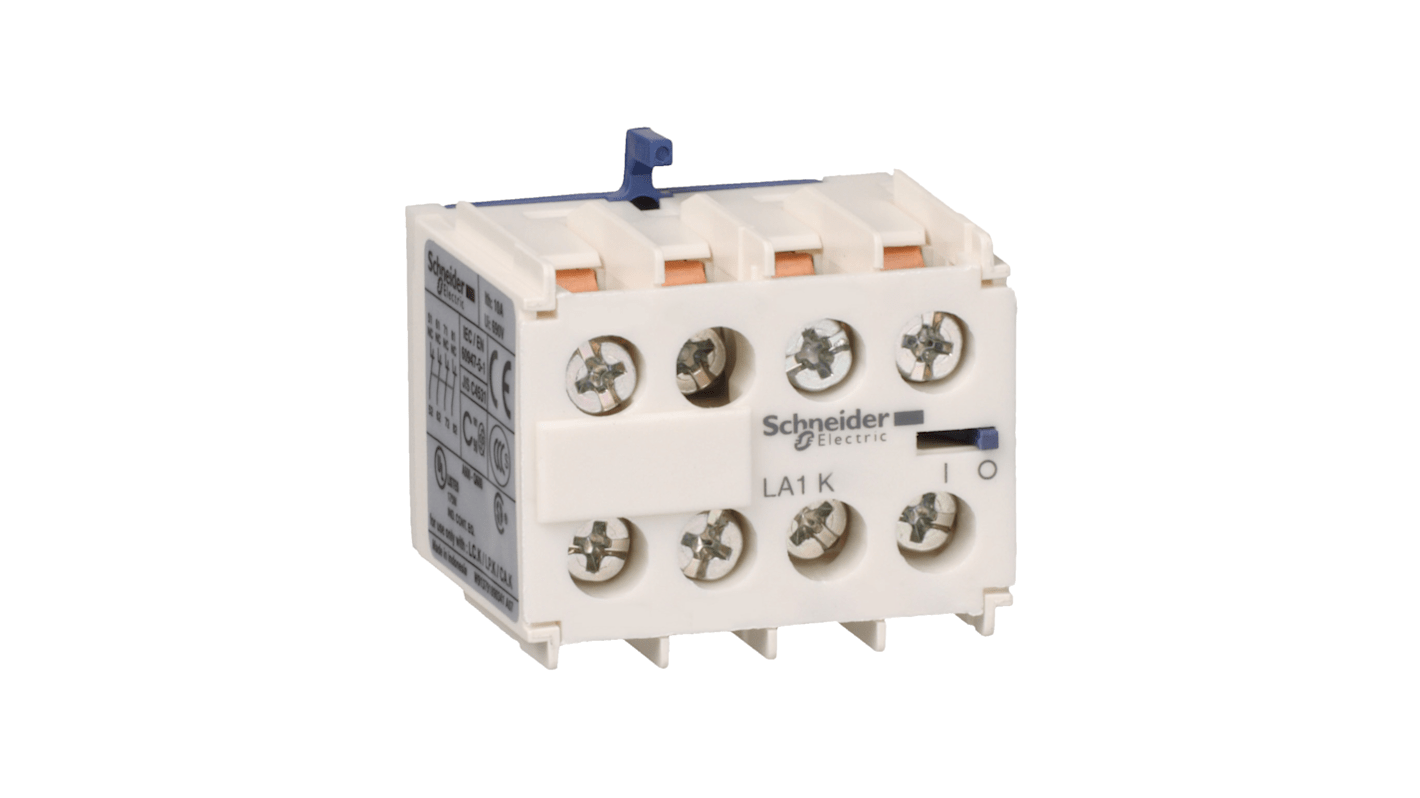

Schneider Electric Auxiliary Contact, 4 Contact, 4NC, Front Mount LA1K

RS stock no.:: 279-6315
Mfr. Part No.:: LA1KN04
Manufacturer:: Schneider Electric

Schneider Electric Auxiliary Contact, 4 Contact, 4NC, Front Mount LA1K

Bulk discount available

Subtotal (1 unit)**

R 456 86

(exc. VAT)

R 525 39

(inc. VAT)

5 In stock in South Africa for delivery next working day in national main centres. (Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Real time stock check

Units	Per unit
1 - 9	R 456,86
10 - 24	R 445,44
25 +	R 432,08

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS stock no.:: 279-6315
Mfr. Part No.:: LA1KN04
Manufacturer:: Schneider Electric

Schneider Electric uxiliary Contacts - TeSys LA1K Series

Are you looking to provide an additional auxiliary contact to your control circuit, to provide further safety? Schneider Electric offers the latest in Auxiliary Contact components and technology.

Specifically, the LA1K series of Auxiliary Contactor brings reliability to your circuit by acting as a secondary switching device working in conjunction with other primary devices such as contactors, relays or circuit breakers.

Features and Benefits

TeSys K range of Auxiliary Contacts is one of the smallest of the contactors in the market place making it suitable for use in tight spaces. The size, however, does not compromise on performance, with the range delivering peak efficiency and seamless integration with other applications.

Available in applications ranging from 2.2 up to 5.5 kW.

Terminal connection types included screw-clamp, fasten connectors, spring terminal, pins for printed and circuit boards

NO contact & NC contact, varying from model to model.

Motor protection through the use of additional thermal relays such as the LR2K series.

Standards - IEC 60947 - protect electrical power distribution up to 1000 volts a.c. and 1500 volts d.c, VDE 0660 - rated for switchgear for use in circuits up to 1000 volts a.c. and 1500 volts d.c, NF C 63, 110, BS 5424, UL, CSA, CE and CCC certificates

How do Auxiliary Contacts work?

An Auxiliary Contact is an electromechanical device that is mounted typically to contactors. They are physically connected to the contactor, with simultaneous activation and deactivation applying to both of the devices at the same time.

Aux Contacts can be installed onto contactors either by front mounting, or side mounting. This is usually clear in the shape and size of the product, but please check the compatibility of your devices. Aux Contacts are really useful devices to aid in keeping an eye on the contactor.

You can, for example, hook up a low voltage LED directly to the Aux Contactor without having to worry about the overall voltage of the contactor it is linked to (as long the Aux Contactor is electrically isolated from the contactor) you could use the LED to monitor the device i.e. indicate if the motor is off/on.

Common Applications

Noise sensitive areas

Programmable controller outputs

Other simple control systems

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Number of Contacts	4
	Normal State Configuration	4NC
	Mounting Style	Front Mount
	Series	LA1K
	Contact Current Rating	10 A
	Terminal Type	Screw
	Pole and Throw Configuration	4P
	Contact Voltage Rating	600 V ac
	Better World Product	Yes
	Better World Verification	Green Premium

	Select all
	Brand Schneider Electric
	Number of Contacts 4
	Normal State Configuration 4NC
	Mounting Style Front Mount
	Series LA1K
	Contact Current Rating 10 A
	Terminal Type Screw
	Pole and Throw Configuration 4P
	Contact Voltage Rating 600 V ac
	Better World Product Yes
	Better World Verification Green Premium
