EPCOS 1 mF Capacitor 35 V dc, Through Hole Radial Lead
- RS stock no.:
- 261-0658
- Mfr. Part No.:
- B41858C7108M000
- Manufacturer:
- EPCOS

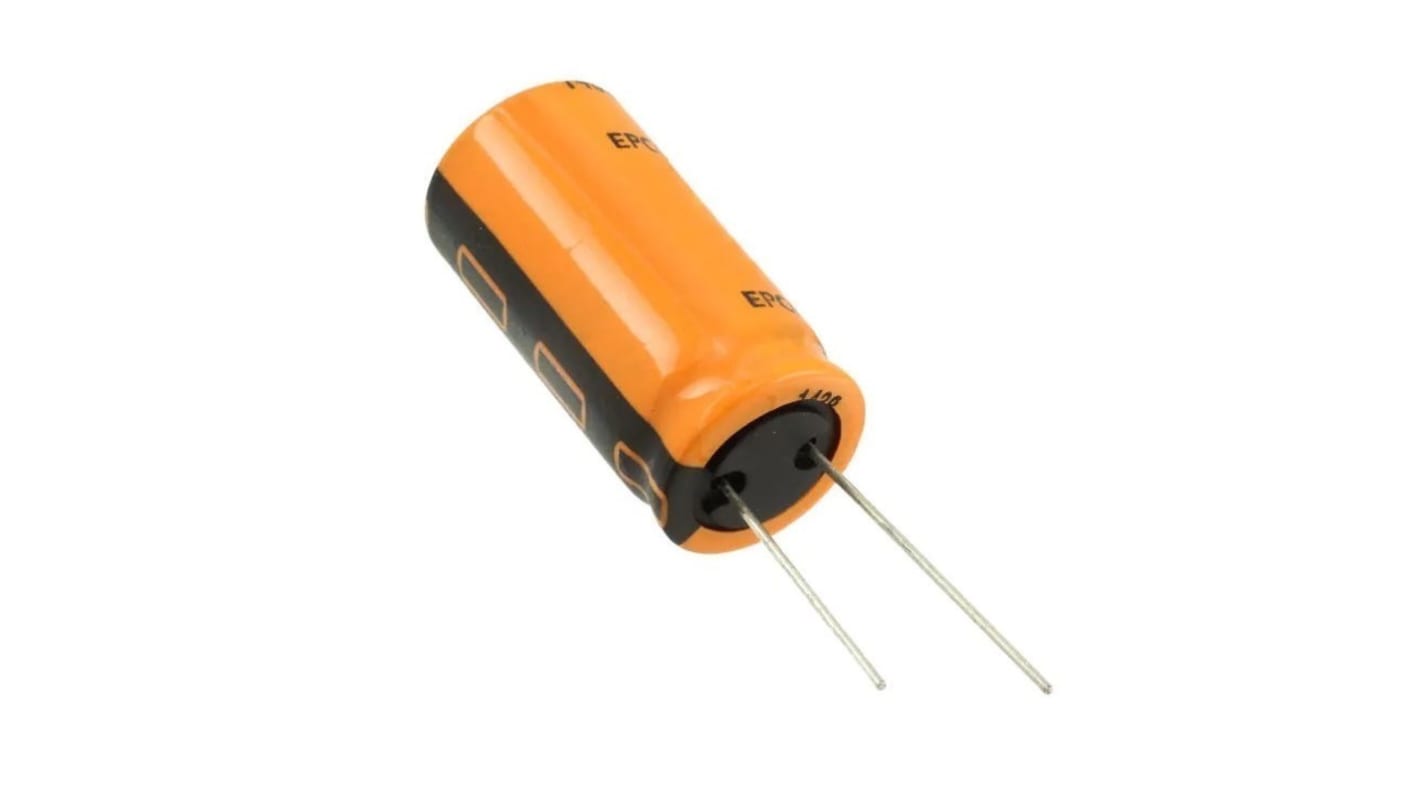

Image representative of range
Bulk discount available
Subtotal (1 bag of 10 units)*
R 285,84
(exc. VAT)
R 328,72
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 2,230 unit(s) shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 40 | R 28.584 | R 285.84 |
| 50 - 90 | R 27.869 | R 278.69 |
| 100 + | R 27.033 | R 270.33 |
*price indicative
- RS stock no.:
- 261-0658
- Mfr. Part No.:
- B41858C7108M000
- Manufacturer:
- EPCOS
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 1mF | |
| Product Type | Capacitor | |
| Voltage | 35 V dc | |
| Mount Type | Through Hole | |
| Polarity | Polar | |
| Length | 25.2mm | |
| Minimum Operating Temperature | -55°C | |
| Diameter | 12.5 mm | |
| Termination Type | Radial Lead | |
| Capacitor Ripple Current | 2 A | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 105°C | |
| Lead Pitch | 5mm | |
| Standards/Approvals | RoHS | |
| Lifetime | 5000 h | |
| Leakage Current | 350μA | |
| Series | B41858 | |
| Automotive Standard | AEC-Q200 | |
| Tolerance | ±20 % | |
| Dissipation Factor | 0.19% | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 1mF | ||
Product Type Capacitor | ||
Voltage 35 V dc | ||
Mount Type Through Hole | ||
Polarity Polar | ||
Length 25.2mm | ||
Minimum Operating Temperature -55°C | ||
Diameter 12.5 mm | ||
Termination Type Radial Lead | ||
Capacitor Ripple Current 2 A | ||
Pin Count 2 | ||
Maximum Operating Temperature 105°C | ||
Lead Pitch 5mm | ||
Standards/Approvals RoHS | ||
Lifetime 5000 h | ||
Leakage Current 350μA | ||
Series B41858 | ||
Automotive Standard AEC-Q200 | ||
Tolerance ±20 % | ||
Dissipation Factor 0.19% | ||
The EPCOS aluminium electrolytic capacitor is a long life grade capacitor. This capacitor has low impedance at high frequency and high ripple current capability.
High reliability
Low ESR
RoHS compatible
Applicable in automotive electronics
