EPCOS 4700μF Aluminium Electrolytic Capacitor 35V dc, Snap-In - B41231B7478M060
- RS stock no.:
- 171-3198
- Mfr. Part No.:
- B41231B7478M060
- Manufacturer:
- EPCOS

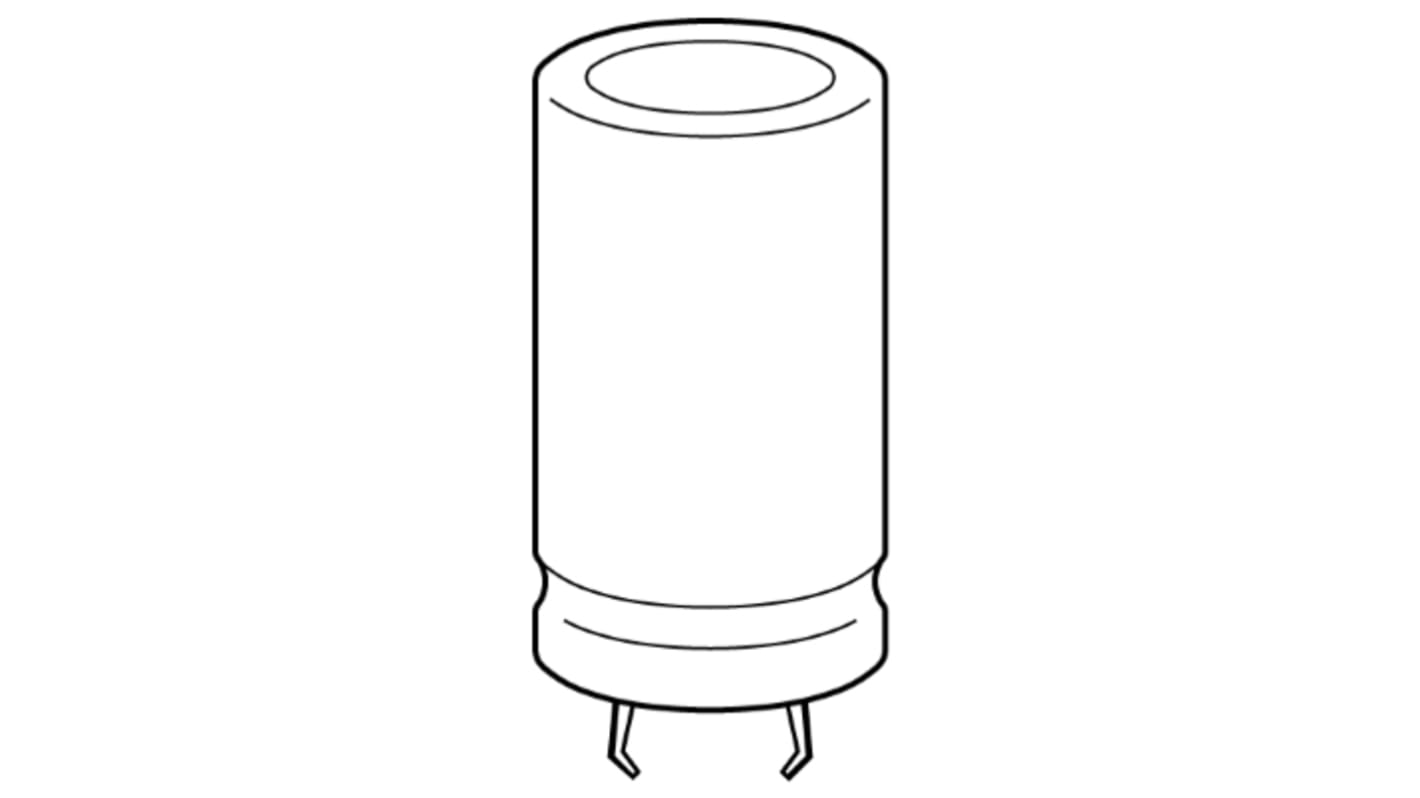

Image representative of range
Bulk discount available
Subtotal (1 box of 130 units)*
R 3 261,96
(exc. VAT)
R 3 751,28
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 29 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 130 - 260 | R 25.092 | R 3,261.96 |
| 390 + | R 24.465 | R 3,180.45 |
*price indicative
- RS stock no.:
- 171-3198
- Mfr. Part No.:
- B41231B7478M060
- Manufacturer:
- EPCOS
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | EPCOS | |
| Capacitance | 4700µF | |
| Voltage | 35V dc | |
| Mounting Type | Snap-In | |
| Technology | Aluminium Electrolytic | |
| Dimensions | 25.4 (Dia.) x 25mm | |
| Height | 25mm | |
| Minimum Operating Temperature | -40°C | |
| Diameter | 25.4mm | |
| Maximum Operating Temperature | +85°C | |
| Lead Pitch | 10mm | |
| Lifetime | 2000h | |
| Polarised | Polar | |
| Tolerance | ±20% | |
| Ripple Current | 2.98A | |
| Series | B41231 | |
| Dissipation Factor | 0.4% | |
| Select all | ||
|---|---|---|
Brand EPCOS | ||
Capacitance 4700µF | ||
Voltage 35V dc | ||
Mounting Type Snap-In | ||
Technology Aluminium Electrolytic | ||
Dimensions 25.4 (Dia.) x 25mm | ||
Height 25mm | ||
Minimum Operating Temperature -40°C | ||
Diameter 25.4mm | ||
Maximum Operating Temperature +85°C | ||
Lead Pitch 10mm | ||
Lifetime 2000h | ||
Polarised Polar | ||
Tolerance ±20% | ||
Ripple Current 2.98A | ||
Series B41231 | ||
Dissipation Factor 0.4% | ||
Applications:
Professional power supplies
Features:
High ripple current capability
Useful life of 2000 h at 85 °C
Construction:
Aluminium case, fully insulated with PET or PVC
Snap-in solder pins to hold component in place on PC-board
Minus pole marking on the insulating sleeve
Case with safety vent on the base
Professional power supplies
Features:
High ripple current capability
Useful life of 2000 h at 85 °C
Construction:
Aluminium case, fully insulated with PET or PVC
Snap-in solder pins to hold component in place on PC-board
Minus pole marking on the insulating sleeve
Case with safety vent on the base
