RS PRO 1000μF Aluminium Electrolytic Capacitor 100V dc, Radial, Through Hole

RS stock no.:: 170-1291
Manufacturer:: RS PRO

RS PRO 1000μF Aluminium Electrolytic Capacitor 100V dc, Radial, Through Hole

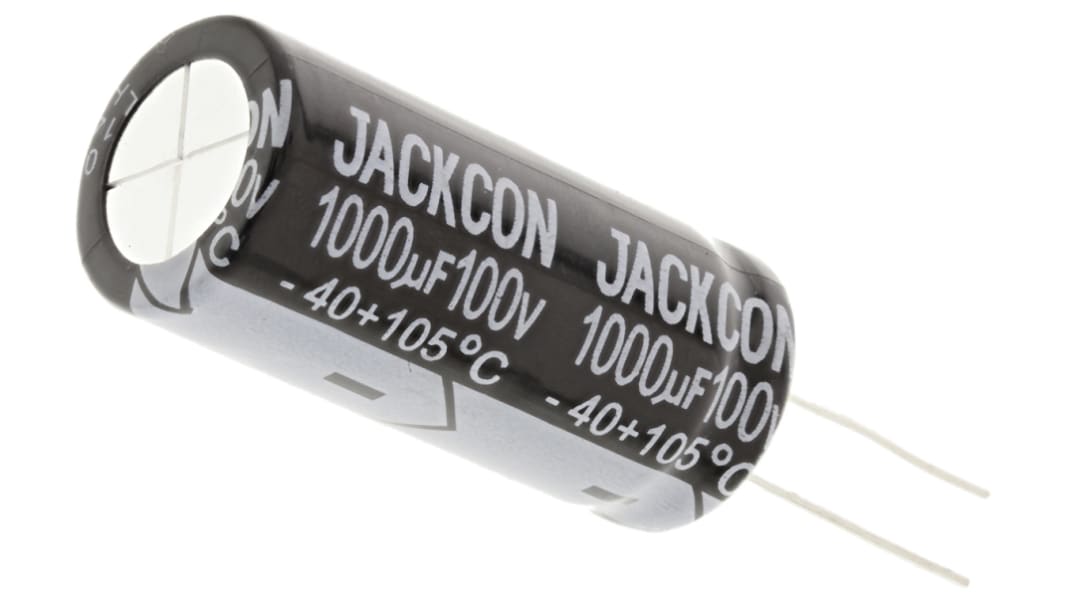

Image representative of range

Subtotal (1 bag of 50 units)*

R 2 206,75

(exc. VAT)

R 2 537,75

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

550 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Bag*
50 +	R 44.135	R 2,206.75

*price indicative

RS stock no.:: 170-1291
Manufacturer:: RS PRO

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Capacitance	1000µF
	Voltage	100V dc
	Mounting Type	Radial, Through Hole
	Technology	Aluminium Electrolytic
	Dimensions	18 (Dia.) x 41mm
	Height	41mm
	Length	41mm
	Minimum Operating Temperature	-40°C
	Diameter	18mm
	Maximum Operating Temperature	105°C
	Lifetime	2000h
	Lead Pitch	7.5mm
	Ripple Current	1.25A
	Series	RS
	Polarised	Polar
	Leakage Current	<=0.01 CV or 3 μA @ 1 min
	Tolerance	±20%
	Dissipation Factor	10%

	Select all
	Brand RS PRO
	Capacitance 1000µF
	Voltage 100V dc
	Mounting Type Radial, Through Hole
	Technology Aluminium Electrolytic
	Dimensions 18 (Dia.) x 41mm
	Height 41mm
	Length 41mm
	Minimum Operating Temperature -40°C
	Diameter 18mm
	Maximum Operating Temperature 105°C
	Lifetime 2000h
	Lead Pitch 7.5mm
	Ripple Current 1.25A
	Series RS
	Polarised Polar
	Leakage Current <=0.01 CV or 3 μA @ 1 min
	Tolerance ±20%
	Dissipation Factor 10%

COO (Country of Origin):: TW
