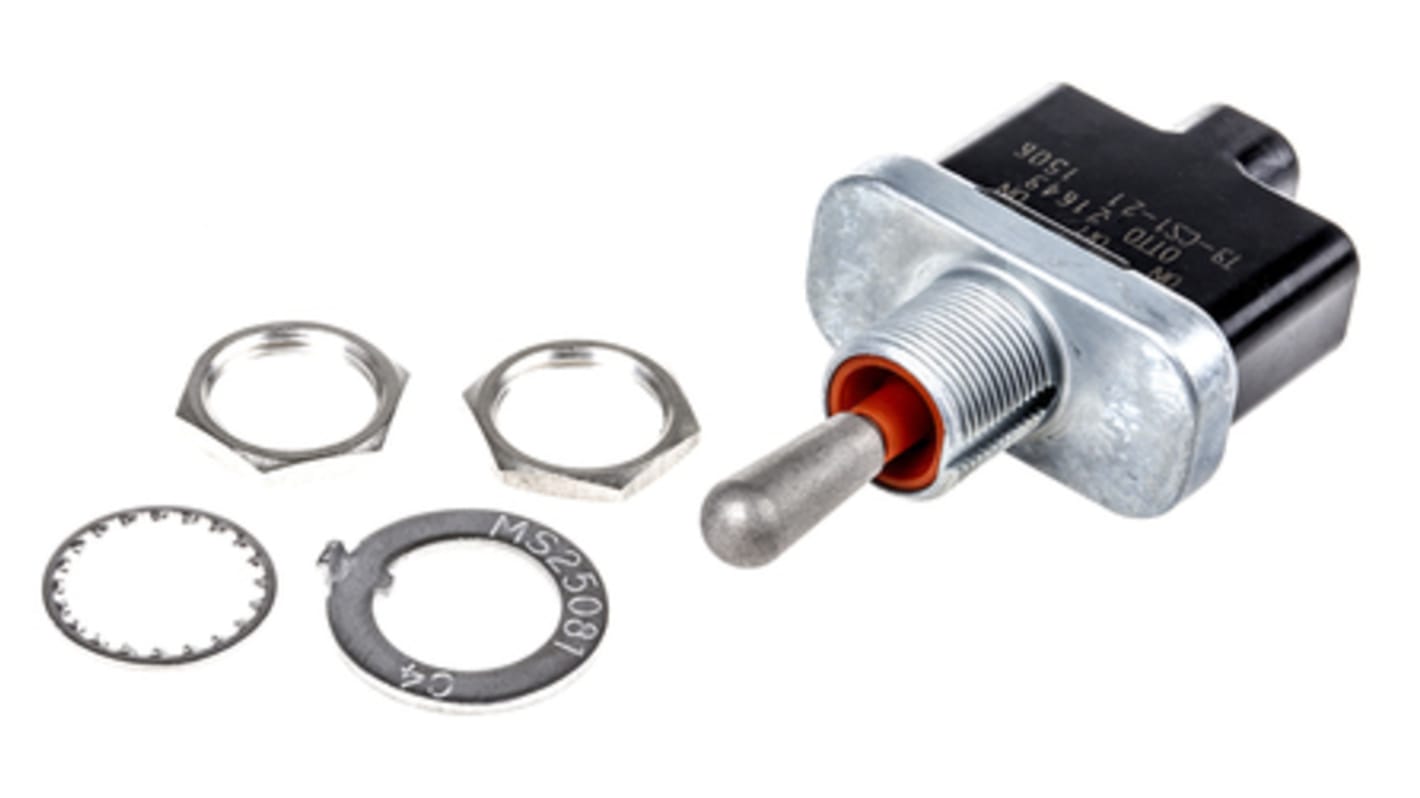

Otto Toggle Switch, Panel Mount, On-Off, SPST, Screw Terminal, 28 V dc, 115V ac
- RS stock no.:
- 883-7611
- Mfr. Part No.:
- T9-CS1-24
- Manufacturer:
- Otto
Not Available for premium delivery
This product is currently unavailable to backorder.
Unfortunately, we don’t have this product in stock and it’s not available to backorder at this time.
Added
Price (Excl VAT) Each
R 713,36
(exc. VAT)
R 820,36
(inc. VAT)
| Units | Per unit |
| 1 - 9 | R 713,36 |
| 10 - 19 | R 695,53 |
| 20 - 49 | R 674,66 |
| 50 - 99 | R 647,67 |
| 100 + | R 621,76 |
- RS stock no.:
- 883-7611
- Mfr. Part No.:
- T9-CS1-24
- Manufacturer:
- Otto
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
16A Sealed Switches (Screw terminal)
Built to MIL-DTL-3950
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac
IP68 Sealed
Electrical life 20000 min, Mechanical life 40000 cycles
Standard silver plated contacts
Fitted with large reliable screw terminals
Electrical rating 20A @ 28Vdc, 15A @ 115Vac
Specification
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Switch Operation | On-Off |
| Contact Current Rating | 15 A @ 115 V ac, 20 A @ 28 V dc |
| Mounting Type | Panel Mount |
| Terminal Type | Screw |
| IP Rating | IP68S |
| Panel Cut Out Diameter | 0.67mm |
| Actuator Length | 0.69in |
| Actuator Material | Stainless Steel |
| Voltage Rating | 28 V dc, 115V ac |
| Contact Material | Silver |
| Panel Cut Out Size | 0.67 (Dia.)mm |
| Mechanical Life | 40000Cycles |
| Operating Temperature Range | -65 → +71°C |
| Minimum Operating Temperature | -65°C |
| Standards Met | CSA, Reach, RoHS, UL, WEEE |
| Maximum Operating Temperature | +71°C |
