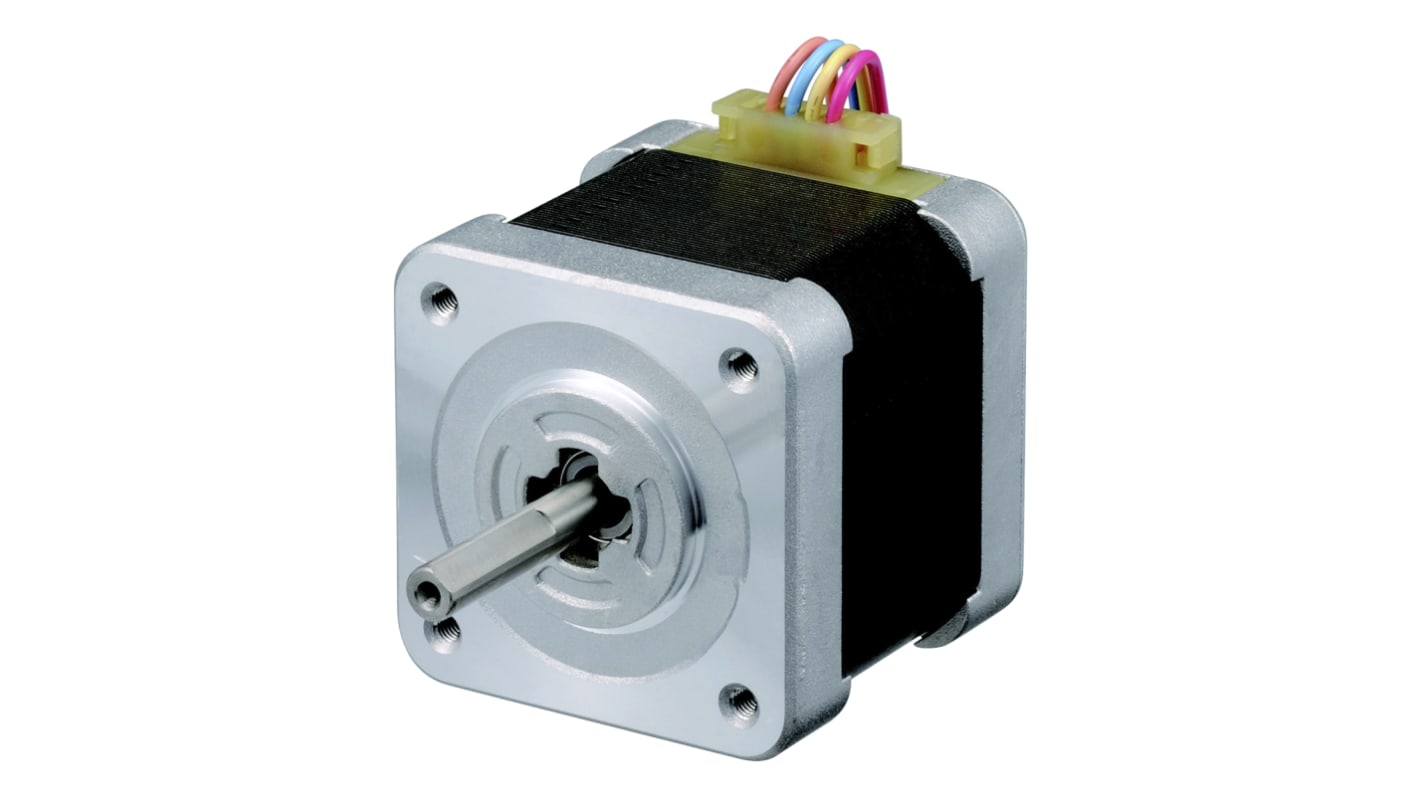

Sanyo Denki 103H5 Series Hybrid, Double Shaft Stepper Motor, 0.265Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft
- RS stock no.:
- 878-7758
- Mfr. Part No.:
- 103H5205-5210
- Manufacturer:
- Sanyo Denki
53 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 1 313,45
(exc. VAT)
R 1 510,47
(inc. VAT)
| Units | Per unit |
| 1 + | R 1 313,45 |
- RS stock no.:
- 878-7758
- Mfr. Part No.:
- 103H5205-5210
- Manufacturer:
- Sanyo Denki
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
Sanyo Denki Sanmotion 103H5 Series Stepper Motor
Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered
Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available
Sanyo Denki Stepper Motor
Specification
Attribute | Value |
|---|---|
| Stepper Motor Type | Hybrid, Double Shaft |
| Step Angle | 1.8° |
| Holding Torque | 0.265Nm |
| Number Of Wires | 6 |
| Supply Voltage | 24 V |
| Frame Size | 42 x 42mm |
| Shaft Diameter | 5mm |
| Current Rating | 1 A |
| Winding Arrangement | Bipolar |
| Shaft Length | 24mm |
| Depth | 34.5mm |
| Resistance Per Phase | 3.4Ω |
| Series | 103H5 |
| Standards Met | CE, UL, TUV, RoHS Compliant |
