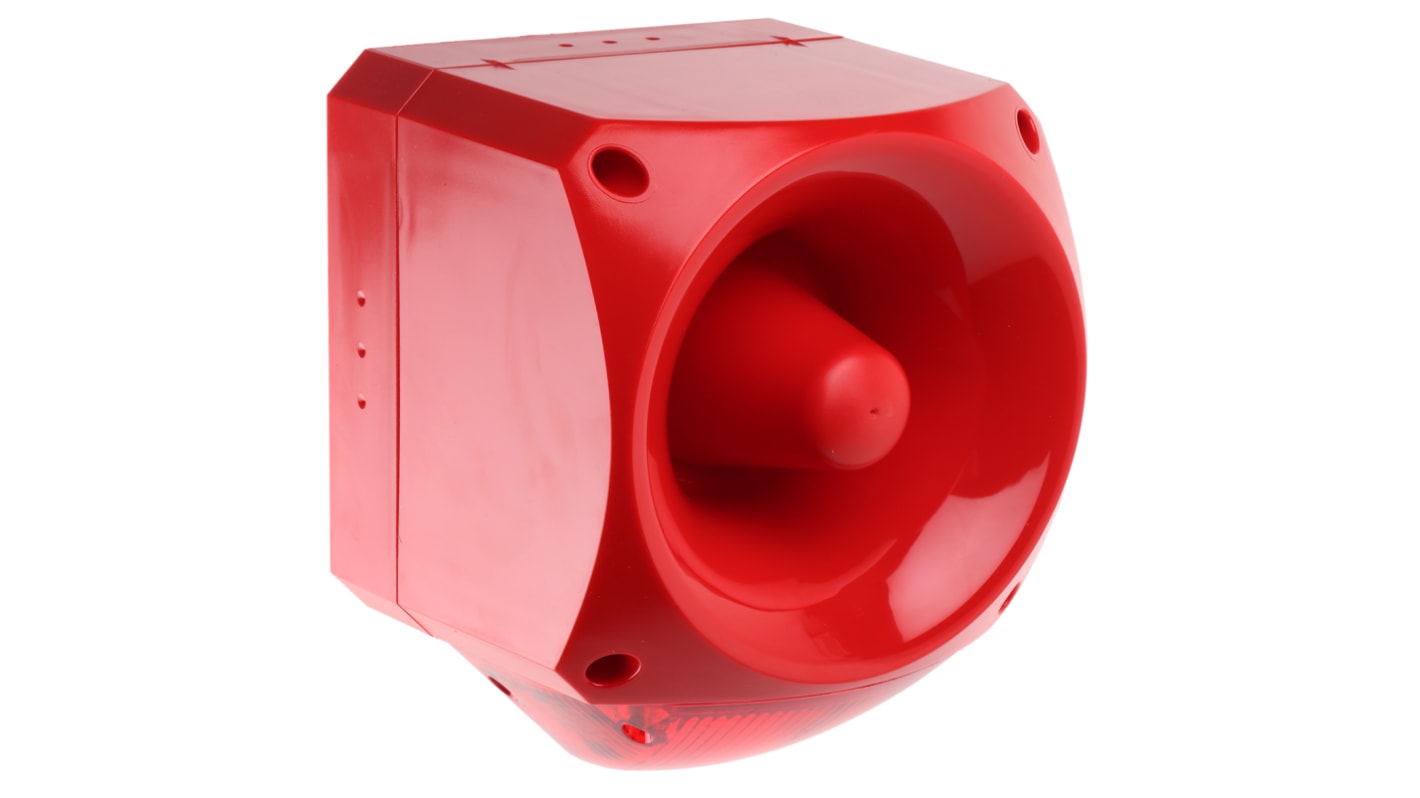

Klaxon Nexus 110 Series Red Sounder Beacon, 24 → 48 V ac, IP66, Base Mount, 116dB at 1 Metre
- RS stock no.:
- 907-6315
- Mfr. Part No.:
- PNC-0062
- Manufacturer:
- Klaxon
On back order for despatch 2024/05/17
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 4 477,47
(exc. VAT)
R 5 149,09
(inc. VAT)
| Units | Per unit |
| 1 + | R 4 477,47 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS stock no.:
- 907-6315
- Mfr. Part No.:
- PNC-0062
- Manufacturer:
- Klaxon
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Klaxon Sounder Beacon
The Klaxon nexus 110 sounder LED beacon is an AC sound signalling multi-purpose equipment with a red LED and a high sound output of 116dB. It has a separate connection for sounder and beacon. The head is fixed by quarter-turn fasteners to avoid four individual screws. This helps in faster installation and accurate seal compression for weatherproofing. The combination of a powerful sounder and high output beacon ensures a very effective audio-visual signal. This sounder beacon is designed for industrial applications.
Features and Benefits
The supply voltage is between 24VAC and 48VAC
64 different tones
Three-stage alarms
Low in-rush current
Static and flashing mode
Fire retardant red case
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
Volume control for greater flexibility -20dB
operating temperature ranges between -25°C and 55°C
64 different tones
Three-stage alarms
Low in-rush current
Static and flashing mode
Fire retardant red case
Quarter turn fasteners for ease of installation
First-fix, wire to base technology
Volume control for greater flexibility -20dB
operating temperature ranges between -25°C and 55°C
Applications
Conveyors
Process control alarm
Cranes
Moving machinery
General signalling and marine
Process control alarm
Cranes
Moving machinery
General signalling and marine
Certifications
IP66 rated
EN54 certified
EN54 certified
Specification
Attribute | Value |
|---|---|
| Supply Voltage | 24 → 48 V ac |
| Lens Colour | Red |
| Mounting Style | Base Mount |
| Current Type | AC |
| Light Effect | Flashing |
| Sounder Type | Electronic |
| Decibels at 1 Metre | 116dB |
| Series | Nexus 110 |
| Bulb Type | LED |
| Housing Colour | Red |
| IP Rating | IP66 |
| Number Of Tones | 64 |
| Special Features | Low Voltage AC Variant, Quarter Turn Fasteners for Ease of Installation, Three Alarm Stages |
| Maximum Temperature | +55°C |
| Housing Material | Polycarbonate |
| Minimum Temperature | -10°C |
