Wurth Elektronik 3.5mm Pitch 3 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination
- RS stock no.:
- 825-0859
- Mfr. Part No.:
- 691363110003
- Manufacturer:
- Wurth Elektronik
On back order for despatch 2024/05/13
Not Available for premium delivery
Price (Excl VAT) Each
R 35,79
(exc. VAT)
R 41,16
(inc. VAT)
| Units | Per unit |
| 1 - 9 | R 35,79 |
| 10 - 49 | R 34,90 |
| 50 - 99 | R 33,85 |
| 100 - 249 | R 32,50 |
| 250 + | R 31,20 |
- RS stock no.:
- 825-0859
- Mfr. Part No.:
- 691363110003
- Manufacturer:
- Wurth Elektronik
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

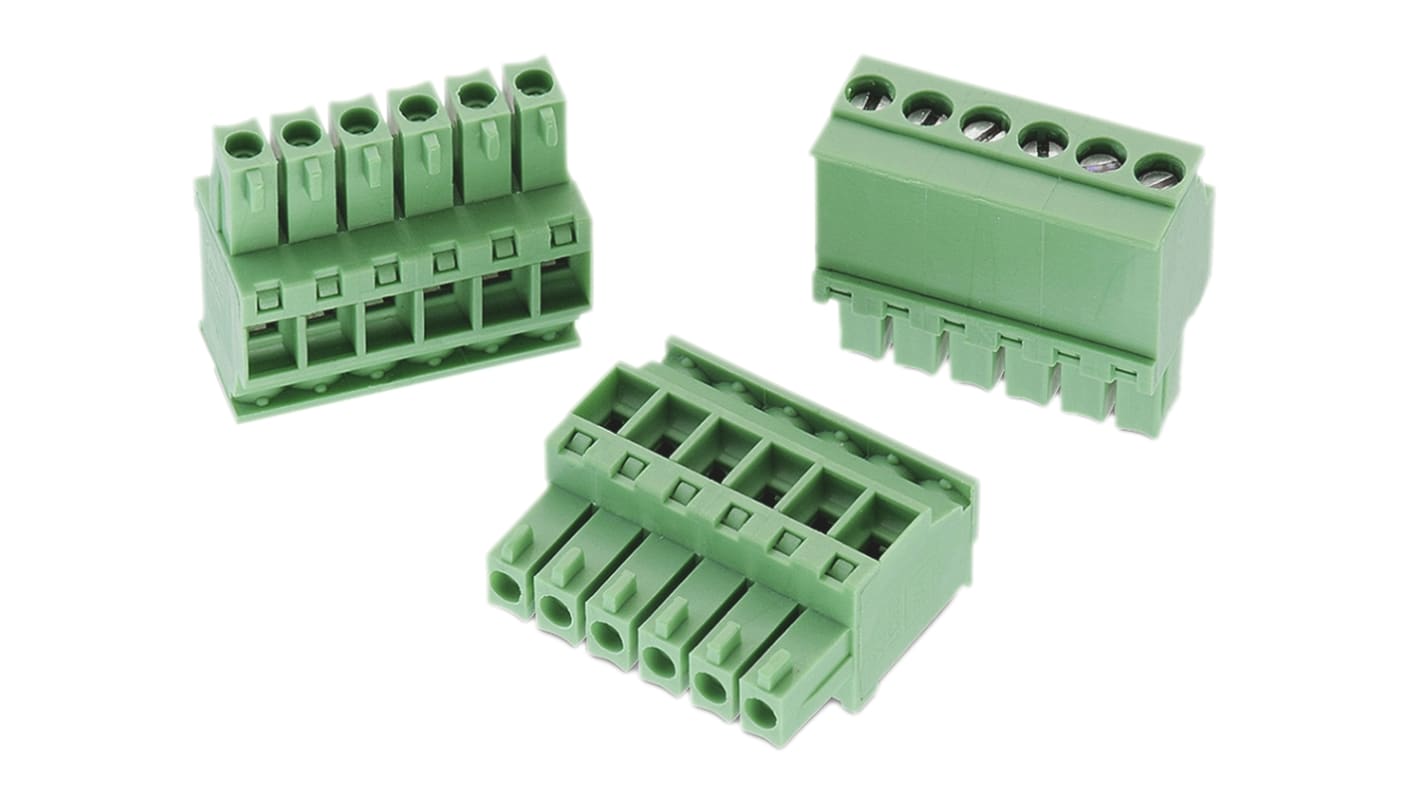

Wurth WR-TBL 3631 Series 3.50mm Pitch Right Angle Terminal Block Plug Connectors with Retention Latch
WR-TBL 3631 series 3.5mm pitch right angle cable mount terminal block plug connectors with female sockets, a retention latch on the wire side and a 'slot' type M2 screw terminal that accepts a wire size of AWG 28-16. These WR-TBL 3631 series 3.50mm pluggable terminal block cable mount connectors are made from green UL94-V0 PA66 and have a tin plated phosphor bronze wire guard.
3.5mm Pitch - Wurth
Specification
Attribute | Value |
|---|---|
| Pluggable Terminal Block Type | Plug |
| Number of Contacts | 3 |
| Pitch | 3.5mm |
| Series | 3631 |
| Number of Rows | 1 |
| Body Orientation | Straight |
| Mounting Type | Cable Mount |
| Termination Method | Screw |
| Current Rating | 10A |
| Voltage Rating | 300 V ac |
| Colour | Green |
| Material | Polyamide |
