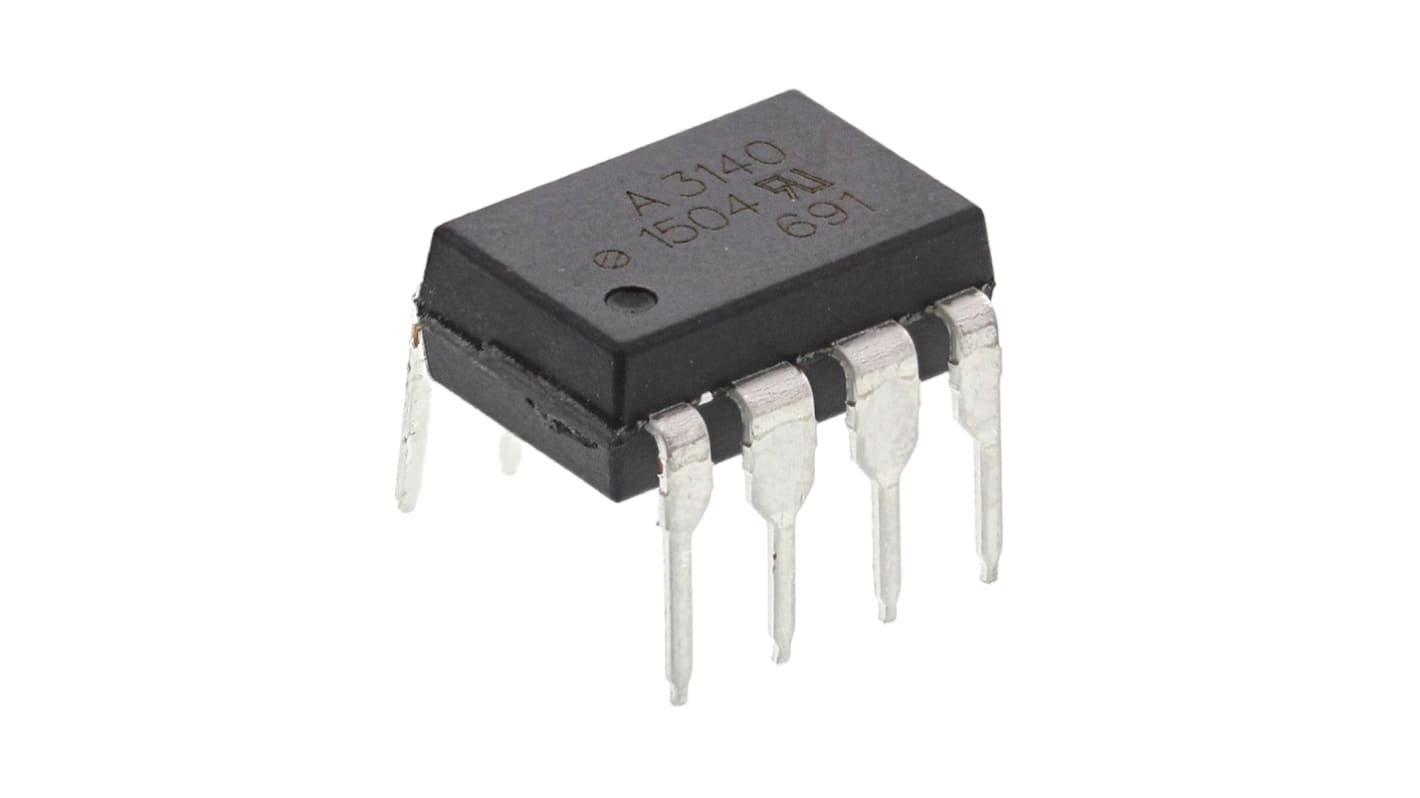

Broadcom, HCPL-3140-000E DC Input Transistor Output Optocoupler, Through Hole, 8-Pin DIP
- RS stock no.:
- 178-3146
- Mfr. Part No.:
- HCPL-3140-000E
- Manufacturer:
- Broadcom
On back order for despatch 2024/09/27
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Tube of 50)
R 28,642
(exc. VAT)
R 32,938
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 + | R 28,642 | R 1 432,10 |
| *price indicative | ||
- RS stock no.:
- 178-3146
- Mfr. Part No.:
- HCPL-3140-000E
- Manufacturer:
- Broadcom
Technical data sheets
Legislation and Compliance
Product Details
Isolated Gate Driver Optocouplers, Broadcom
The Broadcom optically isolated gate drive devices are optimised for driving IGBT and Power MOSFET transistors. The optocouplers exhibit rail-to-rail output, fast gate switching speed, high Common Mode Rejection (CMR) and reinforced insulation.Broadcom R2Coupler™ isolation products provide the reinforced insulation and reliability needed for critical automotive and high temperature applications.
The isolated gate driver optocouplers are ideal for use in motor control and power conversion applications. This is a solution where the logic signals is isolated and protected from high voltages.
The isolated gate driver optocouplers are ideal for use in motor control and power conversion applications. This is a solution where the logic signals is isolated and protected from high voltages.
Optocouplers, Avago Technologies
Specification
Attribute | Value |
|---|---|
| Mounting Type | Through Hole |
| Output Device | Transistor |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Package Type | DIP |
| Input Current Type | DC |
| Typical Rise Time | 50ns |
| Maximum Input Current | 12 mA |
| Isolation Voltage | 3.75 kVrms |
| Logic Output | Yes |
| Typical Fall Time | 50ns |
