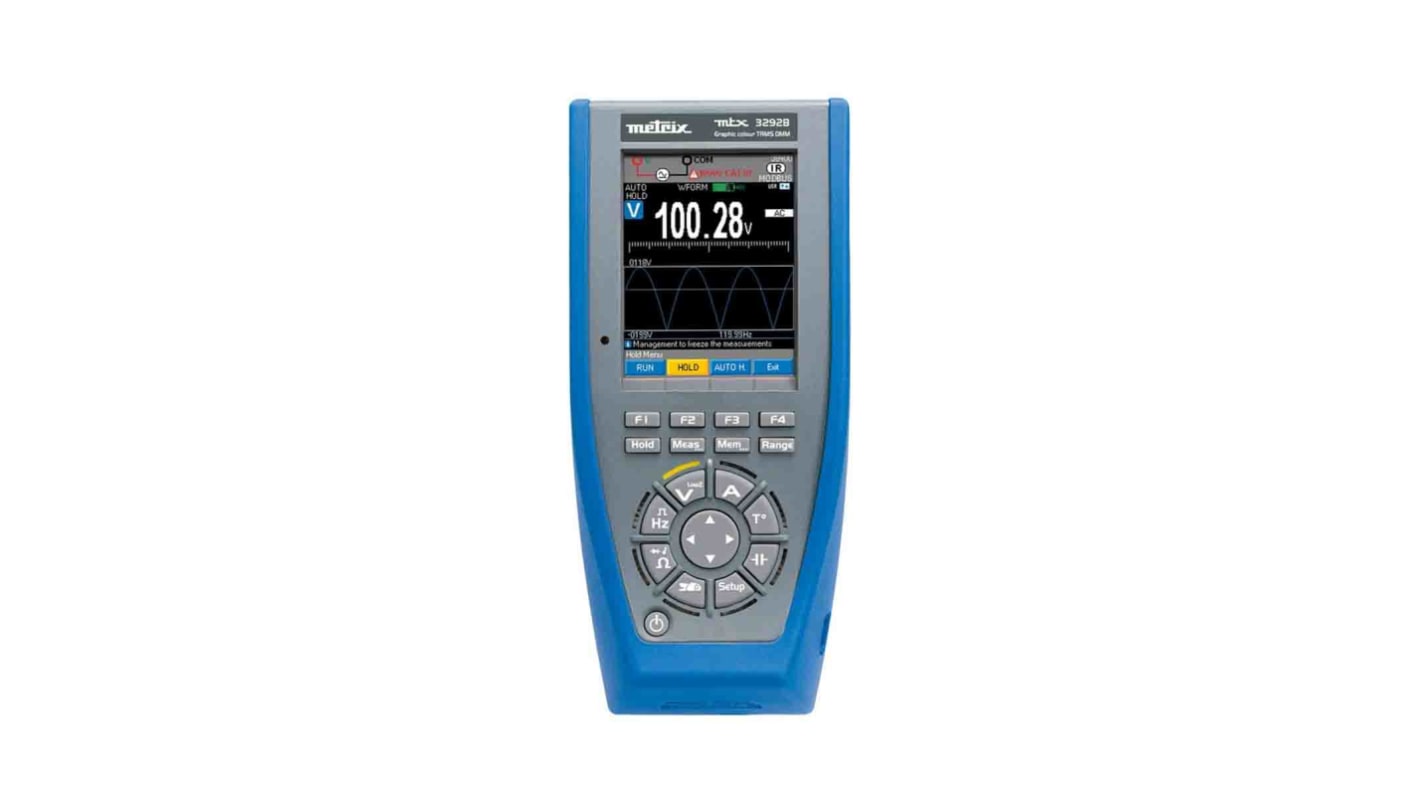

Metrix MTX 3292B Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max
- RS stock no.:
- 823-2716
- Mfr. Part No.:
- MTX3292B
- Manufacturer:
- Metrix
12 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Total Price (1 Units)
R 15,336.10
(exc. VAT)
R 17,636.52
(inc. VAT)
Not Available for premium delivery
| Units | Per unit |
| 1 + | R 15 336,10 |
- RS stock no.:
- 823-2716
- Mfr. Part No.:
- MTX3292B
- Manufacturer:
- Metrix
Not Applicable
- COO (Country of Origin):
- FR
MTX3292 and MTX3292B Series (ASYC IV) Recorder-Multimeter
MTX3292 and MTX3292B digital display multimeters are used in total safety within both electronics and electrical engineering. The MTX3292 provides direct measurement of the main electrical quantities they are compact, rugged leak proof and comfortable to hold. An easy to use multimeter with the strength being the HMI, advanced measurement functions and the measurement help provided. A large LCD display, digital keyboard and lighting all in an IP67 casing.
Features and Benefits:
Large backlit colour graphical LCD, 320 x 240 pts (70 x 52 mm)
Graphical display, monitoring, storage, specifications on 4 measurement levels (1 main and 3 secondary) simultaneously
Digital switch with lighting of main function keys (8 positions)
Storage: 1000 measurements
DC, AC and AC+DC voltage
DC, AC and AC+DC current
Frequency
Resistance and continuity
Diode test
Temperature with Pt100 / 1000 and K / J TC
Protection: IP67
Communication: IR / USB
Graphical display, monitoring, storage, specifications on 4 measurement levels (1 main and 3 secondary) simultaneously
Digital switch with lighting of main function keys (8 positions)
Storage: 1000 measurements
DC, AC and AC+DC voltage
DC, AC and AC+DC current
Frequency
Resistance and continuity
Diode test
Temperature with Pt100 / 1000 and K / J TC
Protection: IP67
Communication: IR / USB
Added Benefits:
Graphical display of the trends for each measurement function
Multiple analytical tools
Trace, cursors and zoom on the recordings
Recording of 10 sequences
Surveillance of the MIN/MAX and AVG data with relative time/date stamping and of voltage and current peaks
Storage of up to 1000 measurements
Contextual reminder of the connections
Normal USB communication or Bluetooth available options
IP67 Protection against water projection and dust, excellent for outdoor environments
Power Supply:
4 x Ni-MH batteries
100 Hours operation time on batteries with battery management
Multimeter operates whilst charging
What Is Included?
Multimeter
4 x Ni-MH rechargeable batteries, 2400 mAH 1.5 V
Cable 1.5 m long, straight/straight red
Cable 1.5 m long, straight/straight black
Red CAT IV 1 kV test probe
Black CAT IV 1 kV test probe
USB Optical cable + SX-DMM software
User guide on CD and paper start-up guide
Standards
IEC 61010-1, Cat III 1000 V, Cat IV 600 V, EN61326-1
Attribute | Value |
|---|---|
| Multimeter Type | Handheld |
| Model Number p | MTX 3292B |
| Display Type | Digital |
| Functions Measured | AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Filter MLI, Frequency, GRAPH, MAX/MIN/AVG Monitoring, REL, Resistance, Secondary Measurements, SPEC, Temperature |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum AC Voltage Measurement | 1000V ac |
| Absolute Maximum AC Current Measurement | 10A ac |
| Absolute Maximum DC Current Measurement | 10A dc |
| Absolute Maximum Temperature Measurement | +1200 (KTC) °C, +800 (pT) °C |
| Absolute Maximum Capacitance Measurement | 10mF |
| Maximum Frequency | 5MHz |
| DC Current Measurement Resolution | 10nA dc |
| AC Current Measurement Resolution | 10nA ac |
| DC Voltage Measurement Resolution | 1µV dc |
| AC Voltage Measurement Resolution | 1µV ac |
| Resistance Measurement Resolution | 1mΩ |
| Capacitance Measurement Resolution | 1pF |
| Safety Category Level | CAT III, CAT IV |
| Battery Type | AA, NiMH |
| Best Resistance Measurement Accuracy | 0.07% + 8 digits |
| Maximum Operating Temperature | +40°C |
| Minimum Operating Temperature | 0°C |
| Height | 47.1mm |
| Best Temperature Measurement Accuracy | +0.5 % |
| Best AC Voltage Accuracy | 0.3% + 50 digits |
| Best Capacitance Measurement Accuracy | 1% + 8 digits |
| Best AC Current Accuracy | 0.3% + 50 digits |
| Width | 90mm |
| Length | 196mm |
| Dimensions | 196 x 90 x 47.1mm |
| Best DC Voltage Accuracy | 0.03% + 8 digits |
| Weight | 570g |
| Best DC Current Accuracy | 0.08% + 8 digits |
| Safety Category Voltage | 600 V, 1000V |
