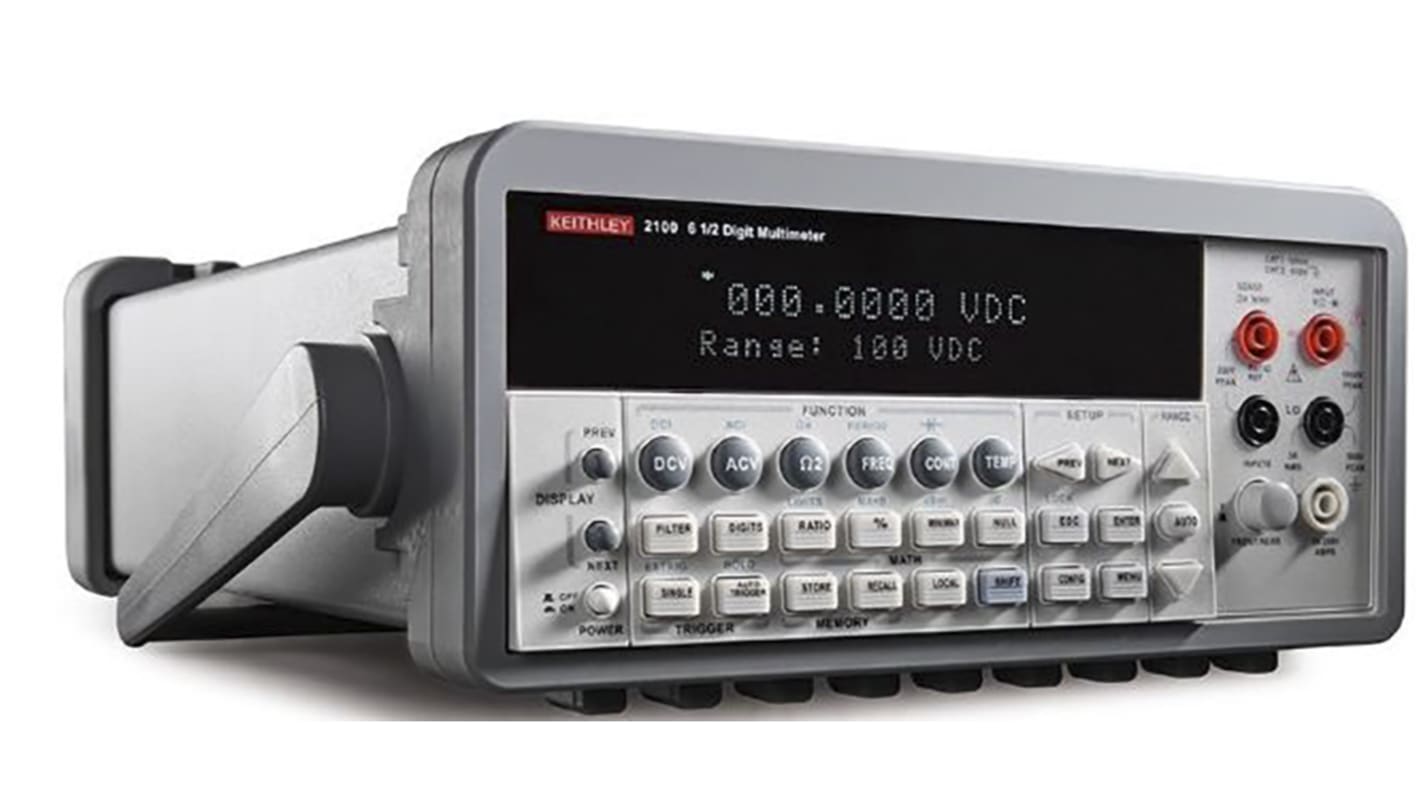

Keithley 2100/230-240 Bench Digital Multimeter, 3A ac Max, 3A dc Max, 750V ac Max
- RS stock no.:
- 760-0290
- Mfr. Part No.:
- 2100/230-240
- Manufacturer:
- Keithley
9 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
23 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 27 231,58
(exc. VAT)
R 31 316,32
(inc. VAT)
| Units | Per unit |
| 1 + | R 27 231,58 |
- RS stock no.:
- 760-0290
- Mfr. Part No.:
- 2100/230-240
- Manufacturer:
- Keithley
Technical data sheets
Legislation and Compliance
Exempt
- COO (Country of Origin):
- TW
Product Details
Keithley 2100 6-digit USB Digital Multimeter
The 2100 6-digit USB digital multimeter offers the combination of high performance and accuracy (38 ppm) appropriate for making critical measurements. It has 0.0038% 1-year basic DC voltage accuracy on the 10V range and 0.013% 1-year basic resistance accuracy on the 10kΩ range. At 6 digits the 2100 delivers 50 triggered readings per second via the USB remote interface. At the fast 4 digit setting, the 2001 reads more than 2000 readings per second into its 2000 reading internal buffer.
The 2100 is rugged comes with removable rubber bumpers and a sturdy handle making it durable and portable for use in various ranges of test settings. The low cost and high precision makes this instrument ideal for R and D engineers, scientists and students and can be used as a bench top digital multimeter or in a system application.
The 2100 is quick to set up and also easy to use, due to its high contrast front panel and keypad. Each function can be distinguished by its colour.
Features and Benefits
Cost-effective critical measurements
11 measurement and 8 math functions
Resistance measuring range 100 Ω → 100 MΩ
Frequency measuring range 3 Hz → 300 kHz
Temperature measuring range -100 to +630°C
Fully specified accuracies on all functions for ISO-compliant results
TMC-compliant USB 2.0 interface for use with SCPI test programs
Includes PC software utilities for graphing and data sharing
Rugged construction for durability in bench and portable applications
Selectable front/rear inputs facilitate bench or rack use
11 measurement and 8 math functions
Resistance measuring range 100 Ω → 100 MΩ
Frequency measuring range 3 Hz → 300 kHz
Temperature measuring range -100 to +630°C
Fully specified accuracies on all functions for ISO-compliant results
TMC-compliant USB 2.0 interface for use with SCPI test programs
Includes PC software utilities for graphing and data sharing
Rugged construction for durability in bench and portable applications
Selectable front/rear inputs facilitate bench or rack use
Applications
Test Engineers - Manual and semi-automatic electrical functional test
Development Engineers - Electrical/electronic circuit and product validation
Service/Calibration Technicians - Electronic product repair and calibration
Research Scientists - Electrical and physics research
Engineering Students - Electronic device and circuits experiment testing
Development Engineers - Electrical/electronic circuit and product validation
Service/Calibration Technicians - Electronic product repair and calibration
Research Scientists - Electrical and physics research
Engineering Students - Electronic device and circuits experiment testing
Supplied with
Instruction manual on CD, specifications, LabVIEW driver, I/O layer, USB cable, power cable, safety test leads, KI-tool and KI-link (both Microsoft Word and Excel versions)
Keithley
Specification
Attribute | Value |
|---|---|
| Multimeter Type | Bench |
| Display Type | Digital |
| Model Number p | 2100/230-240 |
| Functions Measured | AC Current, AC Voltage, DC Current, DC Voltage, Resistance, Temperature |
| Absolute Maximum AC Voltage Measurement | 750V ac |
| Absolute Maximum DC Voltage Measurement | 1000V dc |
| Absolute Maximum DC Current Measurement | 3A dc |
| Absolute Maximum Resistance Measurement | 100MΩ |
| Absolute Maximum AC Current Measurement | 3A ac |
| Absolute Maximum Temperature Measurement | +630°C |
| Maximum Frequency | 300kHz |
| DC Current Measurement Resolution | 10nA dc |
| AC Current Measurement Resolution | 1µA ac |
| DC Voltage Measurement Resolution | 0.1µV dc |
| Resistance Measurement Resolution | 100mΩ |
| AC Voltage Measurement Resolution | 0.1µV ac |
| Temperature Measurement Resolution | 0.001°C |
| Weight | 4.1kg |
| Best DC Current Accuracy | ±0.0055% + 0.025 |
| Best Resistance Measurement Accuracy | ±1% + 0.02 |
| Maximum Operating Temperature | +40°C |
| Best AC Current Accuracy | ±1.25% + 0.07 |
| Dimensions | 112 x 256 x 375mm |
| Best DC Voltage Accuracy | ±0.0055% + 0.001 |
| Best Temperature Measurement Accuracy | ±0.2 °C |
| Best AC Voltage Accuracy | ±4.35% + 0.5 |
| Minimum Operating Temperature | +5°C |
