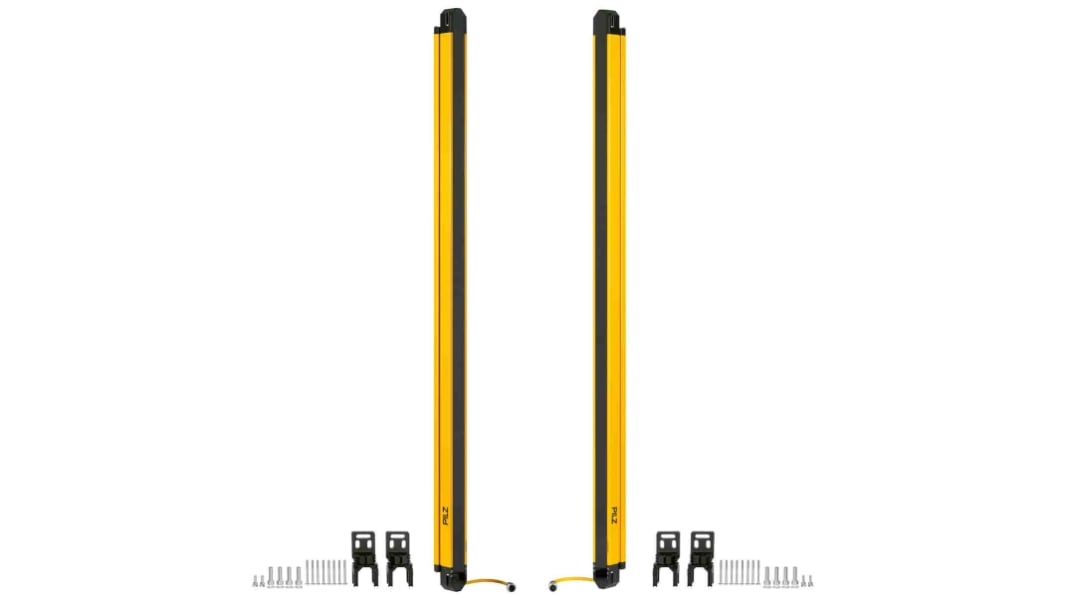

Pilz PSEN opII4H Series Light Curtain Receiver, Transmitter, 30mm Resolution
- RS stock no.:
- 191-9845
- Mfr. Part No.:
- 632065
- Manufacturer:
- Pilz
17 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each
R 45 136,78
(exc. VAT)
R 51 907,30
(inc. VAT)
| Units | Per unit |
| 1 + | R 45 136,78 |
- RS stock no.:
- 191-9845
- Mfr. Part No.:
- 632065
- Manufacturer:
- Pilz
Technical data sheets
Legislation and Compliance
Not Applicable
- COO (Country of Origin):
- CH
Product Details
"Infrared protected field is generated LED indicator for status information Optical synchronisation of transmitters and receivers Aluminium alloy housing Die-cast zinc end caps Shock resistance "
Specification
Attribute | Value |
|---|---|
| Series | PSEN opII4H |
| Beam Resolution | 30mm |
| Component Type | Receiver, Transmitter |
| Safety Type | 4 |
| PL EN ISO 13849-1 | e |
| Protective Height | 900mm |
| Minimum Scanning Distance | 0.2m |
| Maximum Scanning Distance | 18m |
| Maximum Response Time | 15.2 ms |
| Supply Voltage | 24 V dc |
| Height | 904mm |
| Length | 35mm |
| Width | 40mm |
| Application | Industrial |
| Features | Infrared Protected Field is Generated, Led Indicator for Status Information, Optical Synchronisation of Transmitters and Receivers, Aluminium Alloy Housing, Die-Cast Zinc End Caps |
| Terminal Type | 5-Pin M12 Connector |
| Dimensions | 35 x 40 x 904 mm |
