Infineon CDM10V2XTSA1 Lighting Controller, 25 V 5mA
- RS stock no.:
- 258-0785P
- Mfr. Part No.:
- CDM10V2XTSA1
- Manufacturer:
- Infineon
2990 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Price (Excl VAT) Each (Supplied on a Reel) Quantities below 150 on continuous strip
R 8,40
(exc. VAT)
R 9,66
(inc. VAT)
| Units | Per unit |
| 20 - 90 | R 8,40 |
| 100 - 240 | R 8,148 |
| 250 - 490 | R 7,822 |
| 500 + | R 7,509 |
- RS stock no.:
- 258-0785P
- Mfr. Part No.:
- CDM10V2XTSA1
- Manufacturer:
- Infineon
Technical data sheets
Legislation and Compliance
Product Details

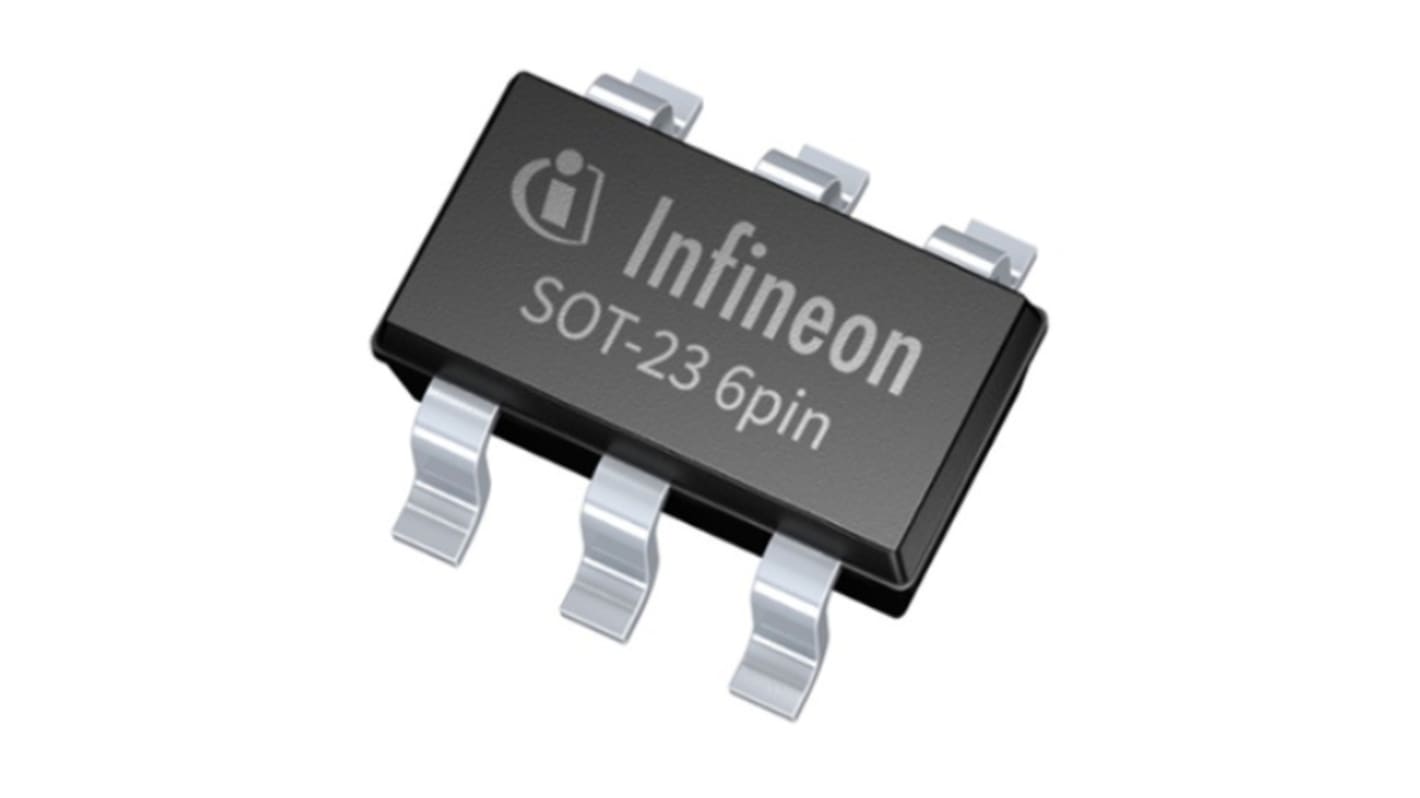

The Infineon flexible 0-10V dimming solution is a fully integrated 0-10 V dimming interface IC and comes in a SOT-23-6 package to cover space requirements on small PCBs. The device is targeted for various dimming applications in lighting. The IC can be used to transmit analogue voltage based signals from a 0-10 V dimmer or potentiometer to the dimming or PWM input of a lighting controller IC in the form of a 5 mA current based PWM signal to drive an external opto-coupler. It replaces many components in a traditional solution and reduces BOM and PCB space significantly.
Wide input Vcc range from 11 to 25 V
Replaces many external components with a single chip reducing BOM and PCB space
Minimum variation from device to device
Replaces many external components with a single chip reducing BOM and PCB space
Minimum variation from device to device
Specification
Attribute | Value |
|---|---|
| Output Current | 5mA |
| Input Voltage | 25 V |
| Dimming Operation | 1-10 V |
