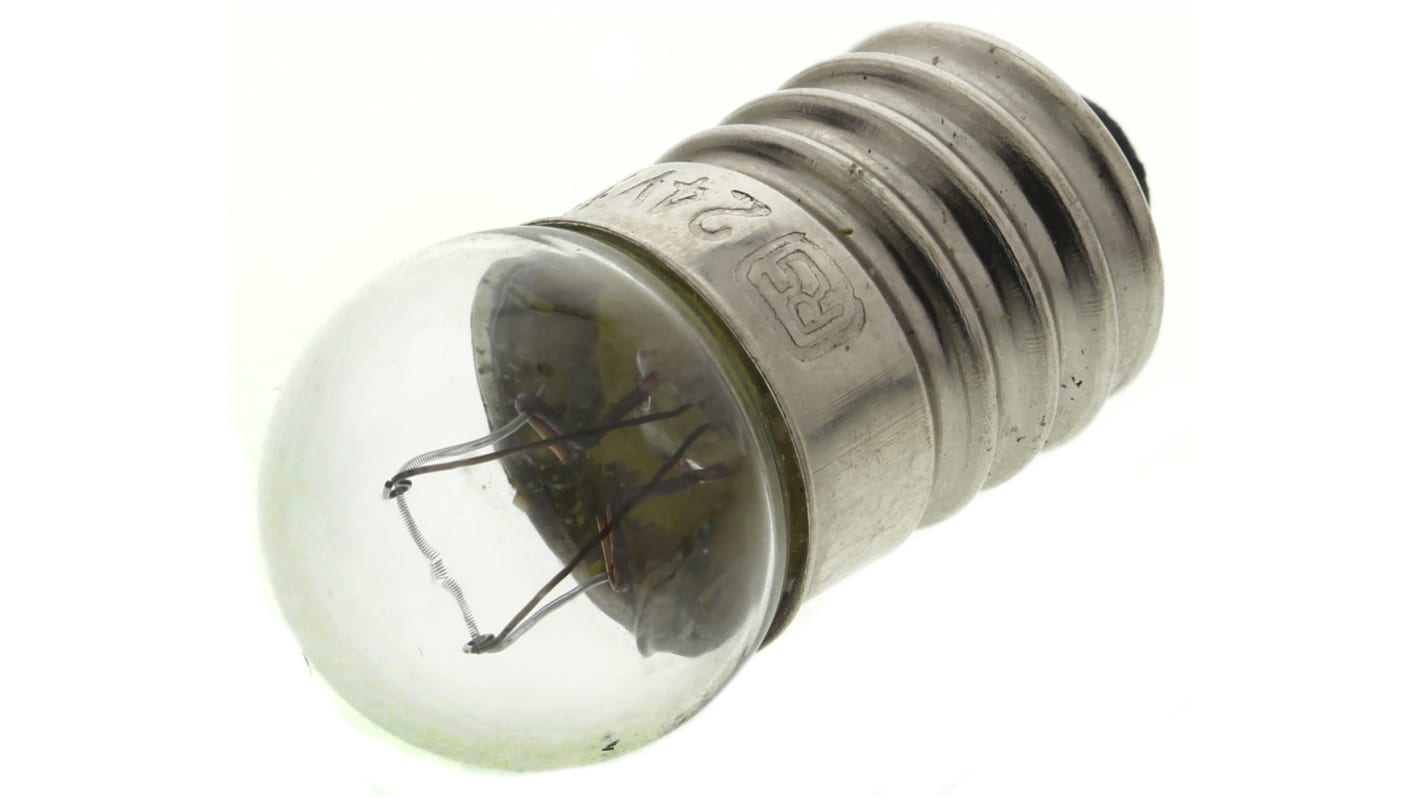

RS PRO E10 Indicator Light, Clear, 24 V, 116 mA, 3000h
- RS stock no.:
- 655-9508
- Manufacturer:
- RS PRO
930 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Price (Excl VAT) Each (In a Pack of 10)
R 21,189
(exc. VAT)
R 24,367
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 140 | R 21,189 | R 211,89 |
| 150 - 490 | R 20,659 | R 206,59 |
| 500 - 990 | R 20,039 | R 200,39 |
| 1000 - 2490 | R 19,237 | R 192,37 |
| 2500 + | R 18,468 | R 184,68 |
| *price indicative | ||
- RS stock no.:
- 655-9508
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- KR
Product Details
G-3 (11mm) Round MES
Screw (LES, MES, SES)
Filament lamps will perform to specification and give optimum life when: they are powered at the rated voltage from a stabilised 50Hz ac supply; the ambient temperature is in the range +20°C to +25°C; and where no mechanical vibration is present.
Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80mA).
Operation from a DC supply at rated voltage can reduce specified life by up to 50%. The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care should therefore be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
Conversion of light output units: Lumens = MSCP x 12.6, MSCP = Lumens / 12.6.
Deviations from these criteria can have a significant effect on lamp life, particularly with low current filaments (<80mA).
Operation from a DC supply at rated voltage can reduce specified life by up to 50%. The effect of variation from the rated operating voltage should be noted: 5% above will reduce lamp life by up to 50%. 5% below will significantly increase lamp life. Current consumption can vary by up to ±10% on stated values at rated supply voltage. Care should therefore be exercised when running a number of lamps in series. In such applications it is recommended that the rated voltage be reduced by 10% to prevent premature failure of individual lamps.
Conversion of light output units: Lumens = MSCP x 12.6, MSCP = Lumens / 12.6.
Specification
Attribute | Value |
|---|---|
| Voltage Rating | 24 V |
| Lamp Base | E10 |
| Current Rating | 116 mA |
| Diameter | 11.5mm |
| Lamp Size | G3 1/2 |
| Length | 25 mm |
| Lens Colour | Clear |
| Luminosity | 11 lm |
| Life Hours | 3000h |
