PQ50 Male 6A Crimp Contact Minimum Wire Size 0.75mm² Maximum Wire Size 1.25mm² for use with Heavy Duty Power Connector
- RS stock no.:
- 176-6323
- Mfr. Part No.:
- PQ50-1618PCFA
- Manufacturer:
- Hirose
2490 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Pack of 10)
R 20,18
(exc. VAT)
R 23,21
(inc. VAT)
| Units | Per unit | Per Pack* |
| 10 - 90 | R 20,18 | R 201,80 |
| 100 - 240 | R 19,676 | R 196,76 |
| 250 - 990 | R 19,086 | R 190,86 |
| 1000 - 2490 | R 18,323 | R 183,23 |
| 2500 + | R 17,59 | R 175,90 |
| *price indicative | ||
- RS stock no.:
- 176-6323
- Mfr. Part No.:
- PQ50-1618PCFA
- Manufacturer:
- Hirose
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

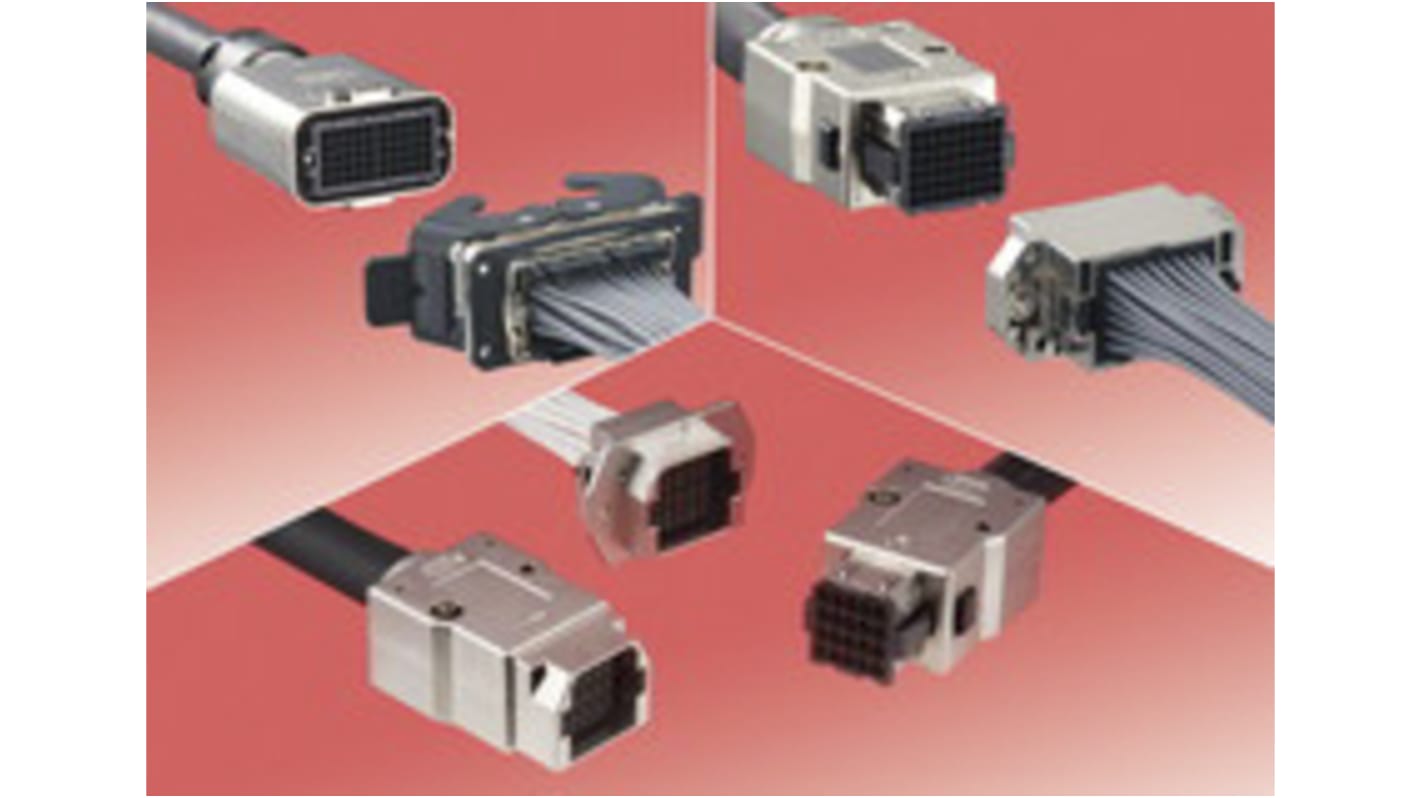

The PQ series is an interface connector designed to handle high power/signal connections in industrial machinery. Available in a water-resistant or non-water-resistant type, they are capable of handling up to 12.5A/ pin (PQ50S and PQ50W) or 19A/pin (PQ50). Features: PQ50 and PQ50S Series [ Non water-resistant type ] Side locking spring structure delivers a clear tactile Click: The left and right buttons disengage the mated lock. (Side locking system). The easy mating operation delivers a clear tactile click. Strengthened cable clamps: Cable clamp strength is 98N or more. (* Actual is 400N or more.) The structure will prevent the mated connector and clamp from detaching against excessive forces.
Specification
Attribute | Value |
|---|---|
| Series | PQ50 |
| Accessory Type | Crimp Contact |
| For Use With | Heavy Duty Power Connector |
| Voltage Rating | 600 V ac/dc |
| Current Rating | 6A |
| Minimum Wire Size mm² | 0.75mm² |
| Maximum Wire Size mm² | 1.25mm² |
| Gender | Male |
| Size | 27.15 x 3 x 4.55 mm |
| Termination Method | Crimp |
